1. Open the quick-release lever. Insert the seat post into the seat
tube of the frame.
2. Adjust the height of the seat. Do not raise the seat post beyond
the minimum insertion marking on the seat post.
3. Tighten the nut on the quick release until the lever becomes
firm to close. Close the quick-release lever by your palm or finger.

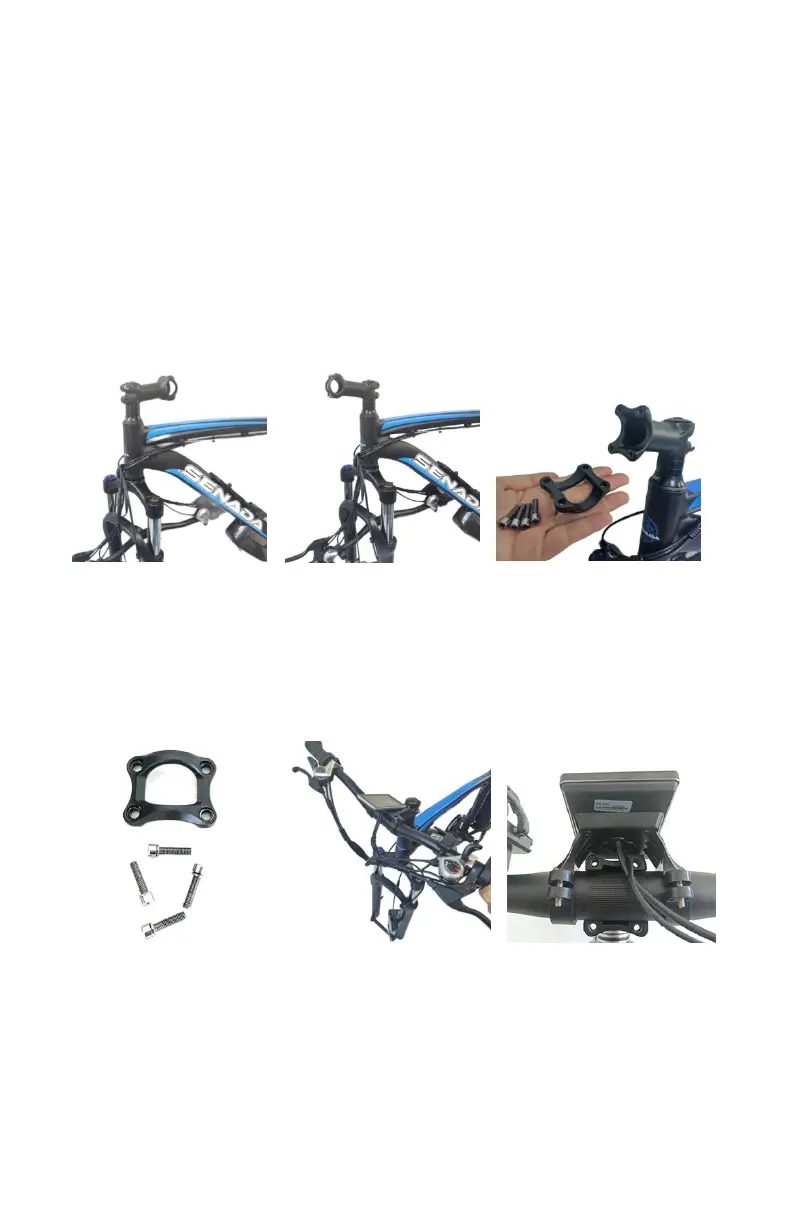

Handlebar
1. Turn the stem to the front. Make sure that the front fork
does not turn with the stem, so the front fork arch is at the
front of the bike, not at the back.
2. Remove the faceplate of the stem.
3. Ensure that the cables run cleanly from the handlebar and are
not twisted. Do not remove or detach the cables.
4. Insert the handlebar then reattach the faceplate of the stem.
