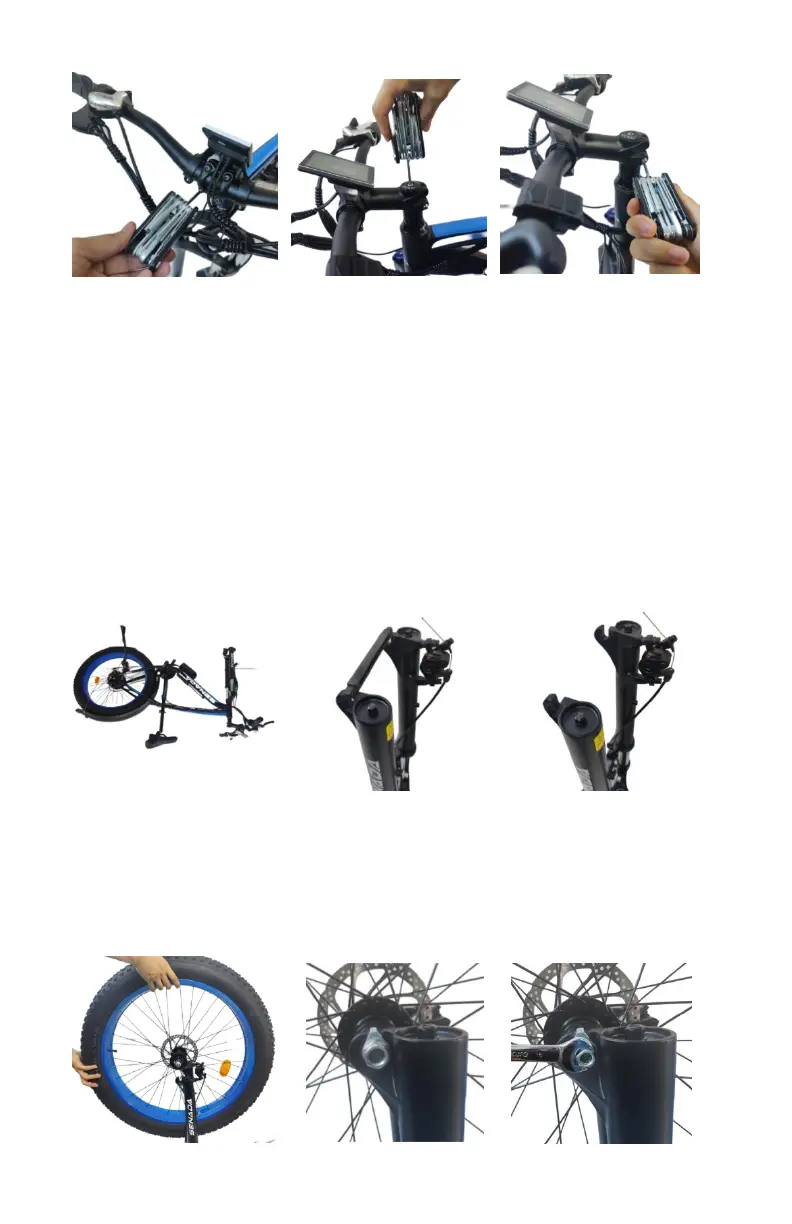

5. Tighten the screws on the faceplate. Alternate between the
screws to ensure that the faceplate has a consistent gap from the
stem along all edges and is securely tightened. The handlebar
should be aligned so that once the front wheel is installed, the
brake levers are at a 45-degree angle to the ground.
6. Tighten the screw under the black rubber cover on the top of
the fork.
7. Align the stem with the front fork and tighten the two screws
on the stem.
Front Wheel
1. Turn the bike upside down on the ground. Place soft foam
under the handlebar to prevent crushing the display and other
parts.
2. Remove the plastic rod between the hooks at the bottom of the
front fork. Remove the nuts and washers from both sides of the
front wheel.
