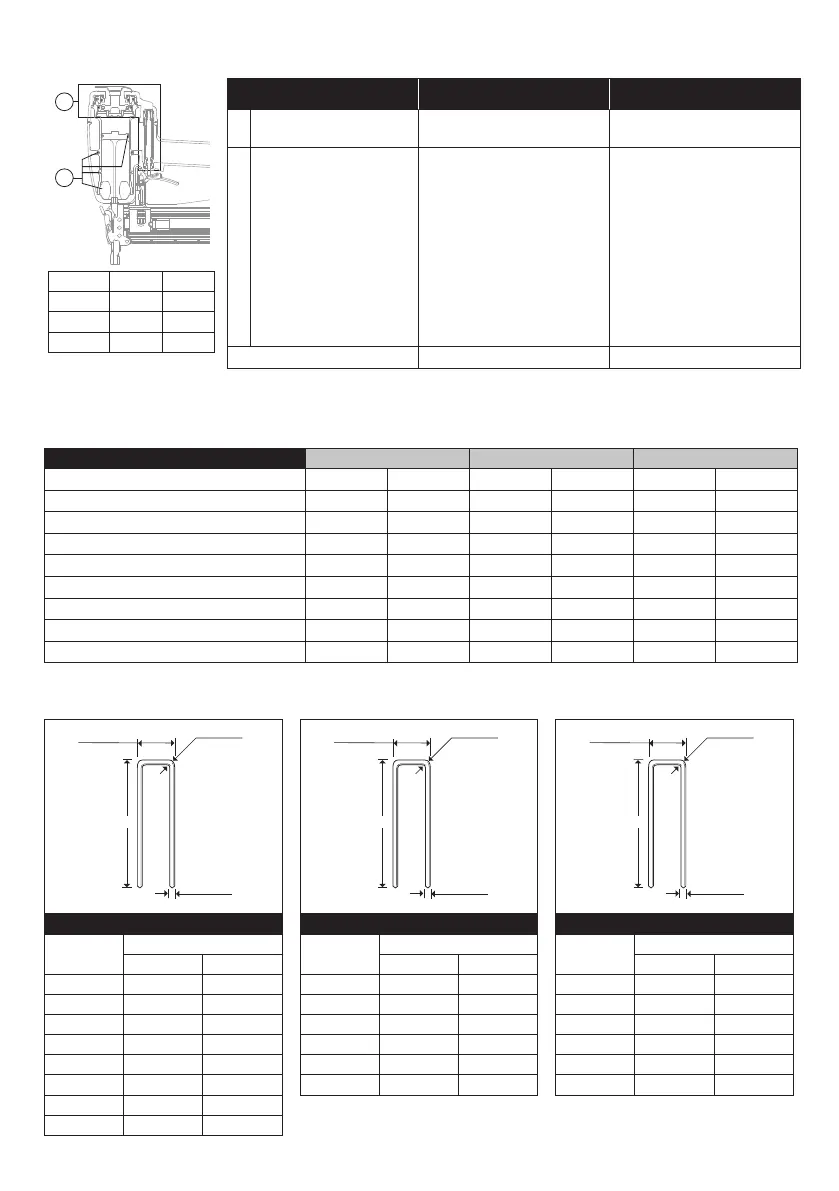

Senco SNS45XP - Page 11

Troubleshooting
2
1
Problem/Symptom Potential Cause Corrective Action
①
Air leak near top of tool /
Sluggish operation
Firing valve seal Verify air supply / Tighten screws
or install Parts Kit A
②
Air leak near bottom of tool /
Poor return
Piston stop/Piston seal Check for piston seal or sleeve
wear
If parts are worn or damaged,
parts are detailed in the parts
chart
Clean tool / Tighten screws or
install Parts Kit B
KIT No. A B
SNS45XP YK0230 YK0231
SNS50XP YK0375 YK0375
SQS55XP YK0375 YK0375
Other problems Contact SENCO
Technical Specifications
Technical SpecificaTionS SnS45Xp SnS50Xp SQS55Xp
Minimum to maximum operating pressure
80–120 psi 5,5–8,3 bar 80–120 psi 5,5–8,3 bar 80–120 psi 5,5–8,3 bar
Air Consumption (60 cycles per minute)
5.52 scfm 156 liter 6.54 scfm 185 liter 6.54 scfm 185 liter
Air Inlet
3/8 in. NPT 3/8 in. NPT 3/8 in. NPT 3/8 in. NPT 3/8 in. NPT 3/8 in. NPT
Maximum speed (cycles per second)
15 15 15 15 15 15
Weight
5.1 lbs. 2,3 kg 5.9 lbs. 2,7 kg 5.9 lbs. 2,7 kg
Fastener Capacity
160 160 160 160 130 130
Tool size: Height
11 in. 279 mm 12 in. 305 mm 12 in. 305 mm
Tool size: Length
14 in. 356 mm 14 3/8 in. 365 mm 14 3/8 in. 365 mm
Tool size: Width: Main Body
3 1/2 in. 90 mm 3 5/8 in. 92 mm 3 5/8 in. 92 mm
Fastener Specifications
11,1 mm
.062"
1,57 mm
1,40 mm
A
7/16"
.055"
11,1 mm
.062"
1,57 mm
1,40 mm
A
7/16"
.055"
7/16"
11,1 mm
.074"
1,88 mm
1,70 mm
A
.067"
SnS45Xp SnS50Xp SQS55Xp
FASTENER
CODE
A
FASTENER
CODE
A
FASTENER
CODE
A
Inches mm Inches mm Inches mm
N13 1 25 N15 1 1/4 32 Q15 1 1/4 32
N14 1 1/8 29 N16 1 3/8 35 Q17 1 1/2 38
N15 1 1/4 32 N17 1 1/2 38 Q19 1 3/4 44
N16 1 3/8 35 N18 1 5/8 41 Q21 2 50
N17 1 1/2 38 N19 1 3/4 44 Q23 2 1/4 57
N18 1 5/8 41 N21 2 50 Q25 2 1/2 65
N19 1 3/4 44
N21* 2 50
*SOFTWOOD APPLICATION ONLY
