EN-7
Note:
- Only use groundless loudspeakers.
- Use only loudspeakers of minimal 30Watt, using fewer watts may result in damaging your loudspeakers at higher
volumes.
- Use 4~8 Ω (Ohm impedance) loudspeakers only, using higher or lesser impedance may damage the unit.
- Do not use 3-cable loudspeakers and do not connect the loudspeakers minus (-) to the car body (GND). The Car Radio
is using a BTL circuit and each loudspeaker must be connected with insulated cables according the diagram.
- Loudspeaker cables and/or optional external power amplifi ers must always be about 30cm away from the antenna and/
or antenna extension parts.

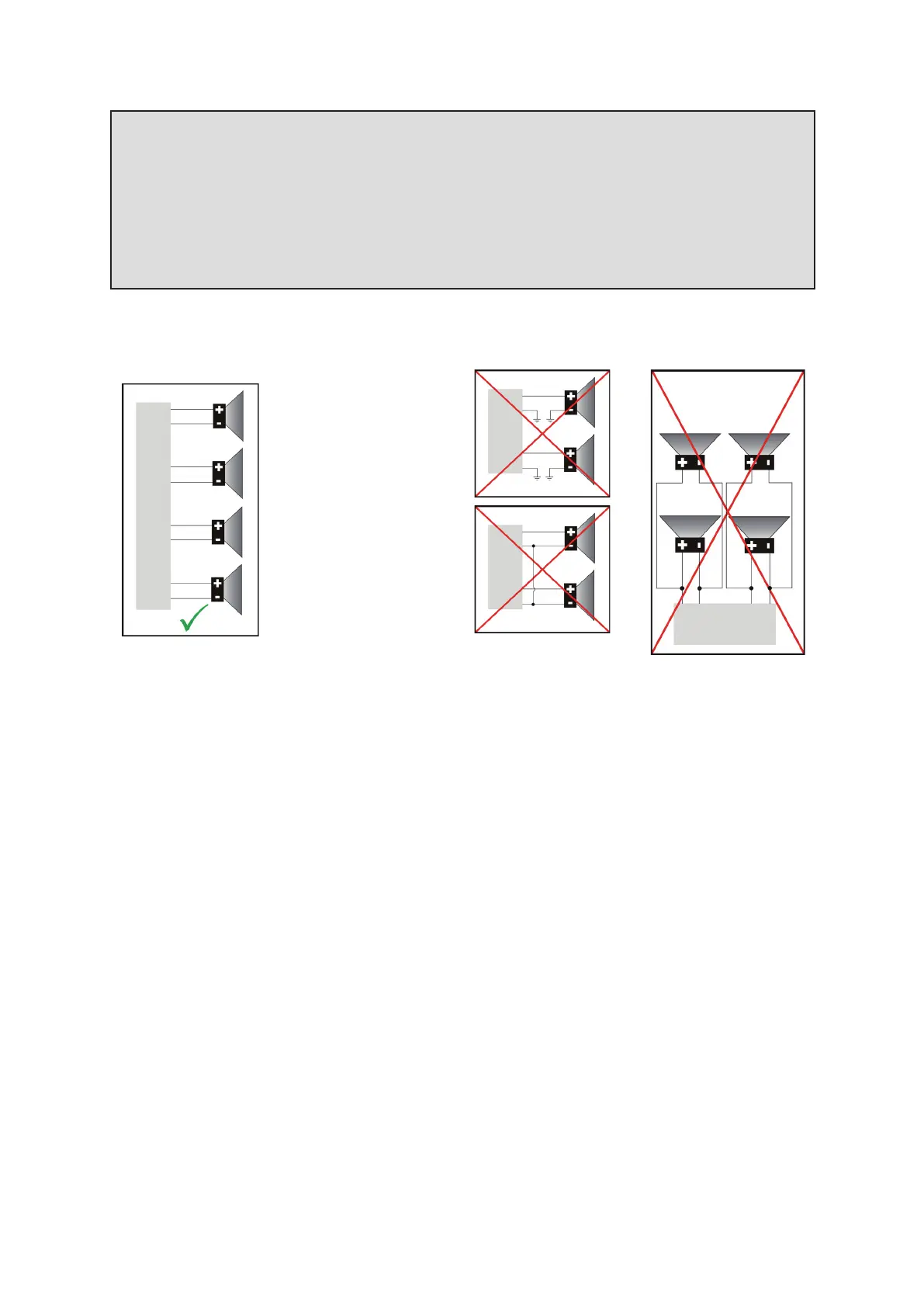

Connect the speakers according the following diagram, incorrect connections will damage the unit or your loudspeakers and
void warranty.
Left front
Right front
Left rear
Right rear
Correct connection Incorrect connections
3.5mm AUX INPUT FRONT
The 3.5mm AUX input can be used to connect external audio devices via their headphone output or their AUX output to the
unit. Devices such as MP3 players, mobile telephones with MP3 player function, cassette tape player, minidisk player, etc. can
be connected to the unit. For the FRONT connection, a 3.5mm Mini Jack to 3.5mm Mini jack cable is needed to connect these
devices to this AUX input port.
