Putting the AC 3 into operation

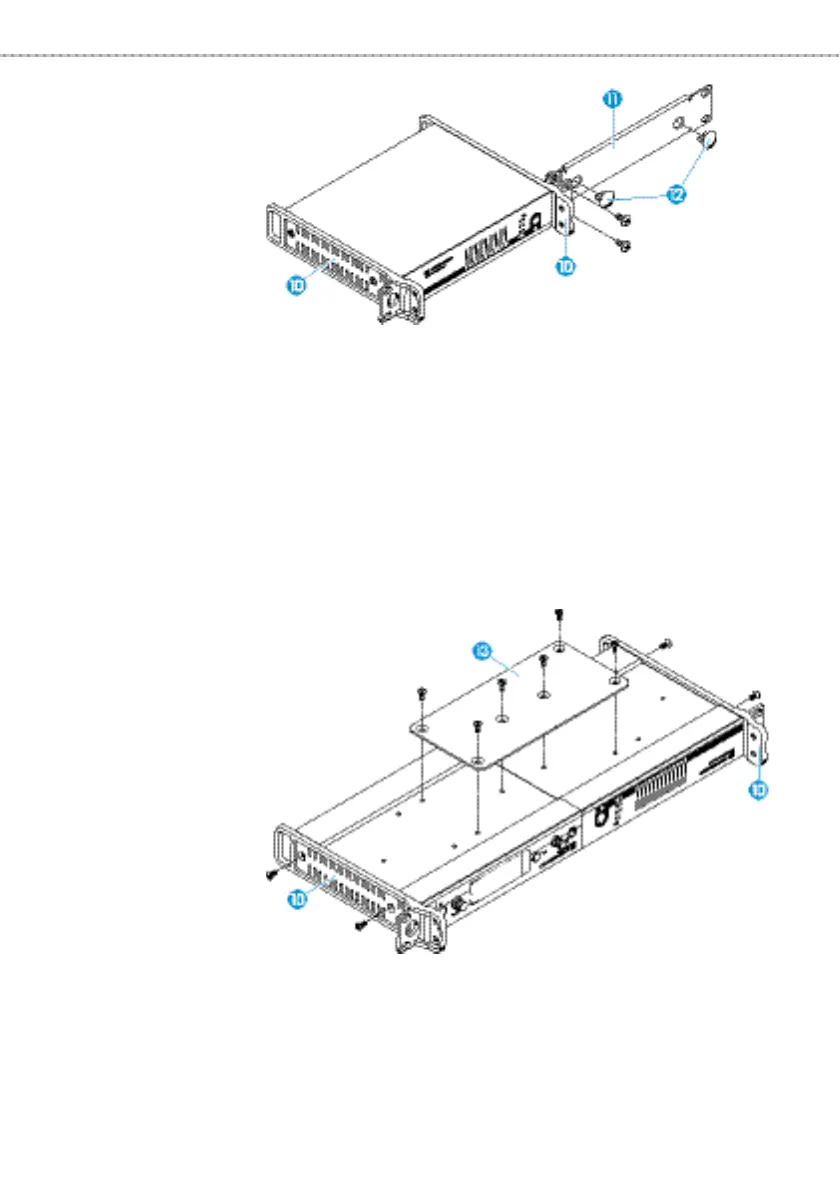

왘 Slide the AC 3 with the mounted blanking plate 쐈 into the
19” rack.
왘 Secure the rack mount “ear” 쐅 and the blanking plate 쐈 to
the 19” rack.
Rack mounting
two devices into
the same 19” slot
To rack mount the AC 3 and an SR 300 IEM G3 type transmitter
into the same 19” slot:
왘 Place the two devices side by side upside-down onto a flat
surface:
왘 Secure the jointing plate 씈 to the devices using six recessed
head screws (M 3x6).
