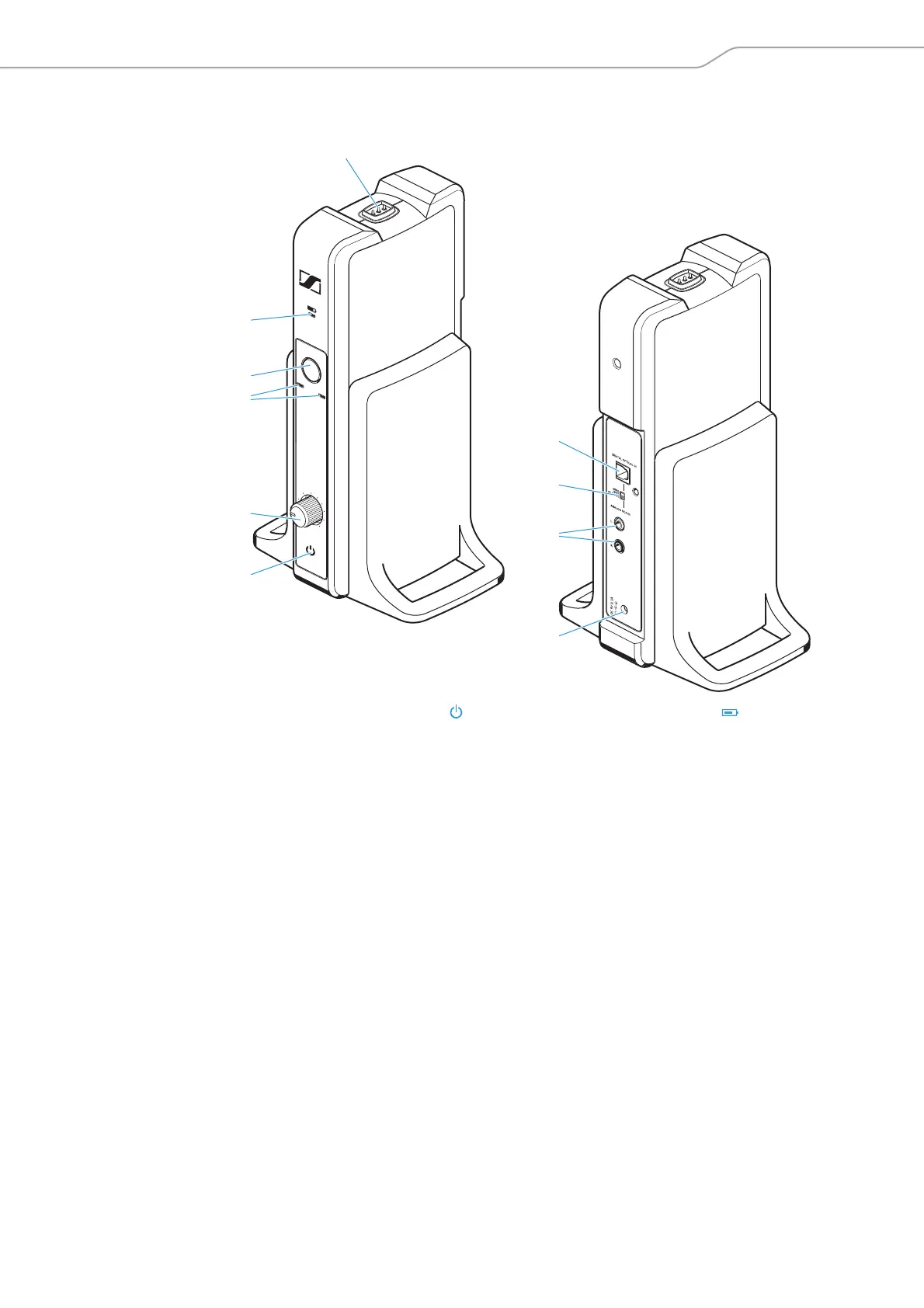

Overview of the TR 185 transmitter
MLC
ALC
LEVEL
MLC
MAX
MIN
6
2
1
4
5
3
7
8
9
0
1 TR status LED
2 MLC ro
tary knob,
for manual level control
adjustment
3 ALC, MLC L
EVEL LEDs, indicate
the selected signal level control
4 LEVEL bu
tton
to toggle between manual and
automatic level controls
5 Charge status LED
6 Charging contacts
7 DIGITAL OPTICAL IN Di
gital
optical audio input
8 AUDIO INPUT SELECTION switch,
fo
r digital or analog audio input
selection
9 L, R RCA audio input,
for
analog audio input
0 DC 9V 0.3A socket for
the
power supply unit
