REF F-PRO-1725 (G)
2.1 Equipment Set-Up
1) Use an LFS-113 pump with a fully charged battery pack.
2) Attach tubing to the pump.
3) Connect a constant flow [3A] or Multi-Flow [3B] collection device to the tubing.
4) Connect the tubing from the collection device to a Gilibrator 2.
5) Set up and turn on the Gilibrator 2.

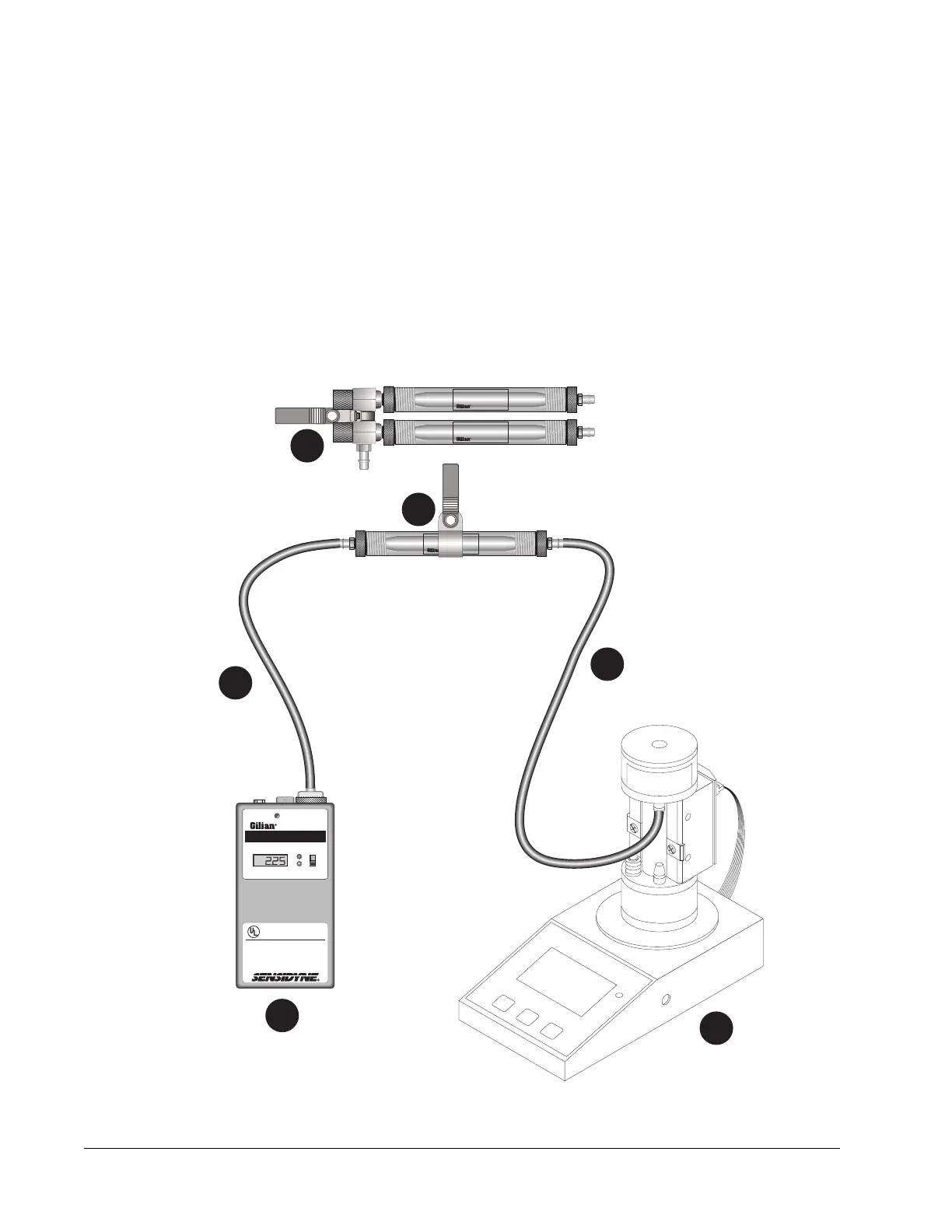

Figure 2.1
Field Calibration Equipment Set-Up
Intrinsically Safe Portable Air Sampling Pump for use in
hazardous locations: Class I Groups A,B,C,D; Class II
Groups E,F,G; Class III. Temperature Code T3C.
WARNING
Substitution of components may impair Intrinsic
Safety. Use only with UL Listed Portable Air
Sampling Pump Battery Pack.
®
LISTED 17G9
MODEL LFS-113D / LFS-113DC
Personal Air Sampler
Made by
Patent Pending
ON
OFF
B
F
TIME (MIN)
FLOW ADJ
Made in USA
LOW FLOW SAMPLER
Dual Mode
Model LFS-113DC
(THH-L-240)
UNIVERSAL TUBE
HOLDER SYSTEM
Patent Pending
Made in USA
2
1
4
5
3A
3B
(THH-L-240)
UNIVERSAL TUBE
HOLDER SYSTEM
Patent Pending
Made in USA
(THH-L-240)
UNIVERSAL TUBE
HOLDER SYSTEM
Patent Pending
Made in USA
SECTION TWO
PUMP OPERATION
