LFS-113 LOW FLOW AIR SAMPLING PUMP
REF F-PRO-1725 (G)
Figure 2.4
Sampling
2.3 Taking A Sample
1) Use a pointed instrument such as a ball point pen to turn on the pump.

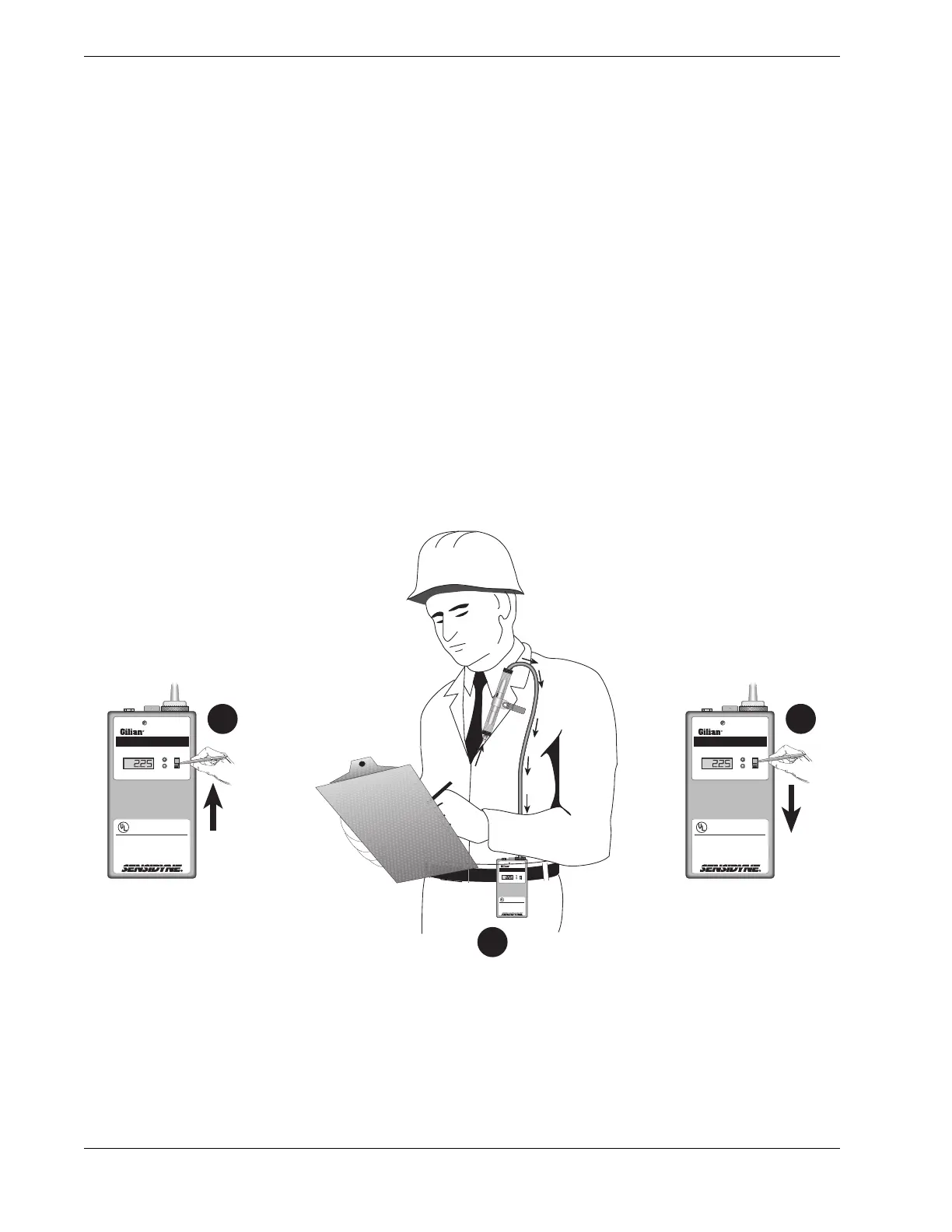

2) Place the pump, tubing and sampling device on the worker as shown in Figure 2.4.
3) When sampling is completed use a pointed instrument such as a ball point pen to turn off the pump.
Record the sample data.
Note for Clock Models
When the pump is shut off after a sample run, the accumulated run time minutes (to the nearest 0.01
minute) are displayed. To calculate totaled air volume sampled, use the following formula:
Total Air Volume (Liters) = Air Flow Rate (cc/min) x Sample Time (minutes) ÷ 1000 cc/Liter
