SMART S
MANUALE D'INSTALLAZIONE E USO
INSTALLATION AND USER MANUAL
MT3567rev2 13/12/2019 Page 5 of 18
scheda 3 relè),
17 (elettronica con un’uscita RS485, un’uscita 4-20mA,
scheda 3 relè e modem Hart).
I rivelatori SMART S-SS sono dotati di display a 8 digit,
con scelta tra display LED e LCD, e 5 LED di stato e
permettono una taratura in campo non intrusiva tramite
magneti a effetto Hall che consentono di operare sullo
strumento senza aprirlo e quindi senza declassificare
l’area.
Essi possono avere diversi tipi di contenitori:
3A (Involucro in alluminio standard),
4A (Involucro in alluminio senza rame),
2S (Involucro in acciaio inox).
A seconda dell’elettronica integrata lo SMART S-SS può
essere identificato con i seguenti numeri:
11 (elettronica con un’uscita RS, un’uscita 4-20mA e
display LCD),
12 (elettronica con un’uscita RS, un’uscita 4-20mA e
display LED),
13 (elettronica con un’uscita RS, un’uscita 4-20mA,
display LCD e scheda 3 relè),
14 (elettronica con un’uscita RS, un’uscita 4-20mA,
display LED e scheda 3 relè),
17 (elettronica con un’uscita RS, un’uscita 4-20mA,
display LCD, scheda relè e modem Hart)
18 (elettronica con un’uscita RS, un’uscita 4-20mA,
display LED, scheda 3 relè e modem Hart).
Infine, si può selezionare il modello del sensore secondo
l’elenco sottostante:
board),
17 (one 4-20mA output, one RS output, one 3 relay board
and modem Hart).
The SMART S-SS detectors offer 5 status LEDs and an 8
digits back-lit display for the gas concentration reading to
be chosen between LCD or LED display. They feature
non-intrusive calibration for an accurate and easy
adjustment via Hall-effect switches, which allow to access
the detector without opening the instrument and
declassifying the area.
They may have different types of enclosures:
3A (standard aluminium casing),
4A (copper free aluminium casing),
2S (stainless steel housing).
SMART S-SS can be identified under the following
numbers depending on the integrated electronics:
11 (one 4-20mA output, one RS output and LCD display),
12 (one 4-20mA output, one RS output and LED display),
13 (one 4-20mA output, one RS output, LCD display and 3
relay board),
14 (one 4-20mA output, one RS output, LED display and 3
relay board),
17 (one 4-20mA output, one RS output, LCD display, 3
relay board and modem Hart),
18 (one 4-20mA output, one RS output, LED display, 3
relay board and modem Hart).
Finally, you can select the model of the sensor according
to the list below:

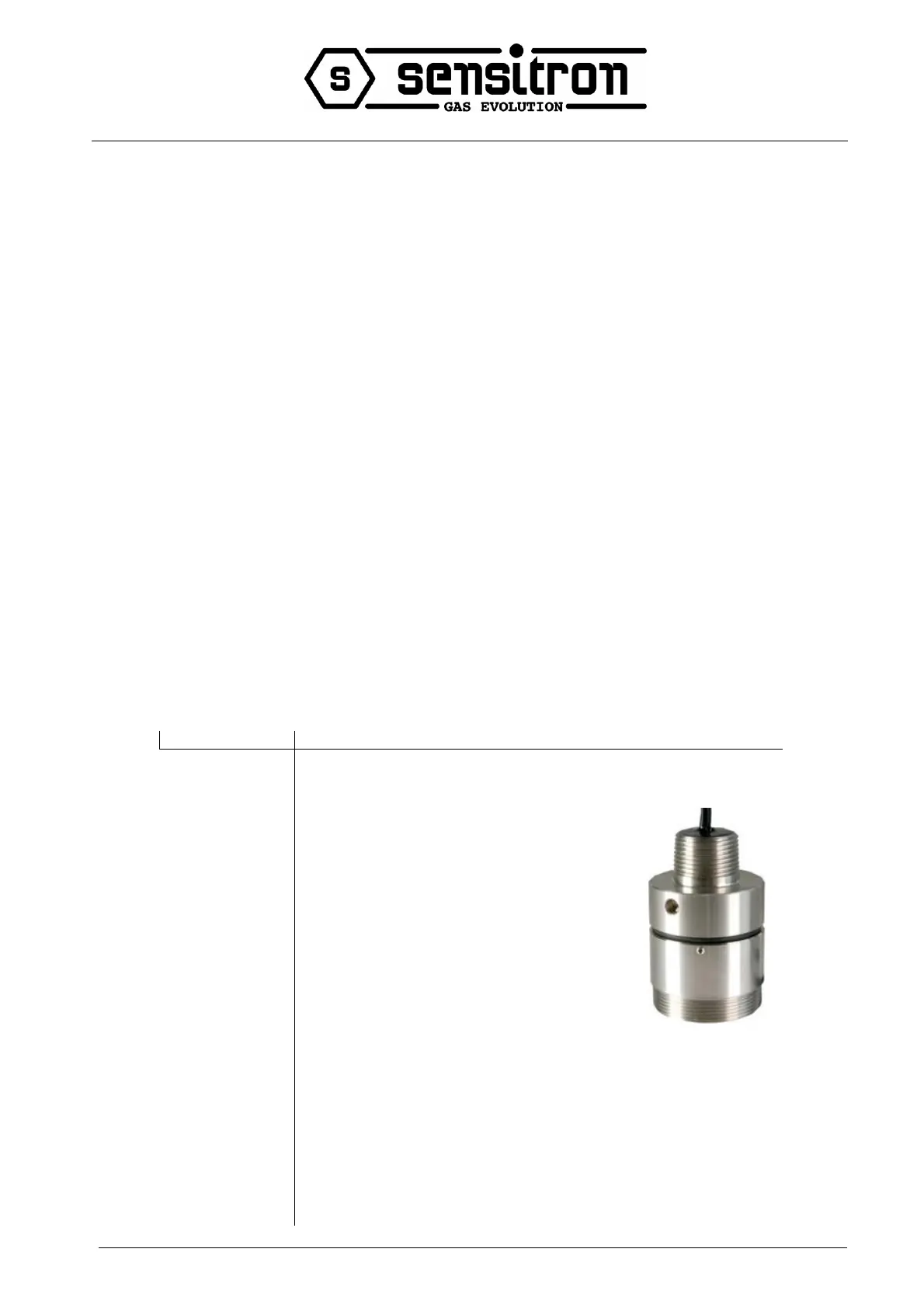

CODE
PELLISTOR SENSOR DESCRIPTION
S4003ME
METHANE sensor head, 0-100%LEL
S4003GP
LPG sensor head, 0-100%LEL
S4003PR
PROPANE sensor head, 0-100%LEL
S4003BU
BUTANE sensor head, 0-100%LEL
S4003VB
PETROL VAPOURS sensor head, 0-100% LEL
S4003AT
ACETONE sensor head, 0-100% LEL
S4003AC
ACETYLENE sensor head, 0-100% LEL
S4003AM
AMMONIA sensor head, 0-100% LEL
S4003CP
CYCLOPENTANE sensor head, 0-100% LEL
S4003EN
ETHANE sensor head, 0-100% LEL
S4003AE
ETHYL ACETATE sensor head , 0-100% LEL
S4003ET
ETHYL ALCOHOL sensor head, 0-100% LEL
S4003EL
ETHYLENE sensor head, 0-100% LEL
S4003EP
HEPTANE sensor head, 0-100%LEL
S4003ES
HEXANE sensor head, 0-100% LEL
S4003H2
HYDROGEN sensor head, 0-100% LEL
S4003IB
ISO BUTANE sensor head, 0-100% LEL
S4003P8
JP8 sensor head, 0-100% LEL
S4003MT
METHYL ALCOHOL sensor head, 0-100% LEL
S4003MK
METHYL ETHYL KETONE (MEK) sensor head, 0-100% LEL
S4003PE
PENTANE sensor head, 0-100% LEL
S4003PP
PROPYLENE sensor head, 0-100% LEL
S4003PN
PROPYL ALCOHOL sensor head, 0-100% LEL
S4003ST
STYRENE sensor head, 0-100% LEL
S4003TO
TOLUENE sensor head, 0-100% LEL
S4003XI
XYLENE sensor head, 0-100% LEL
