3
When the monitor is off, press this button to power it
on.
When the monitor is on, press and hold it for 2
seconds to turn it off.
During operation, pressing this button will switch to
Main Screen, or Calendar Screen, or return to Home
Screen.
4. Temperature Probe Connector Port
5. ECG Connector Port
6. SpO2 Connector Port
7. Speaker
8. Serial Number
2.3 Main Screen
The Main Screen is shown as below. Swiping your finger from
right to left can switch to the second page, and vice versa.
Pressing a button in the Main Screen will start a measurement,
activate a function, or open corresponding menu.
4
2.4 Calendar Screen / Standby Mode
The device will enter Calendar Screen / Standby Mode when:
No operation is detected for 120 seconds in other screen
interface, the device will automatically switch to the
Calendar Screen.
Pressing the Home button will return you to the Main Screen.

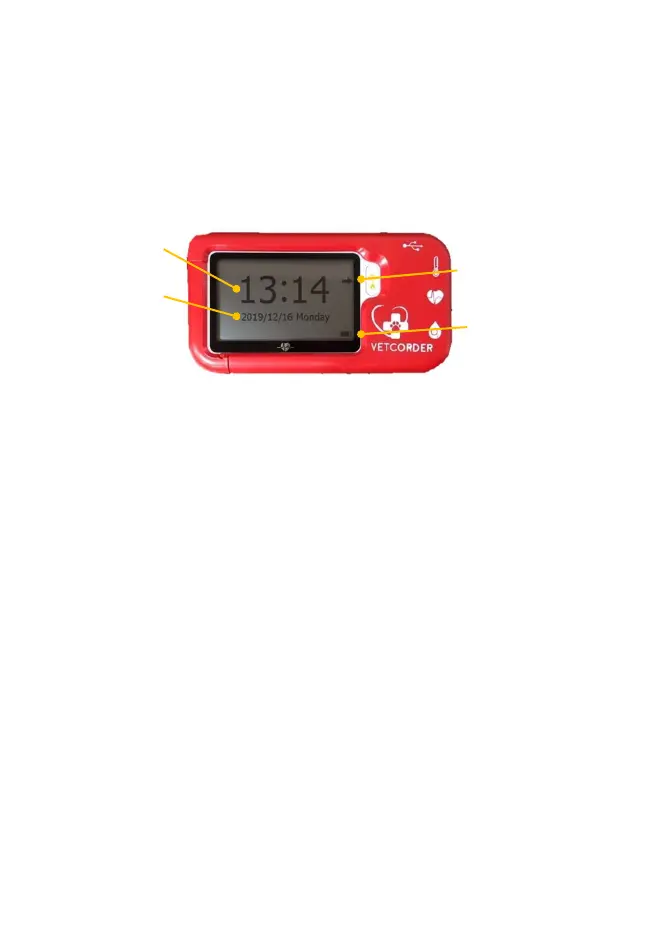

1. Current time
2. Current date
You can change the current time and date by going into the
Settings menu. Please refer to Section 5.1 for details.
3. This arrow indicates Users to press the Home button to exit
the Calendar Screen / Standby Mode.
4. Battery indicator
When the device enters Calendar Screen, it also begins to work in
Standby Mode, which is an ultra-low power consumption mode.
In Standby Mode, the touch screen operation will not function.
5
2.5 Result Screen
This device provides powerful measurement functionalities,
including Daily Check, ECG, Oximeter, and Internal
Thermometer. For each measurement, a Result report will be
provided after the measurement is finished. An example is shown
as below.
1. Measured parameters and readings.
2. Trash, replay, and back buttons.
Select to move recording to trash
Select button to re-record.
Press button to go back to the readings screen.
In the Result Screen, if there is no operation for 2 minutes, the
device will automatically return to Standby Screen.
