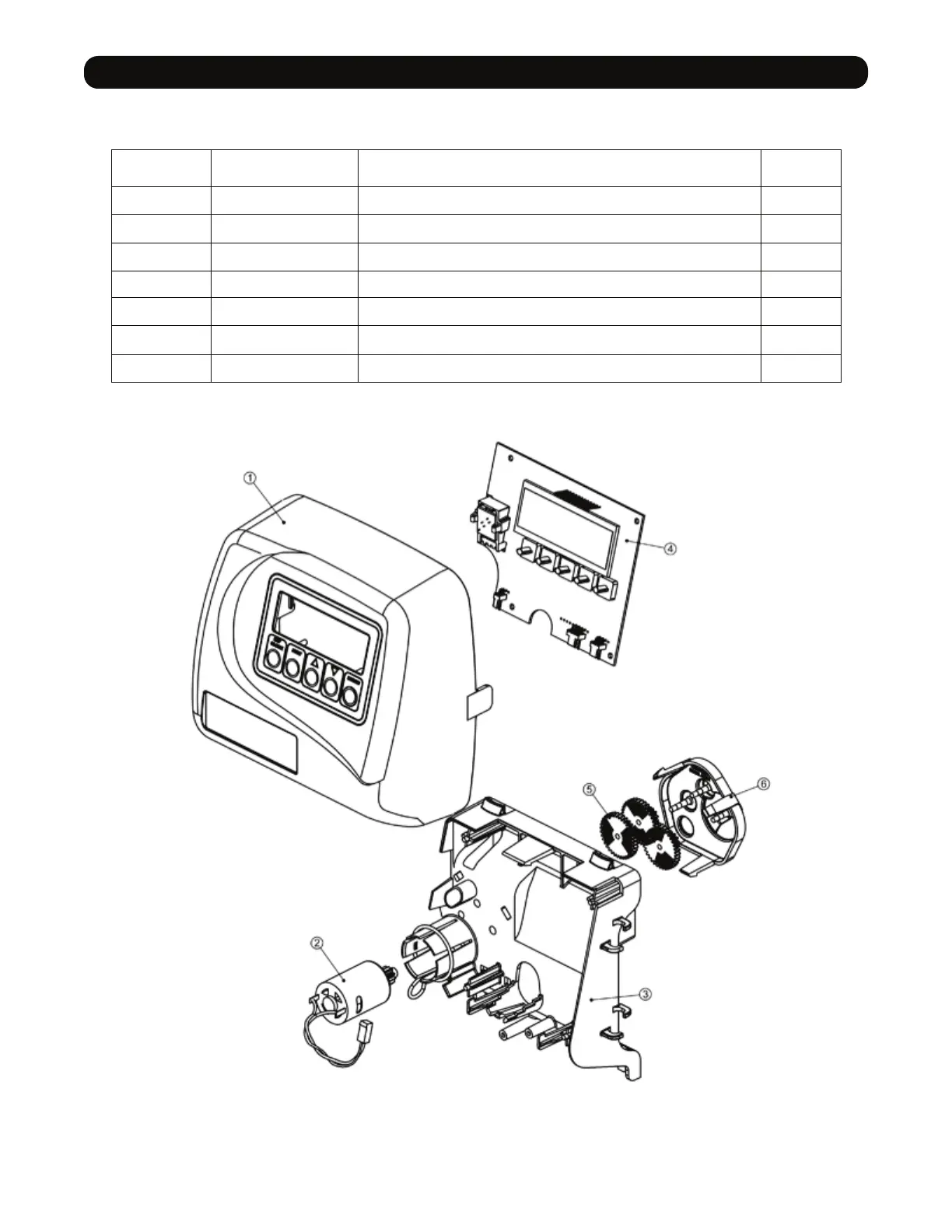

SENTRY II 960 Series - Front Cover and Drive Assembly

18
Drawing
No.
Part No. Description Quantity
1 V3175-01 Front Cover Assembly 1
2 V3107-01 Drive Motor 1
3 V3106-01 Drive Bracket and Spring Clip 1
4 V3108 Circuit Board 1
5 V3110 Drive Reducing Gear 3
6 V3109 Drive Gear Cover 1
Not Shown V3186 Transformer 110VAC-12VAC 1
Parts Breakdown
Front Cover and Drive Assembly
