DS2 – Two-Camera Vehicle Event Recording System
DS2 Quick Installation and Setup Guide
Part #700-1078 R5

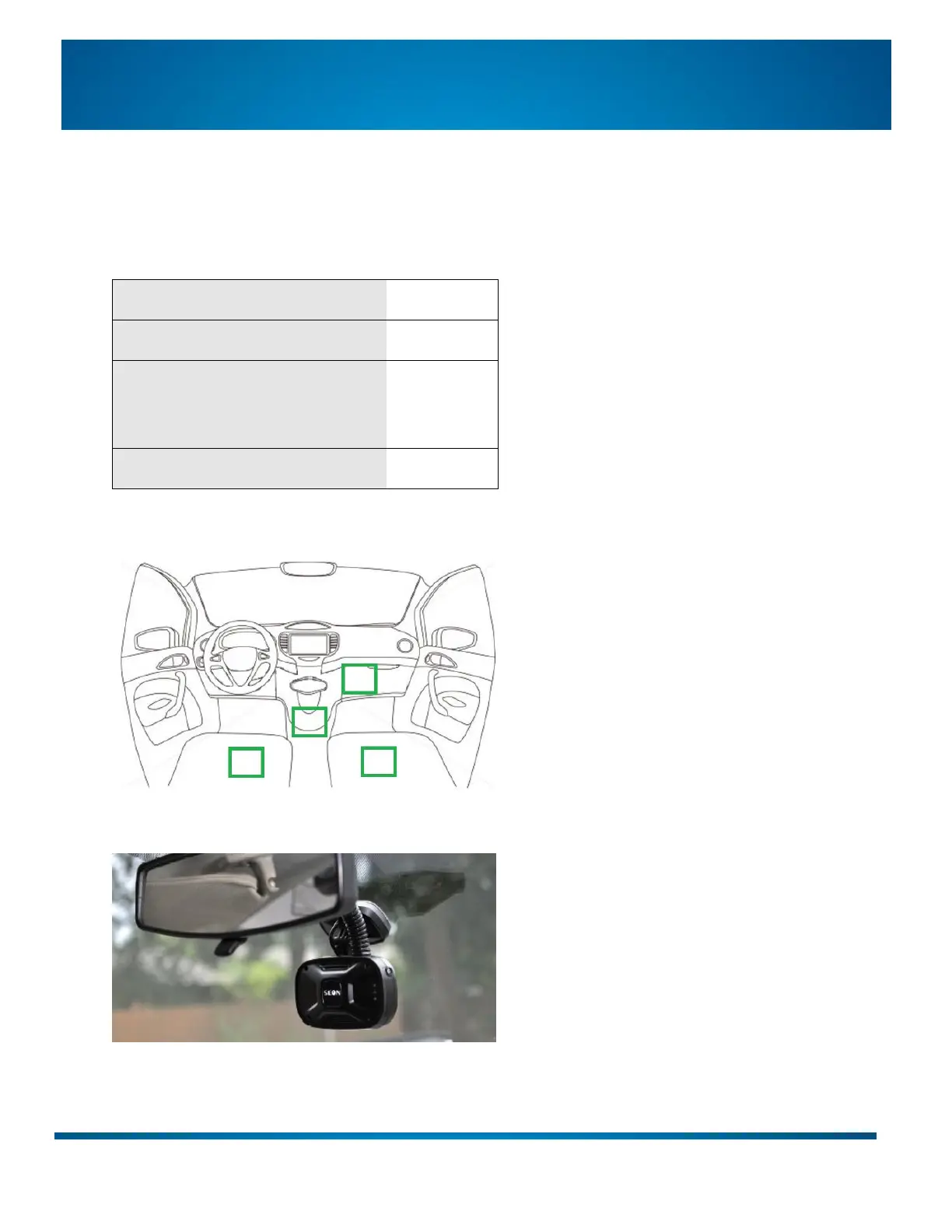

Step 1: Determine Installation Locations
Think about placement of cameras and the Control Unit, and confirm the positions will work for the images
you want to capture. Make sure you consider cable lengths and how they will run between components:
Camera 1 to the Control Unit
Camera 1 to Camera 2
*an optional extension is available
(contact Seon Support)
Power connections to Control Unit
Control Unit – here are a few good options:
Camera 1 - forward-facing, on the windshield; behind the mirror works well:
Ensure mirror adjustment will not be impeded.
Avoid areas with metal sun diffusers or other obstructions: mount on clear glass.
