SEP LEM012SJ User Manual

6 SEP LEM012SJ 2015 V01

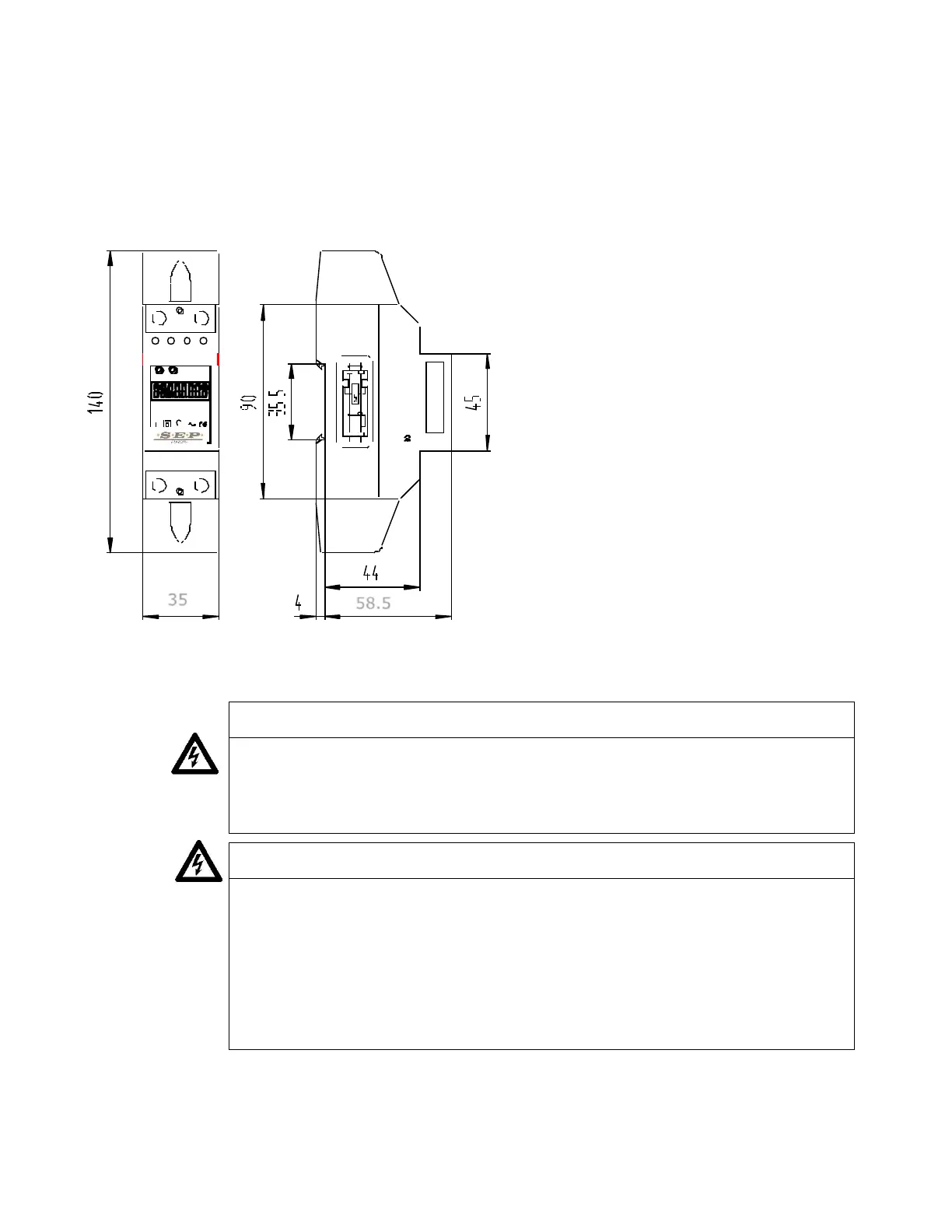

1.7 Dimensions
Height 140. mm
Width 35. mm
Depth 58.5 mm
Weight 0.20 Kg (net)
20
S O
+ -
6 3
1 4
N L
2 1
Ui max = 27V / l imax = 27mA
Si ngle phase 1 00A kWh meter
RL= 2.0 Wh/imp R
A
= 2.0 Wh/imp (t i=80ms) SO
R
DMMetering
ADM2D V1.0 E N 5 0 47 0 -3
P O W ER P U L SE
R
DMMetering
k W h
RA= 2.0 Wh/i mpRL=2. 0Wh /im p
EN 5 0470-3
B
230V,1-20(100)A, 50Hz
1.8
Installation
CAUTION
 Turn off and lock out all power supplying the energy meter and the
equipment to which it is installed before working on it.
 Always use a properly rated voltage sensing device to confirm that power
is off.
WARNING
 Installation should be performed by qualified personnel familiar with
applicable codes and regulations.
 Use isolated tools to install the meter.
 Fuse or thermal cut-off or single-pole circuit breaker can’t be fitted on
the supply line and not the neutral line.
 Case is sealed, failure to observe this instruction can result in damage for
meter.
 No warranty if case is opened or removed seal or damage.
35
58.5
