4. Inspect the keypad, paying particular attention to the keypad bezel lugs, after removal. If the
lugs are damaged, the keypad bezel must be replaced.
Fit the keypad and keypad bezel
1. Place the keypad onto the radio in the correct orientation. Lay the keypad bezel over the
keypad.

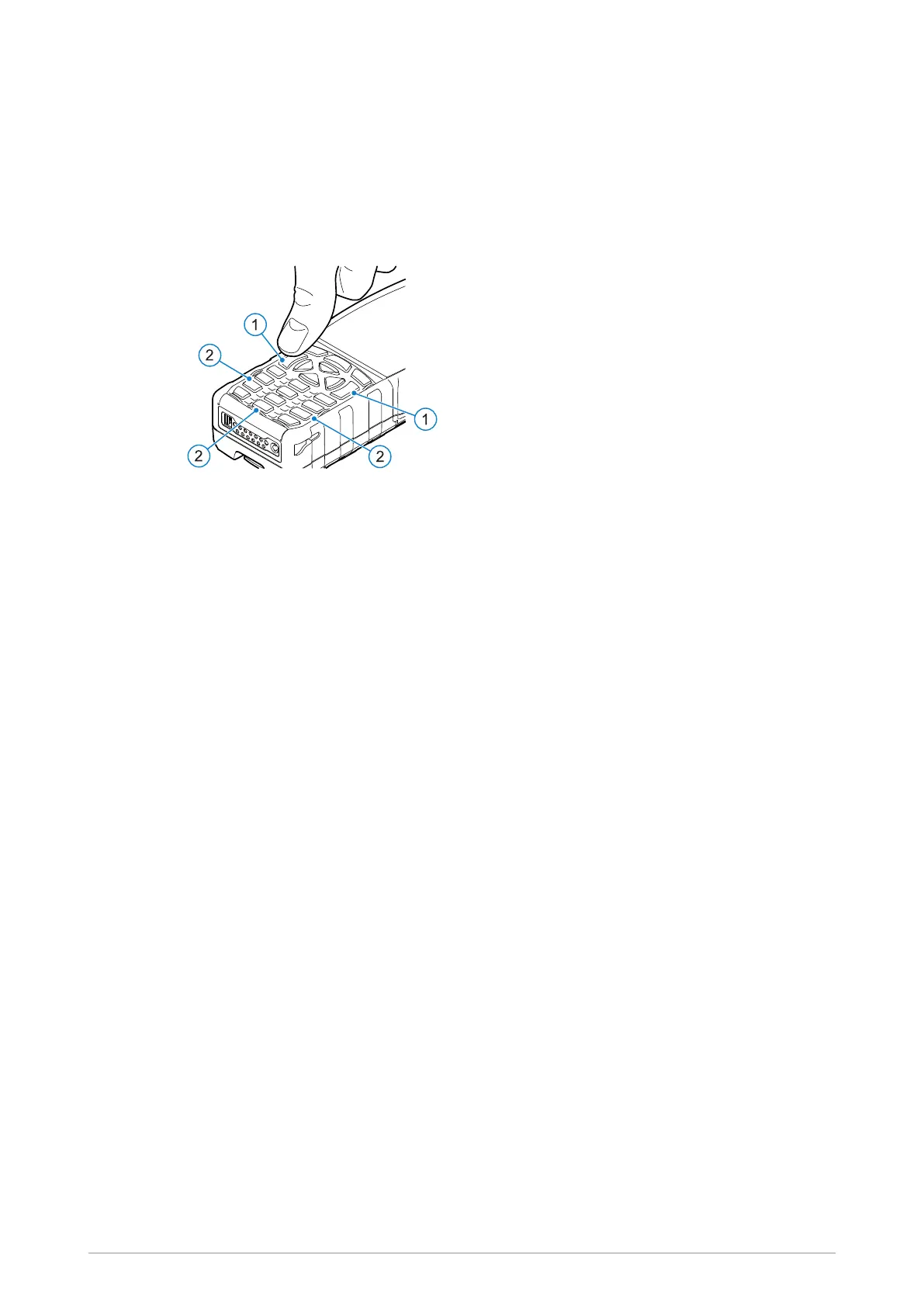

2. Carefully push down on the keypad bezel lugs in the order shown. An audible click is heard
when the snap hooks latch (securing the keypad into position). Ensure the keypad is secure.
3. After fitting the new keypad and bezel, all keys should be pressed to check they operate
correctly.
To fit the colour bar, see the secion Colour Bar on page28 for details.
Level 1 Service Guide 31
