Serpent F110 - Page 15

Page
29
Page
28
20
A
Bag
6
20.1
20.9
Use some silicone oil
during assembly
Use some Locktite to
x the nut
20.2 20.3
20.10
20.4 20.5
20.6
20.7
20.8

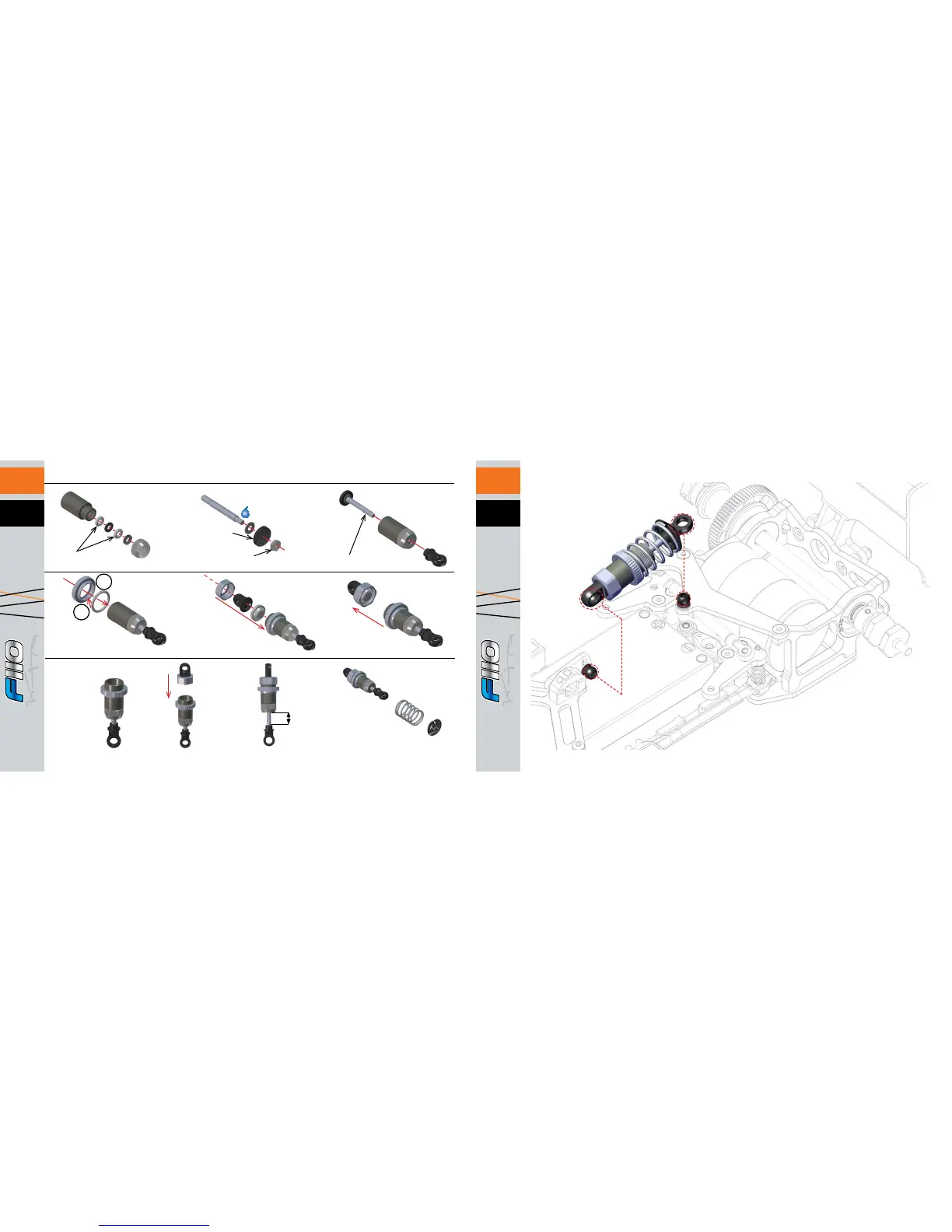

RCM SHOCK ASSEMBLY
Use some silicone oil
during assembly
1
2
Assemble the
top of the
shock. This will
press the mem-
brane into the
shocktop
Remove the top
of the shock
Fill the shock
body with
the supplied
shock
absorber oil.
Slowly move
the shockrod
up and down
to let the
airbubles
escape.
Close the top
of the shock
10.5 mm
Assemble the
spring and
spring-cup (align
correctly) to
complete the
shock
Check the
default set-up
sheet for the
correct piston
to use
Nut M2.5
2.5x6x0.5
21
A
Insert the
o-ring inside
the nut
Measure
fully
extended
