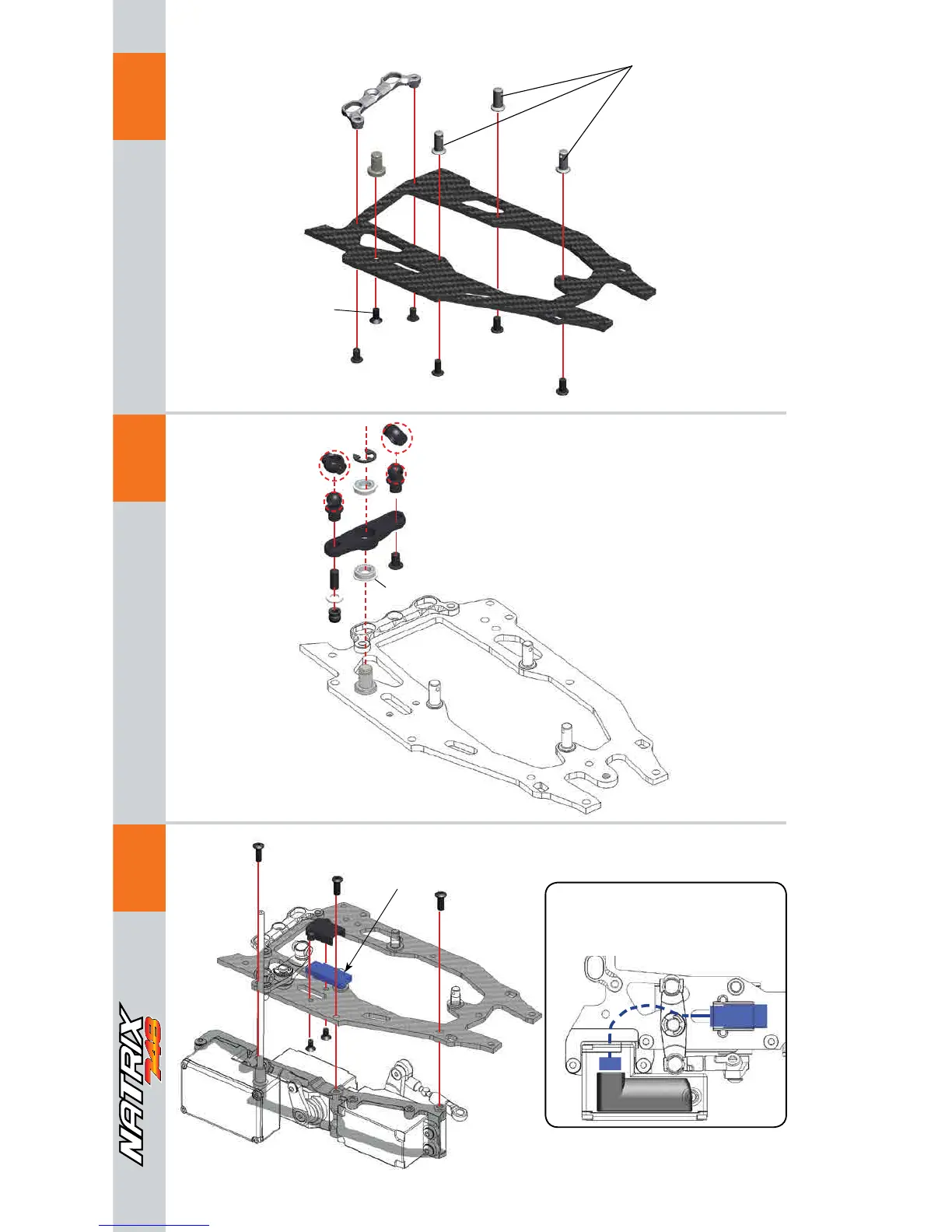

Serpent Natrix 748 - Radio Assembly: Fuel Tank and Radio Plate Mount; Radio Assembly: Receiver Mounting; Radio Assembly: Receiver Power Connection

Page
17
STEP
35
STEP
36
STEP
34
M3x5
M3x5
5x8x2.5 Flanged
M3x8
3.2x7x0.5
R4
M3x8
M2.5x5
M3x8
M3x8
M3x6
M3x6
M3x6
M3x5
NOT
INCLUDED
NOTE: Receiver’s power input
wire diagram
NOTE: For using
nimh receiver bat-
teries it is needed
to raise the fueltank
2mm adding 2mm
shims between the
fuel tank mountings
and the radio plate.
Bag
8
