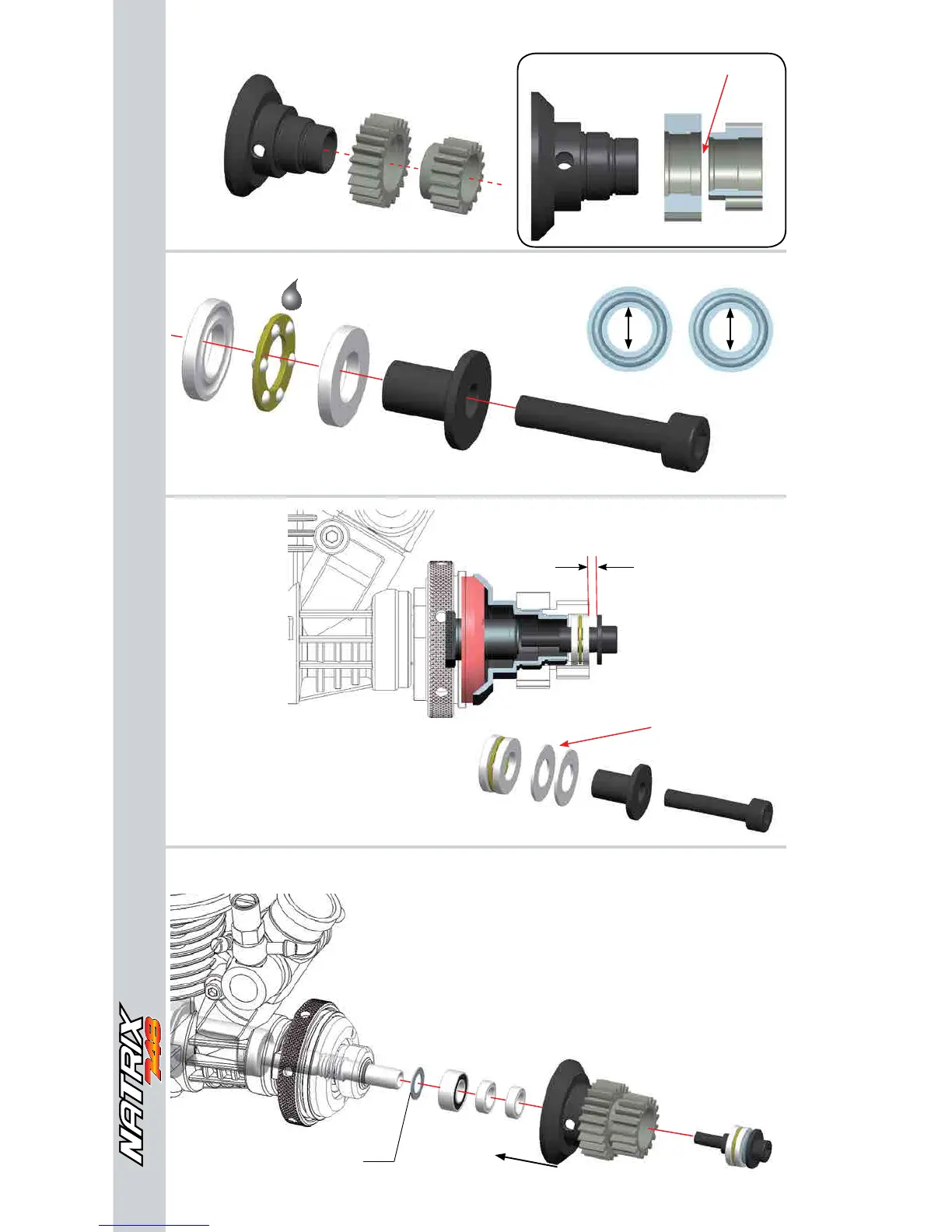

Serpent Natrix 748 - Clutch Assembly: Gear Orientation; Clutch Assembly: Thrust Bearing Installation; Clutch Assembly: Setting Clutch Gap; Clutch Assembly: Adjusting End Play

Page
26
2d gear 1st gear
54.4
Note orientation of teh gears
Small inner dia.
A
B
A B
5.2mm 5.0mm
IMPORTANT! Install thrust bearing
plates as shown
M3x16
54.5
54.6
54.7
Check gap. gap should be between
0.5 and 0.6 mm
Use these shims to
achive desired gap
SETTING THE
CLUTCH GAP
Place small shims to remove all
but a small amount of end play
ADJUSTING
THE END PLAY
