Serpent Viper 988e - Step 16: Front Suspension Arms

bag 5
15
STEp 16
M3x8
M3x5
M3x8
16.1
16.2
FRONT ANTIROLL
BAR ROD LENGTH
28 mm
M3x6M3x5
M3x6
M4X12
M4X12
2mm
1mm
M4x12
16.3

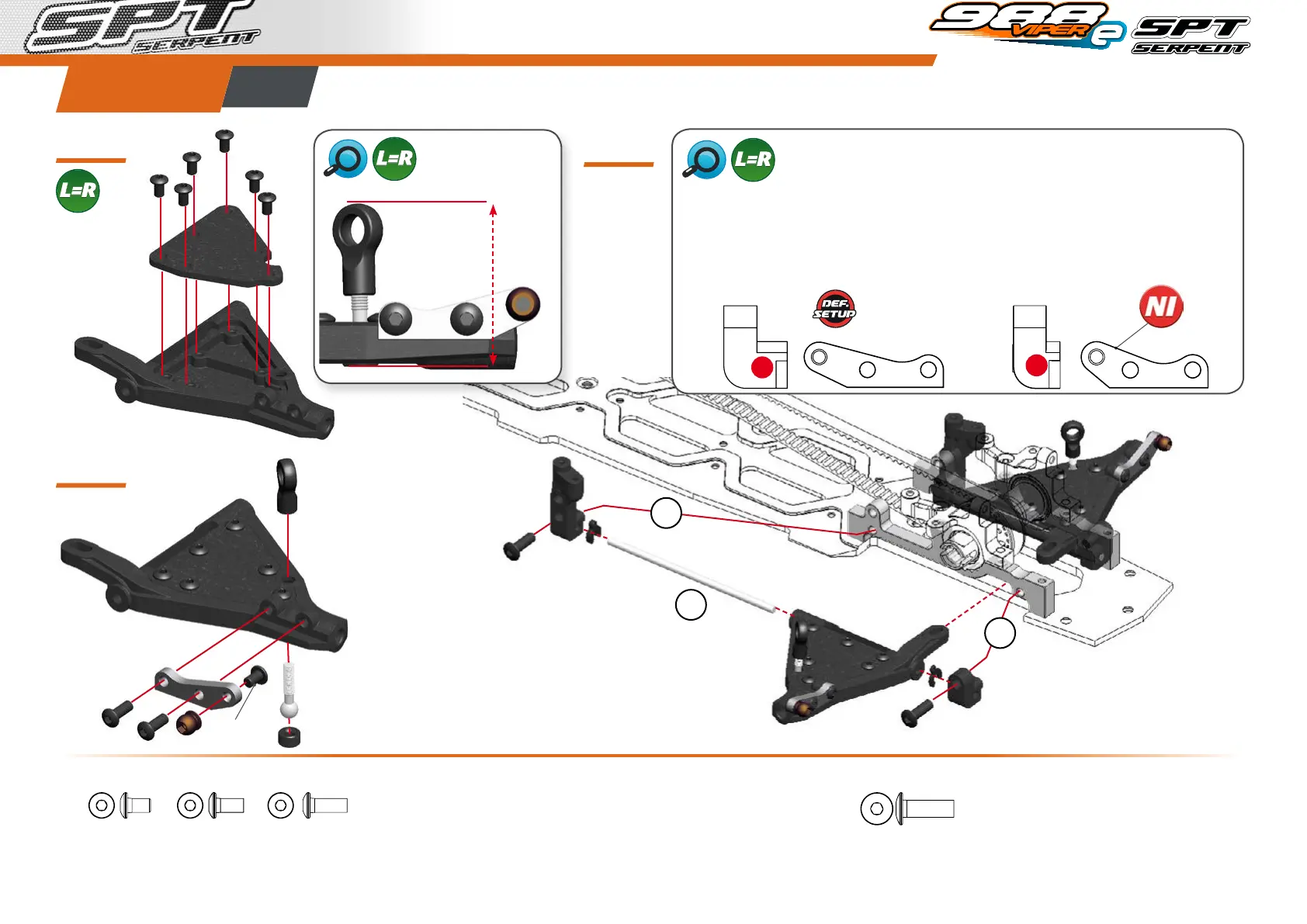

FRONT LOWER SUSPENSION AND SHOCKS BRACKETS
Serpent 988 alows to move front bottom arms 3 mm in (NARROW) and out (WIDE).
To maintain the same shock angle, use the suspension bracket and shock bracket as
shown here.
WIDE
NARROW
1
2
2
