Serpent Viper 988e - Step 17: Front Anti-Roll Bar Assembly

Serpent Viper 988e
58 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
16
STEp 17
5x8x2.5
M3x3
M3x12
M3x3
17.1
17.2

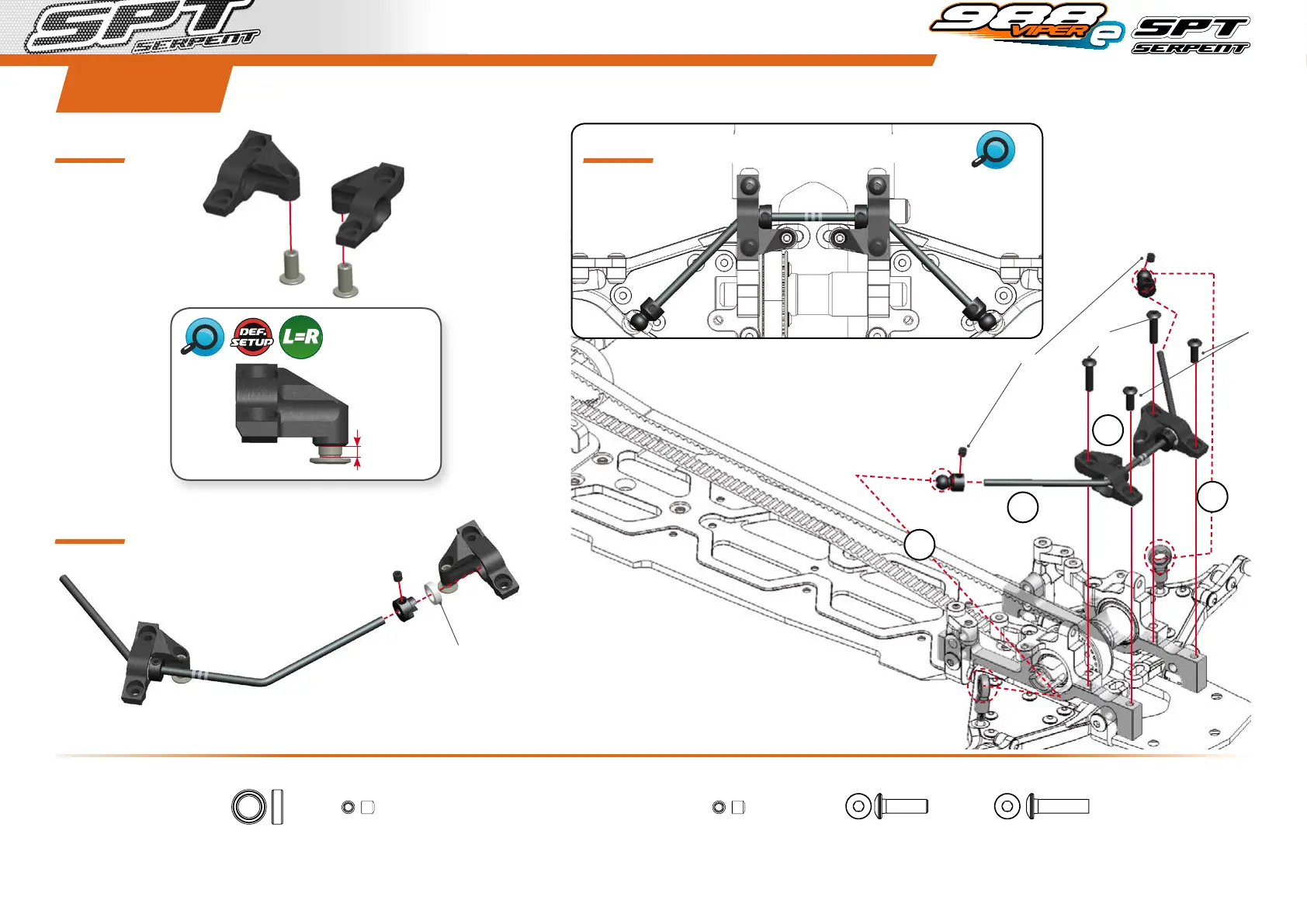

FRONT ANTI-ROLL BAR ASSEMBLY
5x8x2.5
M3x3 M3x3
3.3 mm
FRONT DOWN
STOPS
2
3
17.3
1
1
M3x8
M3x12M3x10
