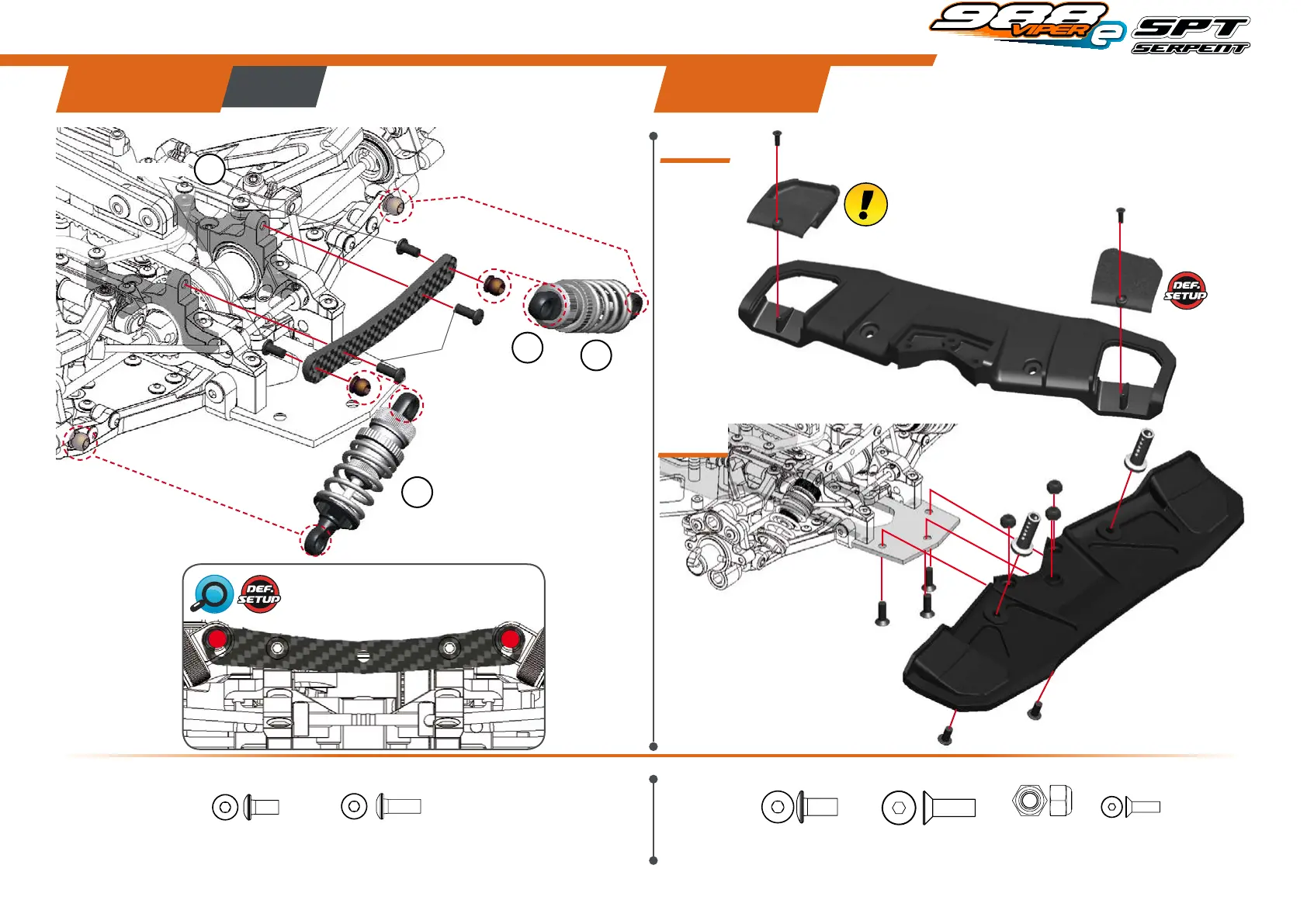

Serpent Viper 988e - FINAL ASSEMBLY; Step 45: Front Shock Mounting; Step 46: Front Body Mounts Installation

bag 12
39
fINal aSSEmbly
STEp 45
M3x6
M3x8
M4x12
M4x8
Nylock
nut M4
M2.5x8
M2.5x8
M4x12
1
2
3
3
FRONT SHOCKS DEFAULT POSITION
Nylock Nut
M4
46.1
46.2
Note that the picture shows two
diffrent insert options. Assemble
the same type in both sides. Take
as default the closed one.
M3x8
M4x8
M2.5x5
STEp 46
M3x6
