Serpent Viper 988e - Step 47: Rear Shock Mounting; Step 48: Rear Suspension Arms Attachment

Serpent Viper 988e
58 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
40

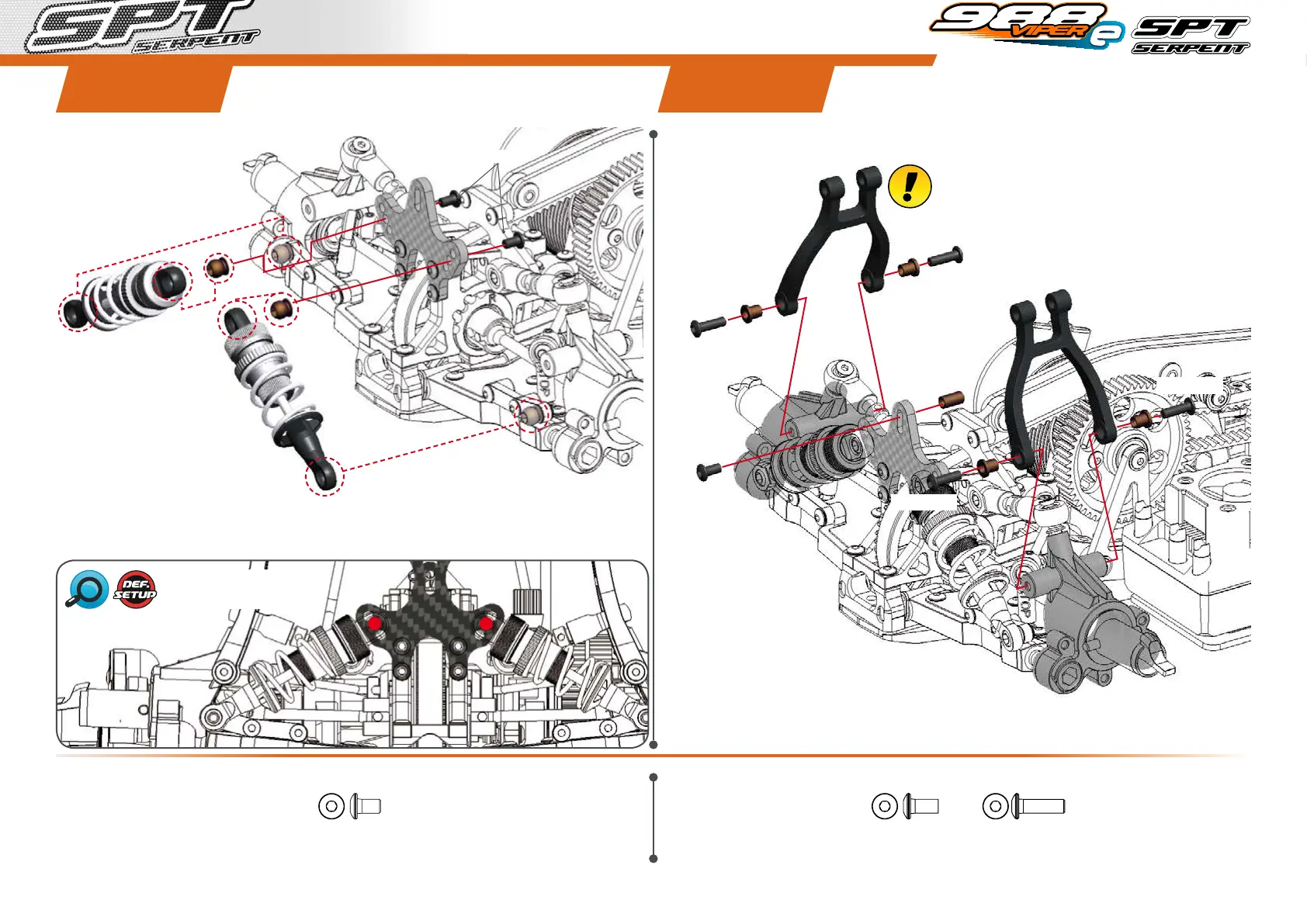

STEp 47 STEp 48
M3x5
REAR SHOCKS
DEFAULT POSITION
M3x10
M3x10
M3x6
M3x10
M3x10
Do not overtighten the M3x10
screws to prevent binding.
M3x5 M3x6 M3x10
