Servend MD 175 - Plumbing Diagram Location

Installation and Service Manual
15
INSTALLATION
PLUMBING DIAGRAM LOCATION

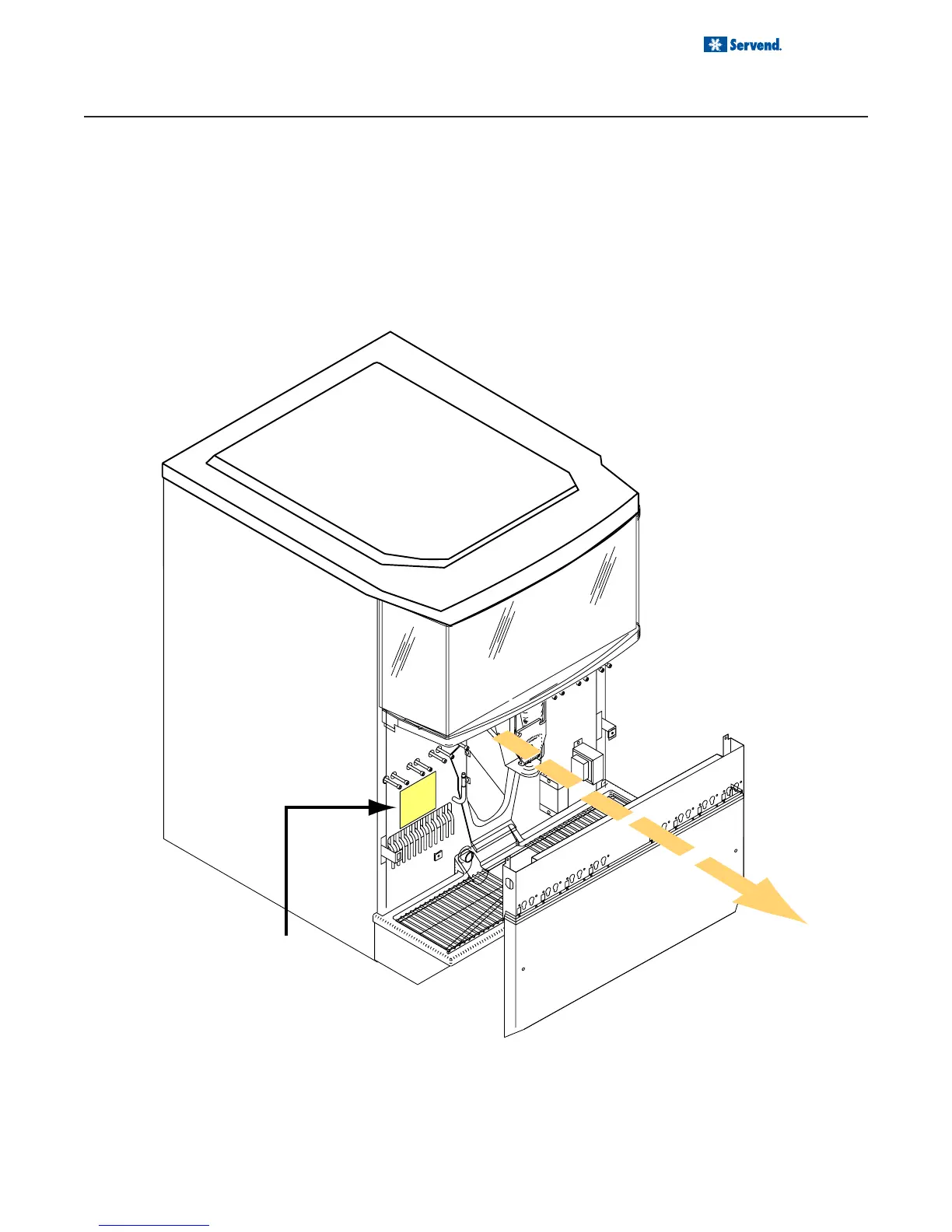

The plumbing diagram is printed on a white vinyl label, usually located above the inlet tubes for syrup and later. The
plumbing diagram label can be accessed by removing the splash panel of the dispenser. The plumbing diagram label
explains which inlet coldplate fittings supply which dispenser valves and water manifolds.
On internal carb units the water supply must first be connected to the carbonator pump before plumbing to connection
“A” shown on plumbing diagram. The carbonator pump deck must be within six feet of the dispenser for optimum
performance. (See BIB installation diagram for system pressure settings). 0
