Servend MD 200 - MDH Series Countertop Measurements

30
Letter Description MDH-302 MDH-402
A
Unit Width 42 ¾" 60"
B
Unit Depth 30 ½ " 30 ½"
C
Outside Ice Bin Depth 22 ½" 22 ½"
D
Under Unit Width 38 ¾" 56 ½"
E
Under Unit Depth 20 ½" 21 ¼"
F
Recommended Countertop Cut-out* 3" X 32" 3" X 48"
G
Maximum Countertop Cut-out* 38 ¾" X 20 ½" 56 ½" X 21 ¼"
OPERATION

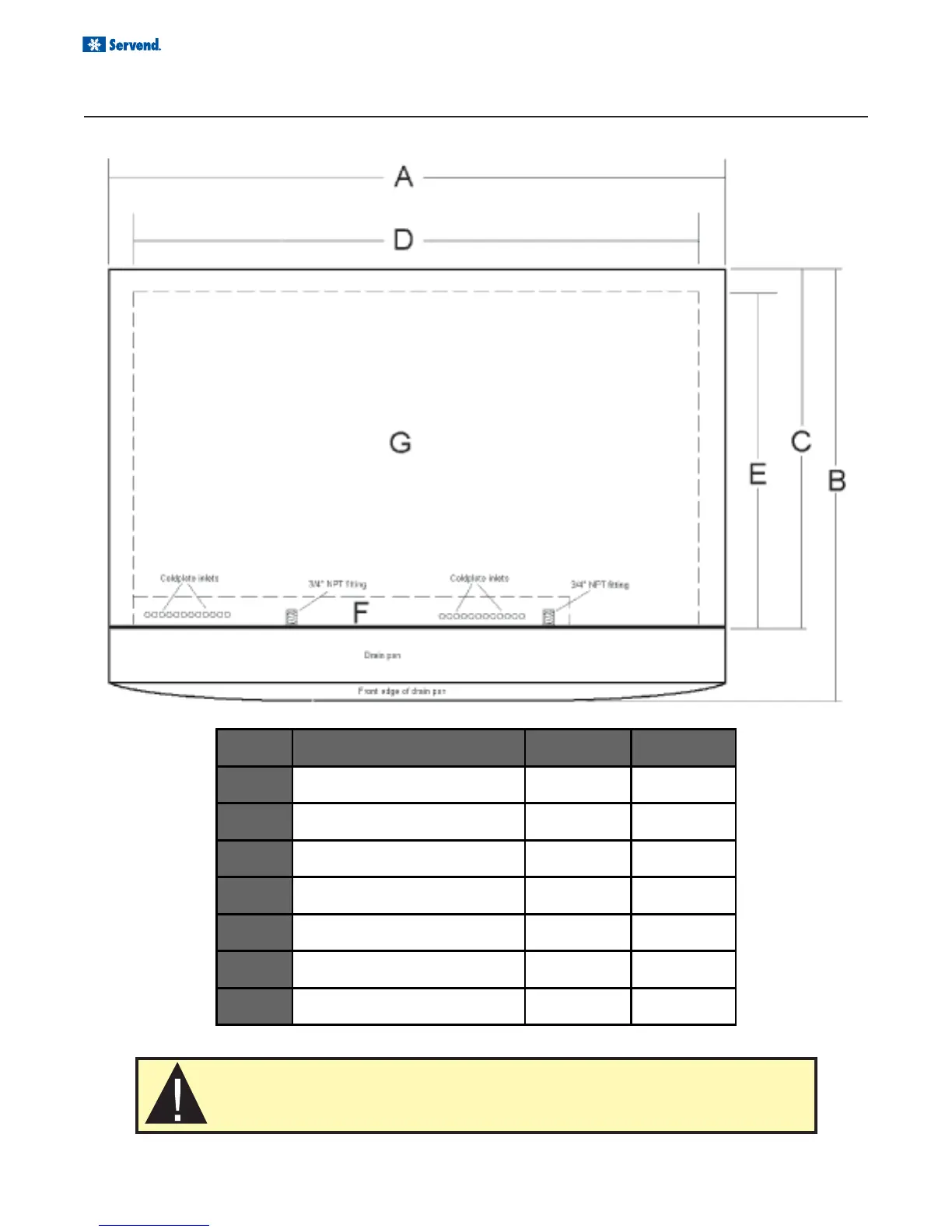

MDH SERIES COUNTERTOP MEASUREMENTS
CAUTION: *Cutting the countertop may decrease its strength. Counter should
be braced to support the dispenser countertop weight plus ice storage ca-
pacity and weight of icemaker, if applicable.
