LKS-CD17SR / CD19SR User Manual
22

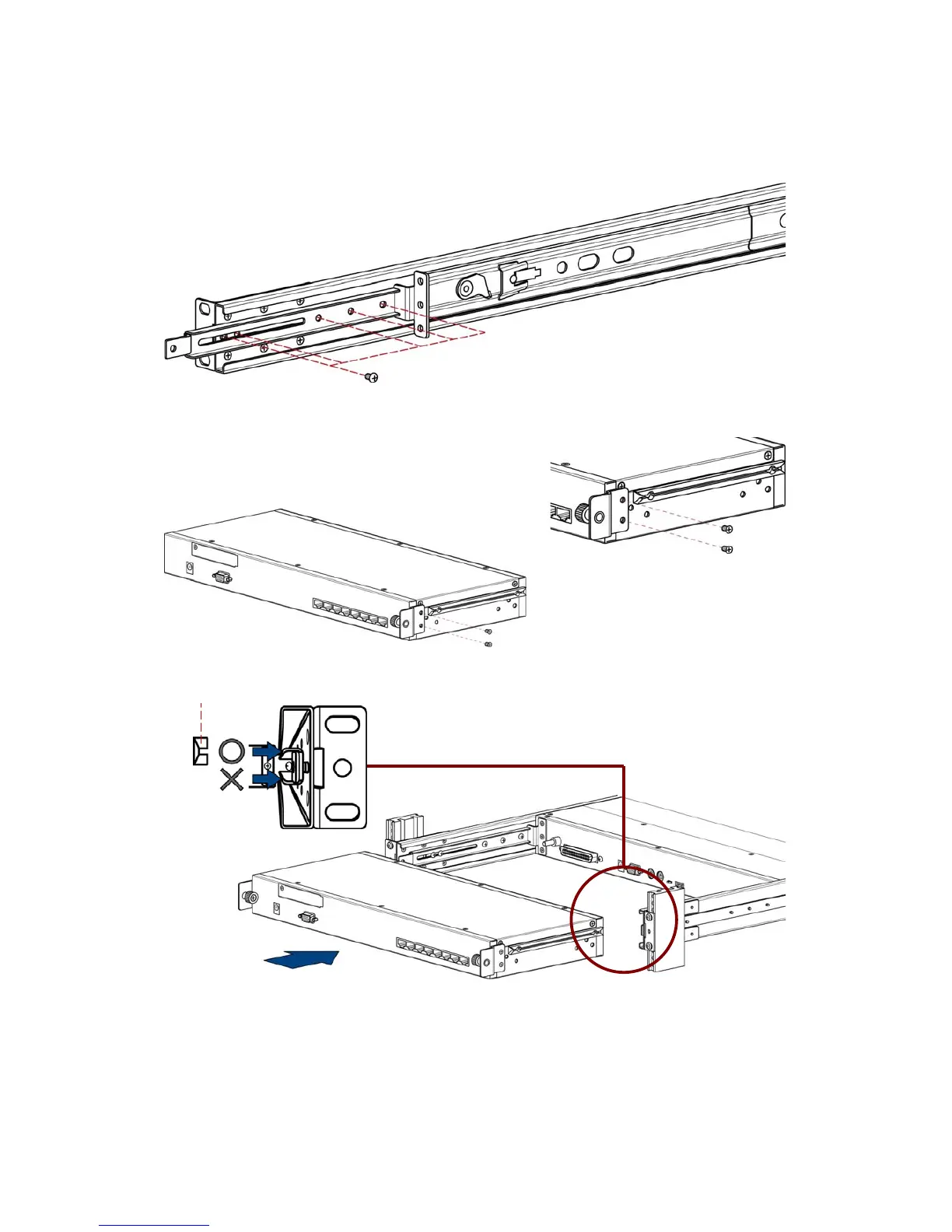

2. Install five screws to combine rail, bracket and original bracket attachment. (Both
sides)
3. Follow the steps to install console into the cabinet.
4. Install two screws (length = 6 mm) to combine KVM switch and bracket with
thumb screw. (Both sides)
5. Push KVM switch into the rails from rear of console
rear view of rail
plastic rail of KVM switch
To Next Page
