LKS-CD17SR / CD19SR User Manual
20
3.2 Install Modular KVM Switch
3.2.1 Install Combo KVM Switch (8 / 16 Port High Density 15 Pin KVM)

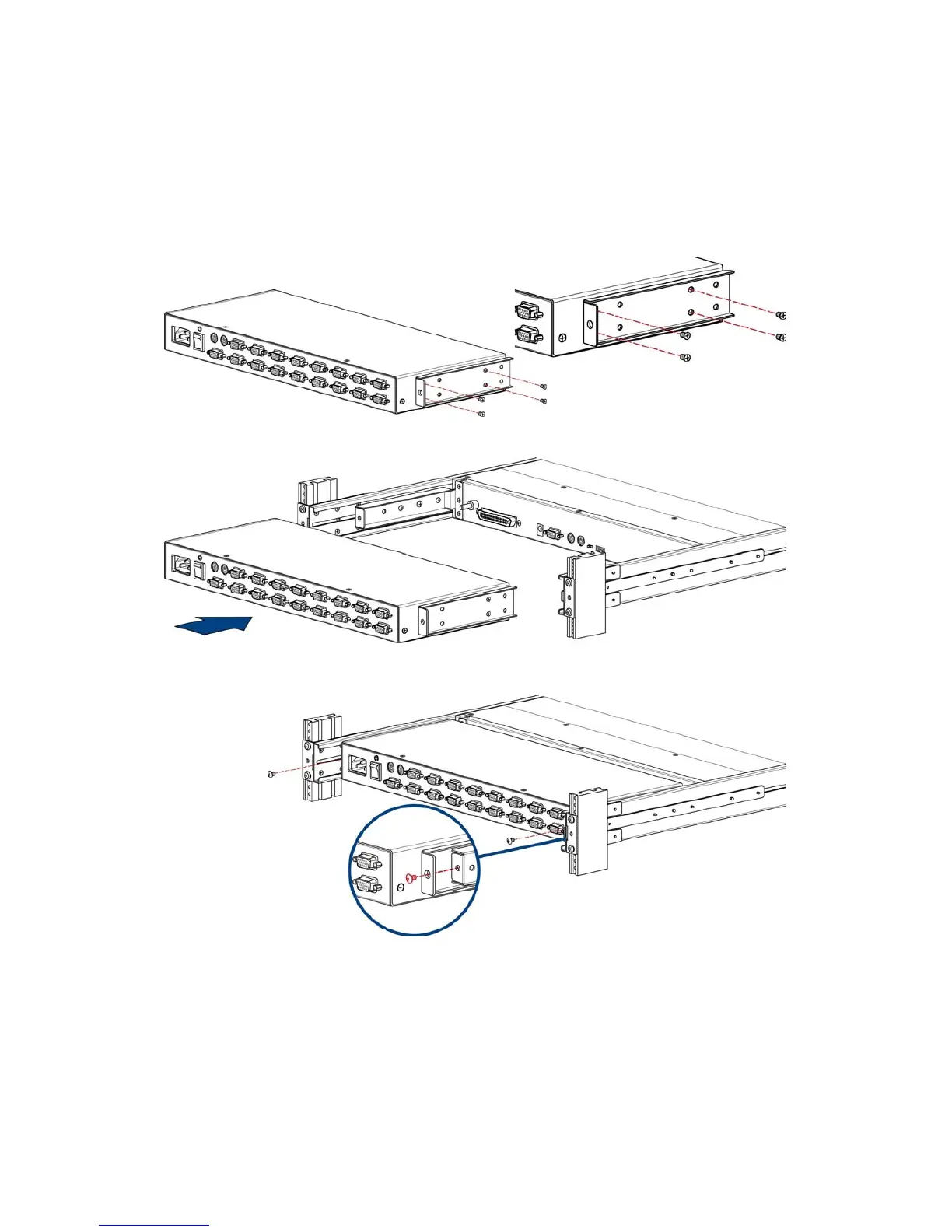

1. Install four screws to combine bracket and KVM switch. (Both sides)
2. Push KVM switch into the rails from rear of console.
3. Install two screws to combine KVM switch and console.
