SET 1501 T - Schematics; Cooling Circuit

31
Schematics: Cooling circuit
Schematics
Cooling circuit

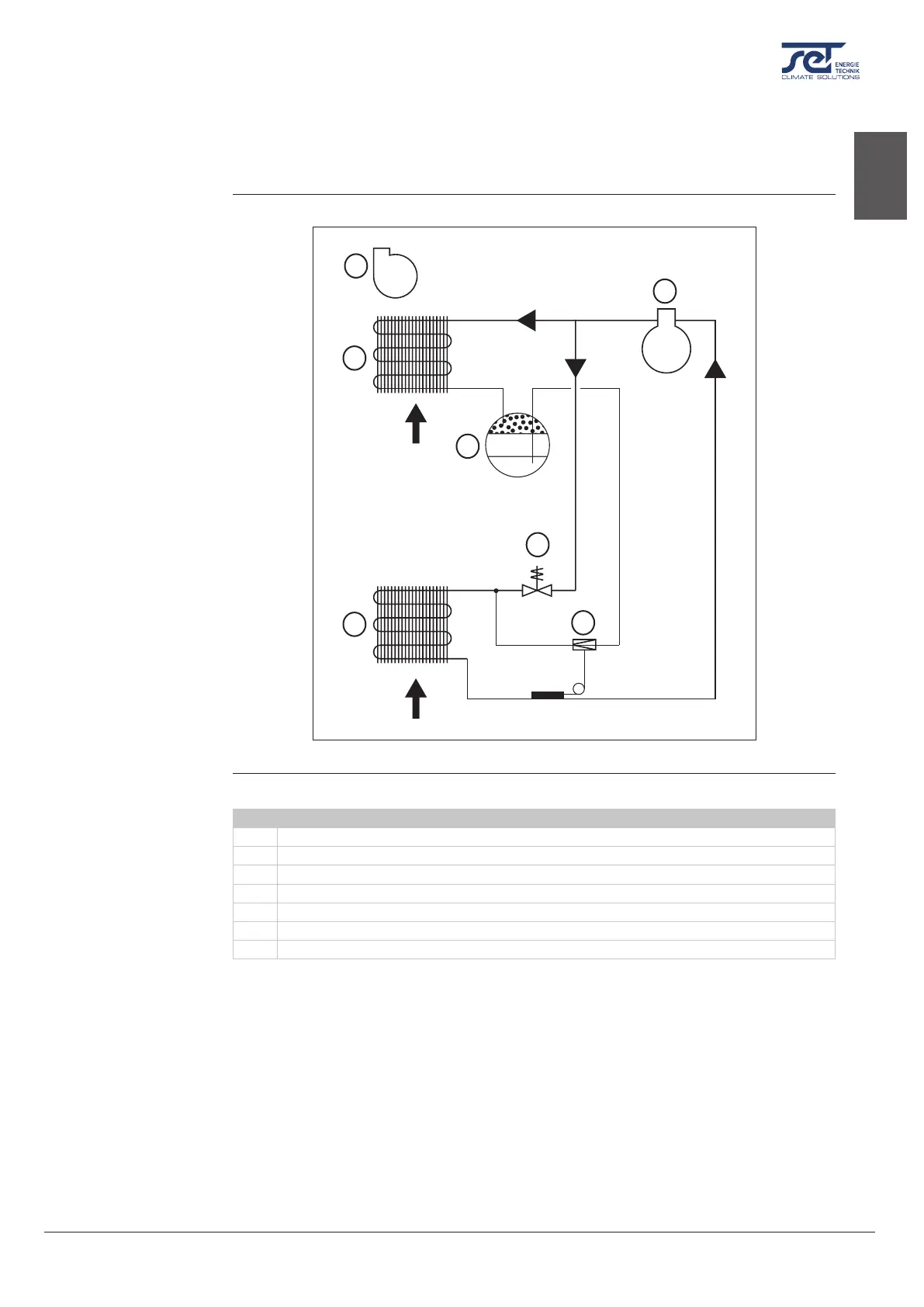

This illustration shows the cooling circuit of the SET (T) and SET (H) range.
2
3
4
5
6
7
1
Fig. 9
This table lists the dierent parts of the cooling circuit according to Fig. 9.
Pos. Description
1 Compressor
2 Evaporator
3 Air-cooled condenser
4 Thermostatic expansion valve
5 Receiver/liquid line drier
6 Solenoid valve for pressure equalization
7 Fan
Illustration
Description
