SET-2090
Technical Description
INTERNAL - NI CONFIDENTIAL
Description
The SET-2090 device is an experimental card for NI-SLSC and provides 32 differential inputs.
The input signals can be configured by customers. Each input channel can be tested,
conditioned, or measured in different ways. Various inductors, filters, pull-up, or pull-down
resistors can be used for this purpose. In standard configuration, the input signals are
transmitted directly to the output.
Circuitry

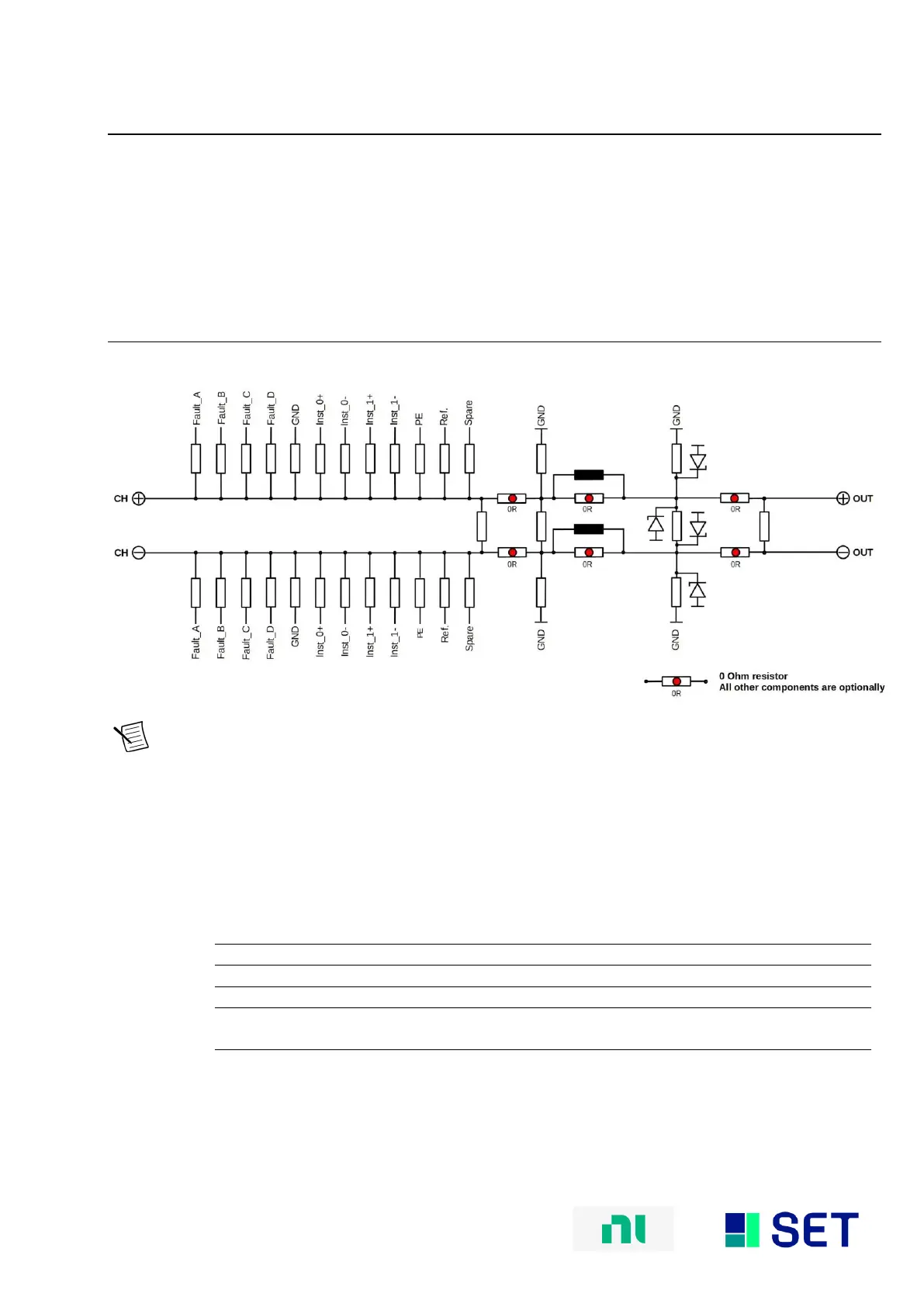

Diagram only shows one channel. All components without a labeling, are
optional.
The “Ref.” Signal from the block diagram below is each connected to the
corresponding Reference Signals on the Front connector. Per connector 4
Reference Signals are available, mapping each to four differential signals.
For example, the “Ref.” from channel “P0.0” is connected to the “Ref_0” signal
which is on “J1” and shared for channel “P0.0” to “P0.3”.
All voltages are relative to GND unless otherwise noted.
