3.27 FS-901-xx, FS-902-xx and FS-903-xx Footswitches
3.28 PBS-901-xx, PBS-902-xx and DPBS-900-xx Push Button Stations

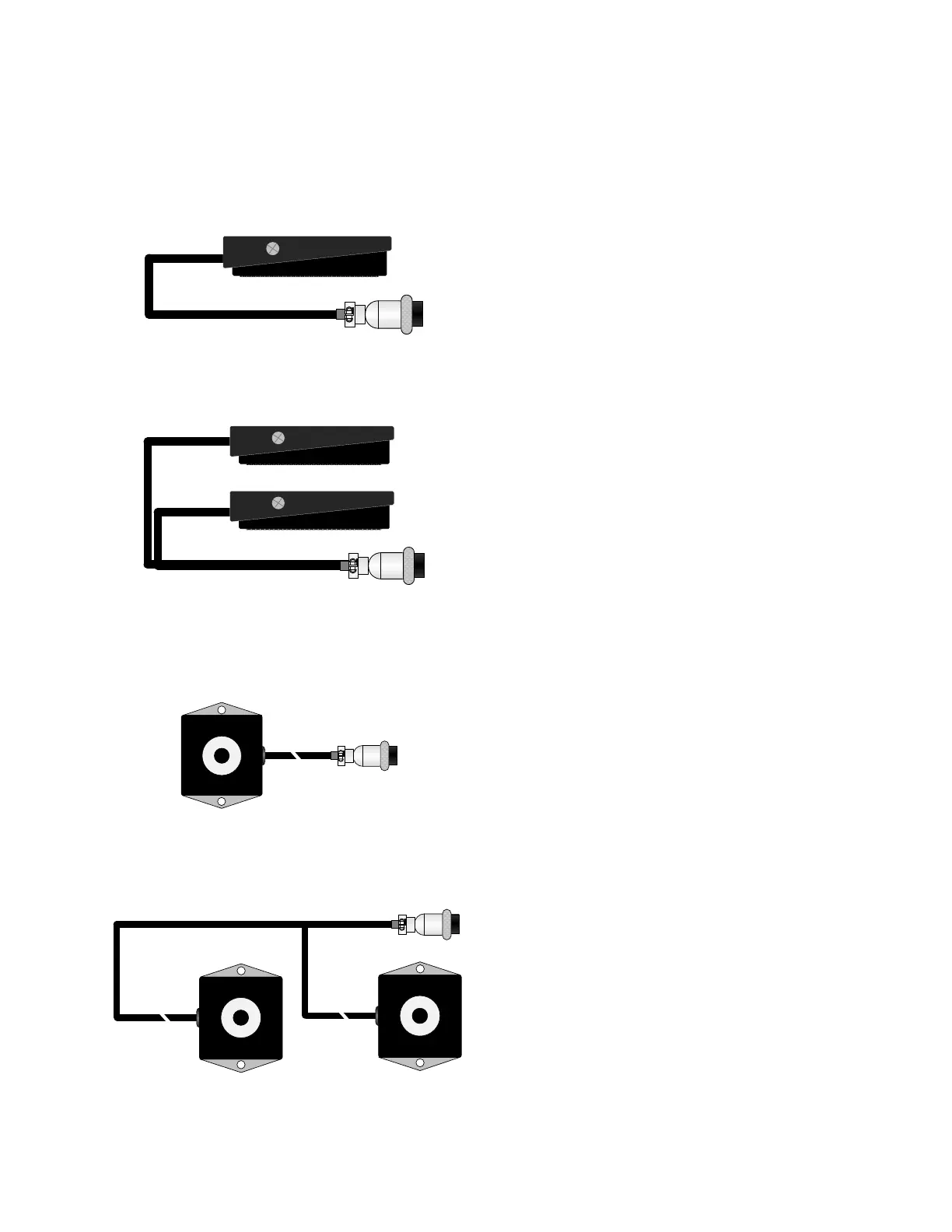

A footswitch can be mounted for the Captain (FS-901-
xx), Driver (FS-902-xx) or both (FS-903-xx). When a
single footswitch is mounted, it can be wired to key
either the Driver or Captain's position. Although the IM-
900 can be mounted in different orientations, the Driver
has a pre-determined port due to the fact the Driver's
Port is paralleled with the Pump Station Port. For this
reason, the footswitches are identified as keying the
Captain's Headset or the Driver’s Headset.
Check to make sure you have the correct footswitch
for the position before installing!
Push Button Stations can be mounted for the Captain
(PBS-901-xx), Driver (PBS-902-xx) or both (DPBS-900-
xx). When a single Push Button Station is mounted, it
can be wired to key either the Driver or Captain's
position. Although the IM-900 can be mounted in
different orientations, the Driver has a pre-determined
port due to the fact the Driver's Port is paralleled
with the Pump Station Port. For this reason, the
Push Button Stations are identified as keying the
Captain's Headset or the Driver’s Headset.
Check to make sure you have the correct Push
Button Station for the position before installing!
