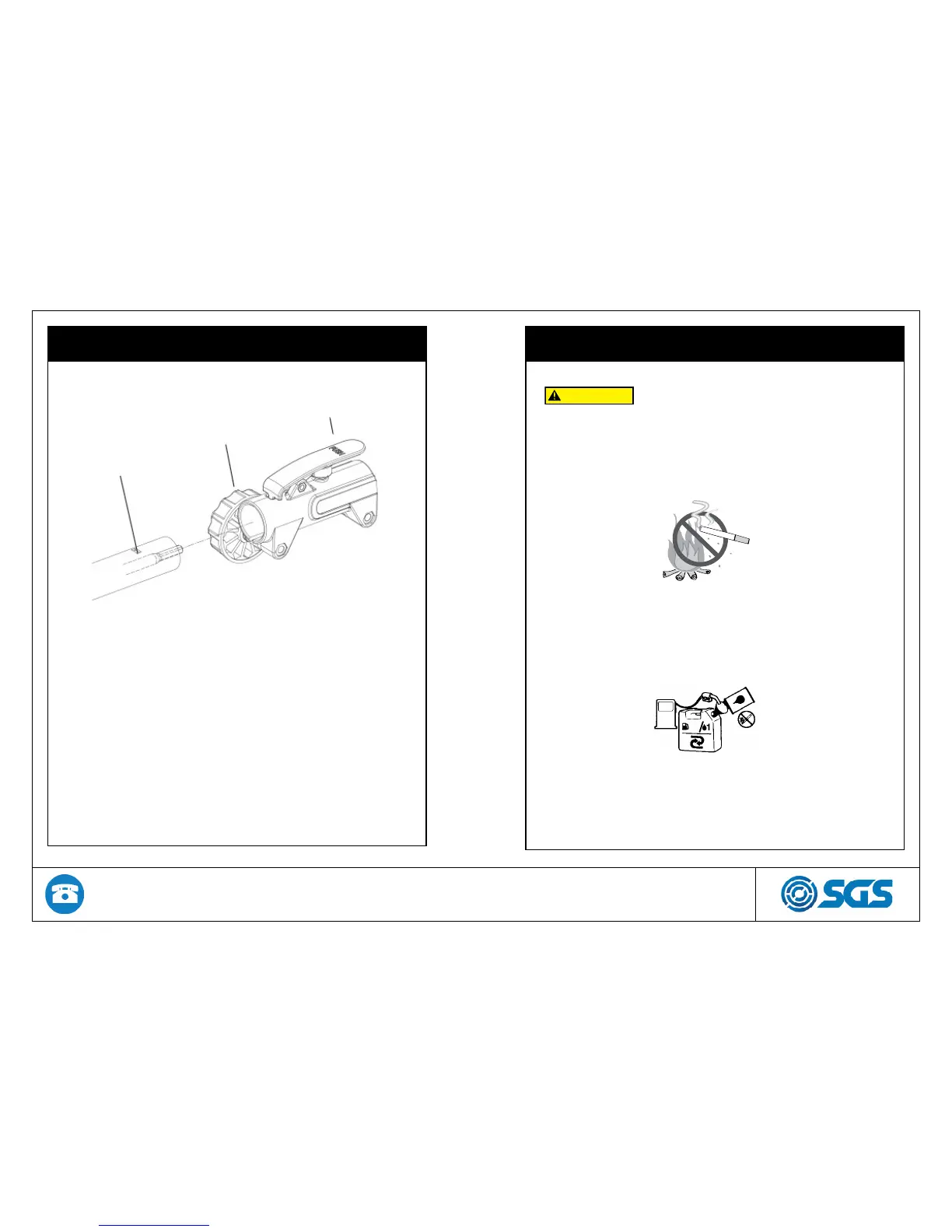

3. ASSEMBLY
Connecting the shaft
To connect the working shaft to the main shaft with the coupler:
1. Loosen the Locking Knob (A) counter clockwise so the
working shaft can be inserted into the tube coupler.
2. Press the Push Button (B) and gently rotate the working shaft
back and forth while inserting to make sure the drive shaft is
placed in position.
3. Release the Push Button to lock the hole (C) of the working
shaft tube. The Push Button is connected to a spring-loaded
detent that can snap the working tube in position
4. Turn the Locking Knob clock-wise to secure the connection.
C
A
B
4. FILLING WITH OIL AND FUEL
Petrol is flammable. Avoid smoking or bringing
any flame or sparks near fuel. Make sure to stop the engine
and allow it cool before refilling the unit. Select outdoor bare
ground for filling with fuel and move at least 3 m (10 ft) away
from the fuel filling point before starting the engine.
The engine is specially designed for air-cooled two stroke
mixed fuel use. Do not use BIA or TCW (2-stroke water-cool-
ing type) mixed oil.
RECOMMENDED MIXING
RATIO PETROL 40: OIL 1
WARNING
