BR PRESSURE WASHER OPERATOR’S MANUAL
19

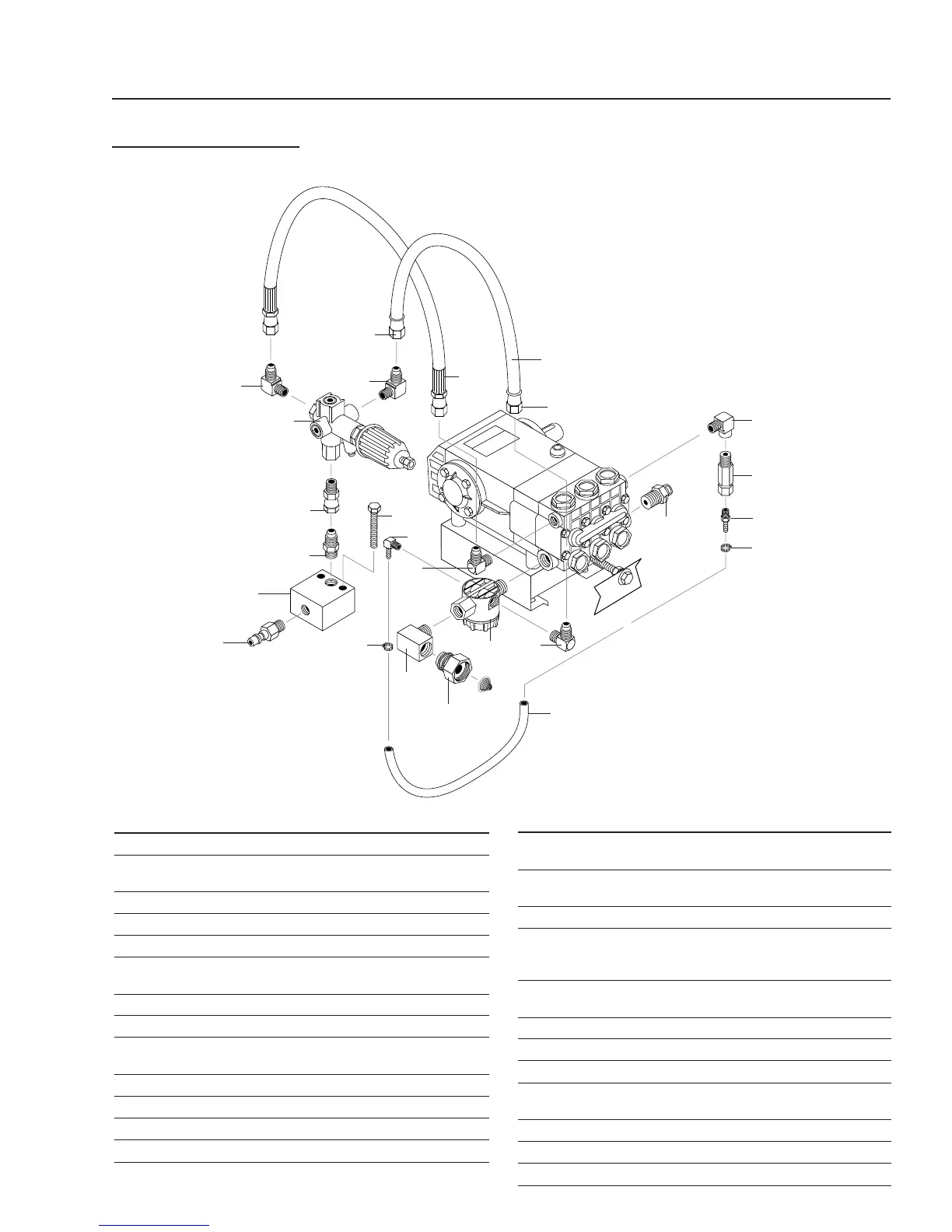

PUMP ASSEMBLY
353031, 353037, 353531, 353537, 304031, 304037, 404021, 404027, 503021, 503027
ITEM PART NO. DESCRIPTION QTY.
1 2-0053 Elbow, 1/2" JIC, 3/8", 90° 2
2 4-02047725 Hose, 3/8" x 25", 2 Wire
Pressure Loop 1
3 2-1105 Swivel, 1/2" JIC Fem, Push-On 2
4 2-1060 Elbow, 1/2" JIC x 3/8", 90° 1
5 4-02110000 Hose, 1/2", Push-On, per ft. 1.5 ft.
6 2-1089 Hose Barb, 1/4" Barb x 1/4" Pipe,
90° 1
7 2-9000 Clamp, Screw #4 2
8 2-1024 Elbow, 1/2" Street, Brass 1
9 2-10942 Swivel, 1/2" MP x 3/4" GHF
w/Strainer 1
10 2-1908 Strainer, 1/2" General, Inline 1
11 2-1061 Elbow, 1/2" JIC x 1/4", 90° 1
12 2-30082 Pump Protector, 1/2" 1
13 4-02100000 Hose, 1/4", Push-On, Fuel Line 1 ft.
1
8
21
22
23,24,25
20
19
18
3
10
11
9
1
2
12
13
16
15
14
7
6
7
5
4
3
ITEM PART NO. DESCRIPTION QTY.
14 2-1084 Hose Barb, 1/4" Barb x 1/8",
Male 1
15 2-3100544 Valve, E-Z Start,
3/8" MPT x 1/8" FPT 1
16 2-0031 Elbow, 3/8" Street 1
18 5-3207 Unloader, AL-VRT 606
(353031, 353037, 353531,
353537, 503021, 503027) 1
5-3208 Unloader, AL-VRT 607 (304031,
304037, 404021, 404027) 1
19 2-0079 Swivel, 1/2" JIC Fem x 3/8" Male1
20 2-0051 Nipple, 1/2" JIC x 3/8" Pipe 1
21 2-2007 Nipple, 3/8" x 3/8" NPT ST Male1
22 95-07101216/B Block, Unloader, 3/8" x 3/8"
Brass 1
23 90-1020 Bolt, 3/8" x 2", NC HH 2
24 90-4002 Washer, 3/8", SAE, Flat 2
25 90-2002 Nut, 3/8", ESNA, NC 2
