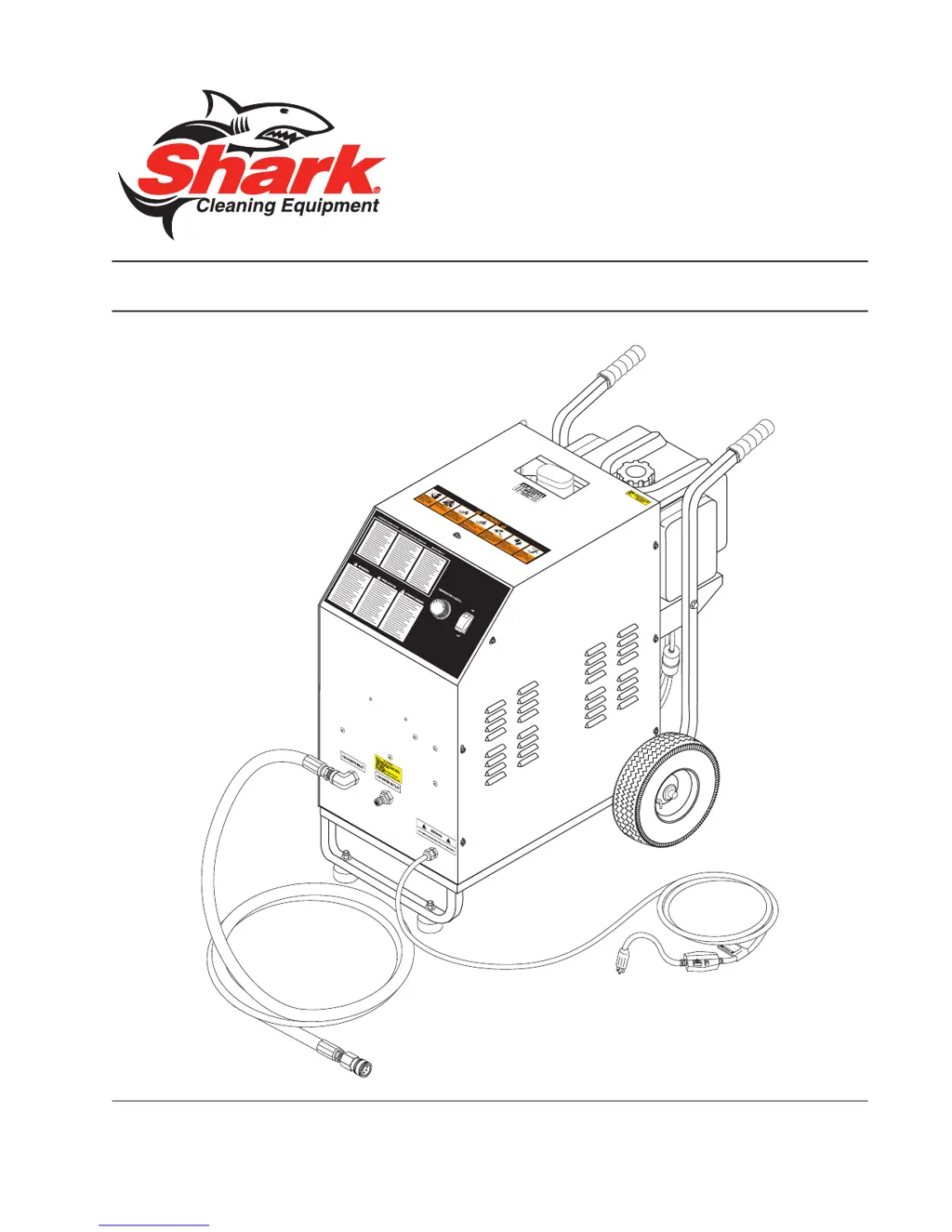

MODEL: HP
OPERATING INSTRUCTION
AND PARTS MANUAL
For technical assistance or the SHARK dealer nearest you
visit our website at www.shark-pw.com
HP-5030D
97-6133

Table of Contents

Questions and Answers

  • L
    lsotoAug 22, 2025
    What to do if the water temperature is too hot on my Shark HP-5030D Pressure Washer?
    • B
      brian18Aug 22, 2025
      If the water temperature of your Shark Pressure Washer is too hot, several factors could be responsible. The incoming water might already be warm or hot, so try lowering its temperature. High fuel pump pressure can also cause overheating, so reduce the fuel pressure. A defective fuel pump should be replaced. If the detergent line is sucking air, tighten all clamps and inspect the line for holes. A defective high limit switch (thermostat) should be replaced. Ensure you are using the correct fuel nozzle size. Insufficient water supply or restricted water flow can also lead to overheating, so check the GPM to the machine and inspect the nozzle for obstructions and proper size.
  • K
    Kimberly PruittAug 25, 2025
    How to fix low water temperature on Shark HP-5030D?
    • L
      Laura TaylorAug 26, 2025
      If your Shark Pressure Washer has a low water temperature, the issue might stem from several causes. Improper fuel or water in the fuel could be the culprit, requiring you to drain the fuel tank and replace it with the correct fuel. Low fuel pressure can also lead to this problem, so increase the fuel pressure. A weak fuel pump may be the cause; check its temperature and replace it if needed. A partially clogged fuel filter should be replaced as well. Soot or lime build-up on the coils can also affect water temperature, so clean the coils with a soot remover or coil cleaner. Finally, ensure you are using the correct burner nozzle according to the specifications.
  • J
    John KhanAug 30, 2025
    Why is the water temperature too hot on my Shark HP-5030D Pressure Washer?
    • G
      gallegosgarrettAug 30, 2025
      The water temperature of your Shark Pressure Washer might be too hot due to: * Incoming water being too warm. Try lowering the incoming water temperature. * Fuel pump pressure being too high. Lower the fuel pressure. * A defective fuel pump. Replace the fuel pump. * The detergent line sucking air. Tighten all clamps and check the detergent line for holes. * A defective high limit switch (thermostat). Replace it. * An incorrect fuel nozzle size. Consult the Burner Nozzle section for the correct size. * Insufficient water supply. Check the GPM (gallons per minute) to the machine. * Restricted water flow. Check the nozzle for obstructions and ensure it is the proper size.
  • D
    daisy57Sep 2, 2025
    Why is the water temperature low on my Shark HP-5030D?
    • S
      Sylvia MitchellSep 2, 2025
      The water temperature might be low on your Shark Pressure Washer due to the following reasons: * Improper fuel or water in the fuel. Drain the fuel tank and replace it with the correct fuel. * Low fuel pressure. Increase the fuel pressure. * A weak fuel pump. Check the fuel pump temperature and replace the pump if needed. * A partially clogged fuel filter. Replace the filter as necessary. * Soot build-up on the coils. Clean the coils with a soot remover. * Lime build-up on the coils. Clean the inside of the coils using a coil cleaner. * An improper burner nozzle. Consult the specifications for the correct nozzle.
  • J
    Jeffery FarmerSep 7, 2025
    What to do if my Shark Pressure Washer smokes?
    • K
      Kevin JonesSep 7, 2025
      If your Shark Pressure Washer is smoking, it could be due to several reasons. First, drain the tank and replace any contaminated fuel. Adjust the fuel pump pressure to the correct specifications if it's too low. Inspect fuel lines for leaks or air bubbles, tightening or replacing them as necessary. Replace a plugged or dirty burner nozzle, or one with a faulty spray pattern. Remove and thoroughly clean heavy soot accumulation on the coils and burner assembly. Realign misaligned electrodes to the correct specifications. Replace the fuel filter if it's partially clogged. Check the smoke stack for any obstructions. Clean soot buildup on the coils with a soot remover, and clean lime buildup inside the coils using a coil cleaner.
  • D
    Devin MccartyNov 15, 2025
    Why won't the burner light on my Shark Pressure Washer?
    • E
      Eric GonzalezNov 16, 2025
      If the burner on your Shark Pressure Washer won't light, there are several potential causes. First, ensure all wire connections are clean, tight, and unbroken. If the burner motor thermal protector has tripped, inspect voltage, connections, and extensions. Also, check the fuel pump shaft for any binding that could cause the motor to overheat. Check the burner switch for continuity. Heavy sooting on the coil and burner can interrupt airflow and short electrodes, so clean as required. Verify that the electrode setting is correct. Ensure fuel is reaching the combustion chamber by checking the fuel pump flow and the solenoid flow switch. Test the fuel solenoid for magnetic pull. A clogged burner nozzle should be replaced. Make sure the water is turned on to activate the burner flow switch. Fin...
  • R
    Ruth MedinaNov 18, 2025
    Why is my Shark HP-5030D Pressure Washer smoking?
    • J
      James SmithNov 18, 2025
      If your Shark Pressure Washer is smoking, it could be due to several reasons. It might be caused by improper fuel or water in the fuel, in which case you should drain the tank and replace the contaminated fuel. Low fuel pressure can also cause smoking, so adjust the fuel pump pressure to the correct specifications. Check for air leaks in the fuel lines and tighten or replace them as necessary. A plugged or dirty burner nozzle, or a faulty burner nozzle spray pattern, should be replaced. Heavy soot accumulation on the coils and burner assembly requires removal and thorough cleaning. Misaligned electrodes should be realigned to specifications. A partially clogged fuel filter should be replaced. Check for any obstruction in the smoke stack and remove any blockage. Soot or lime build-up on the...
  • P
    Patrick LawsonNov 26, 2025
    What to do if my Shark HP-5030D Pressure Washer burner will not light?
    • M
      Maria NortonNov 26, 2025
      If the burner on your Shark Pressure Washer isn't lighting, consider these potential causes and solutions: * Check for disconnected or shorted electrical wiring. Ensure all wire contacts are clean and tight, with no breaks in the wire. * Inspect if the burner motor thermal protector has tripped. If so, check the voltage, connections, and extensions for any issues. Also, verify the fuel pump shaft rotation for any binding that could cause the motor to overheat. * Examine the on/off switch for defects by checking continuity through the burner switch. * Clean heavy soot accumulation on the coil and burner to ensure proper airflow and prevent electrode shorting. * Ensure the electrode setting is correct, clean, and tested according to the diagram in the operator’s manual. * Verify...
