OPERATOR’S MANUAL
PRESSURE WASHER
16

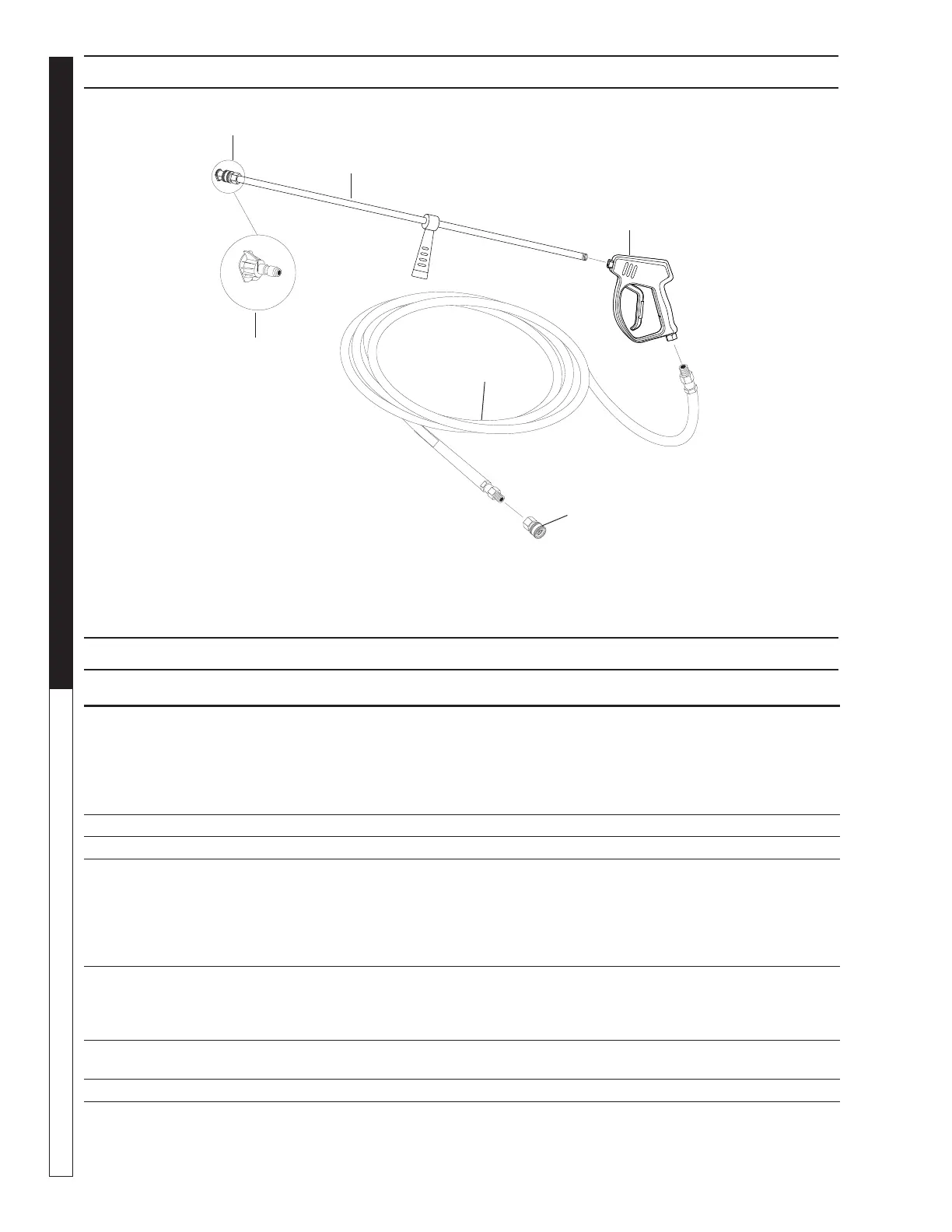

HOSE & SPRAY GUN ASSEMBLY
HOSE & SPRAY GUN ASSEMBLY PARTS LIST
1
2
3
5
ITEM PART NO. DESCRIPTION QTY
1 8.739-133.0 Hose, 3/8” X 25’ 1 Wire Tuff-Skin (5 HP PD Models) 1
8.739-026.0 Hose, 3/8” X 50’ 1 Wire Tuff-Skin (6.5 HP PD Models) 1
8.739-106.0 Hose, 3/8” X 25’ 1 Wire Tuff-Skin (5 HP DA Models) 1
8.739-011.0 Hose, 3/8” X 50’ 1 Wire Tuff-Skin (6.5 HP DA Models) 1
8.739-124.0 Hose, 3/8” X 25’ 1 Wire Tuff-Skin (5 HP Xpert & DD Models) 1
8.739-021.0 Hose, 3/8” X 50’ 1 Wire Tuff-Skin (6.5 HP Xpert and DD Models) 1
2 8.750-247.0 Gun, M407 1
3 8.783-039.0 Wand, 30", with side grip 1
4 9.104-024.0 Quick connect nozzle Kit(030) 1
▲9.802-287.0 Nozzle, 0003, Red 1
▲9.802-288.0 Nozzle, 0015, Yellow 1
▲9.802-289.0 Nozzle, 0025, Green 1
▲8.932-998.0 Nozzle, 0040, White 1
▲9.802-311.0 Nozzle, Black, Soaper 1
5 9.802-166.0 Coupler, 3/8" Female, Brass 1
▲8.702-088.0 O-Ring, Viton, 3/8” 1
8.707-182.0 Coupler, Twist Connect, M22-Fx3/8"" FNP (Legacy Pump Models) 1
▲8.704-036.0 O-Ring, Viton, Twist Connect 1
6 9.802-164.0 Coupler, ¼” Female Brass 1
▲8.702-084.0 O-Ring, Viton, ¼” 1
▲ Not shown
4
6
