4 TOLL FREE: 1-800-798-7398

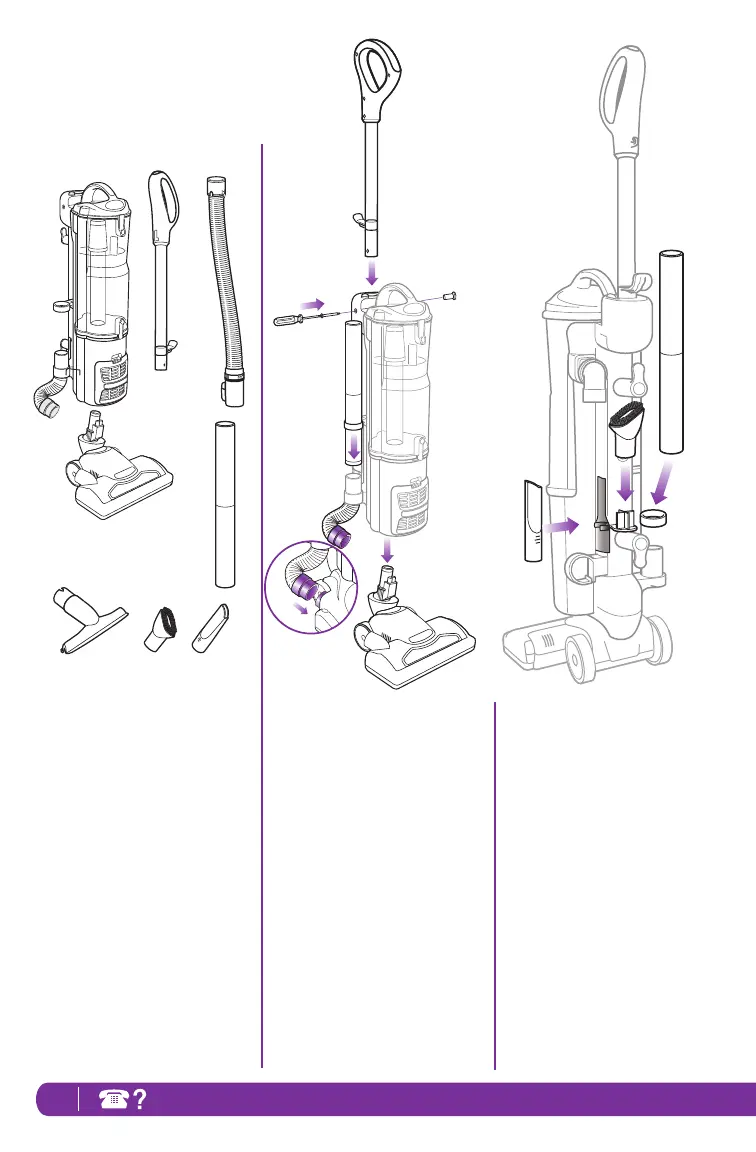

WHAT’S IN THE BOX YOU JUST
OPENED:
A Vacuum Body
B Floor Power Nozzle
C Handle Assembly
D Super Stretch Hose
E Cleaning Wand
F Wide Upholstery Tool
G Dusting Brush
H Crevice Tool
Getting Started
Your Shark
®
Navigator
®
is
easy to assemble:
1 Lay your vacuum body on a
level surface.
2 Slide the electrical connection
from the power nozzle into the
main body to click into place.
3 Connect the hose from the main
body to the power nozzle; push
with a slight turning motion to
create a snug fit.
4 Slide the handle assembly
into the upright unit aligning
the hose hook on the handle
assembly with the power cord
hooks on the back of the unit.
5 Secure the handle assembly in
place with included nut/bolt
(shipped attached to handle
assembly).
6 Place the vacuum in the upright
position.
7 Insert the Cleaning Wand into
the center post on the tool
caddy.
8 Store the Crevice Tool, Dusting
Brush on the back of the unit.
A
C
E
H
B
G
D
F
8
4
5
3
7
2
