Dimension: 176 x 250 mm
E 22
Printelligence (M) Sdn. Bhd
ENGLISH
If your outdoor antenna uses a 75-ohm coaxial cable with a standard
DIN45325 plug (IEC 169-2), plug it into the antenna jack at the rear of
the set.
If your outdoor antenna uses a 300-ohm twin-lead flat feeder, connect a
300-ohm to 75-ohm impedance converter and plug it into the antenna
jack at the rear of the set.
Connecting to an antenna via a VCR
You can also connect the TV set to the tuner on a VCR using the connection shown below.
When using the RF terminal connection, set the TV to channel zero to make initial adjustments for the VCR.
Turn off the power on the TV set and the VCR being connected before making the above connections.
Be sure the cord plugs are fully inserted in the connection terminals.
See the operation manual of your VCR for connection details.

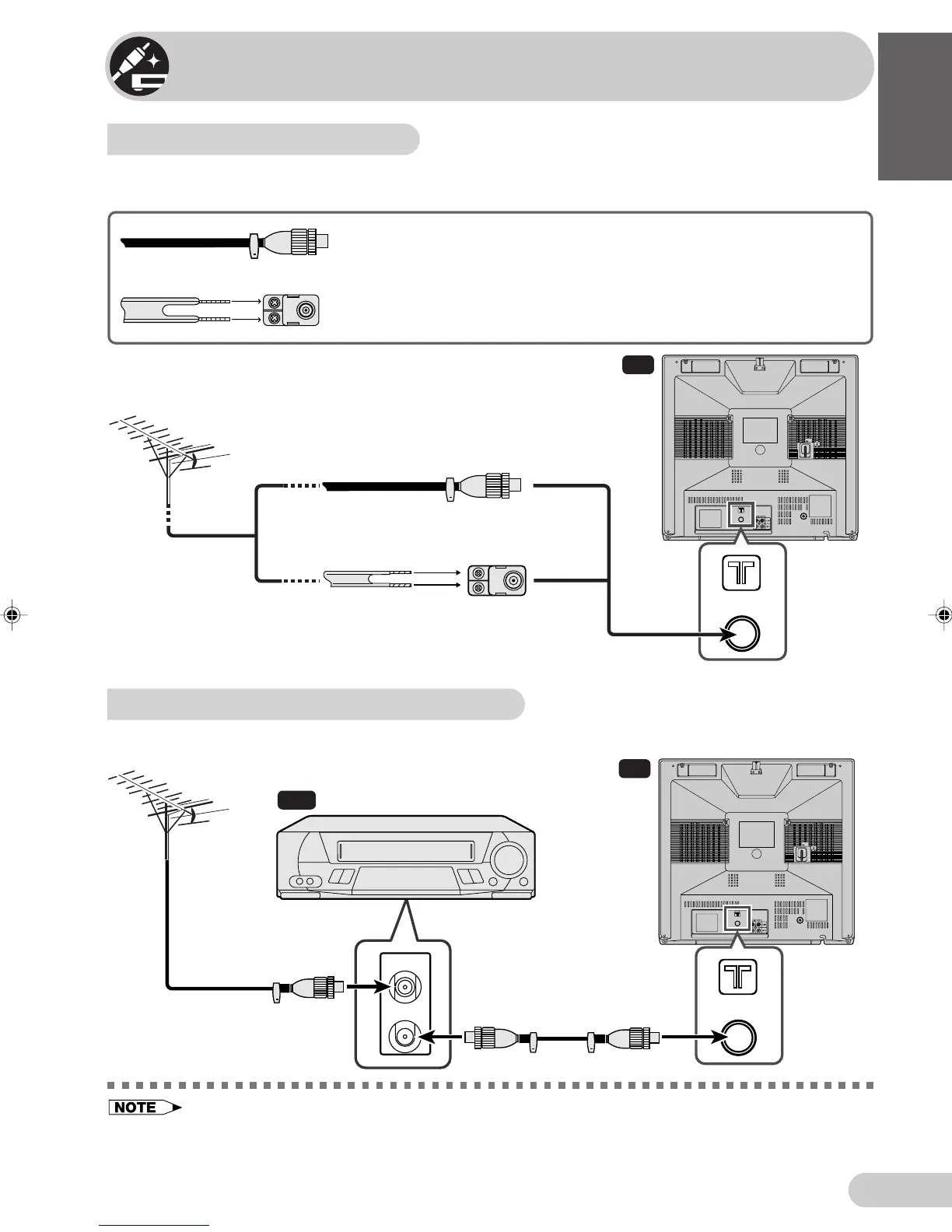

Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of
the types of connections that are used for coaxial and feeder cables.
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable) (not supplied)
300-ohm twin-lead
flat feeder
(not supplied)
75-ohm impedance
converter
(not supplied)
TV
Antenna in
TV
Antenna in
VCR
To antenna in
terminal
To RF out
terminal
Connections
21AG1-SMK3(22-26)EN 2/11/04, 3:16 PM22
