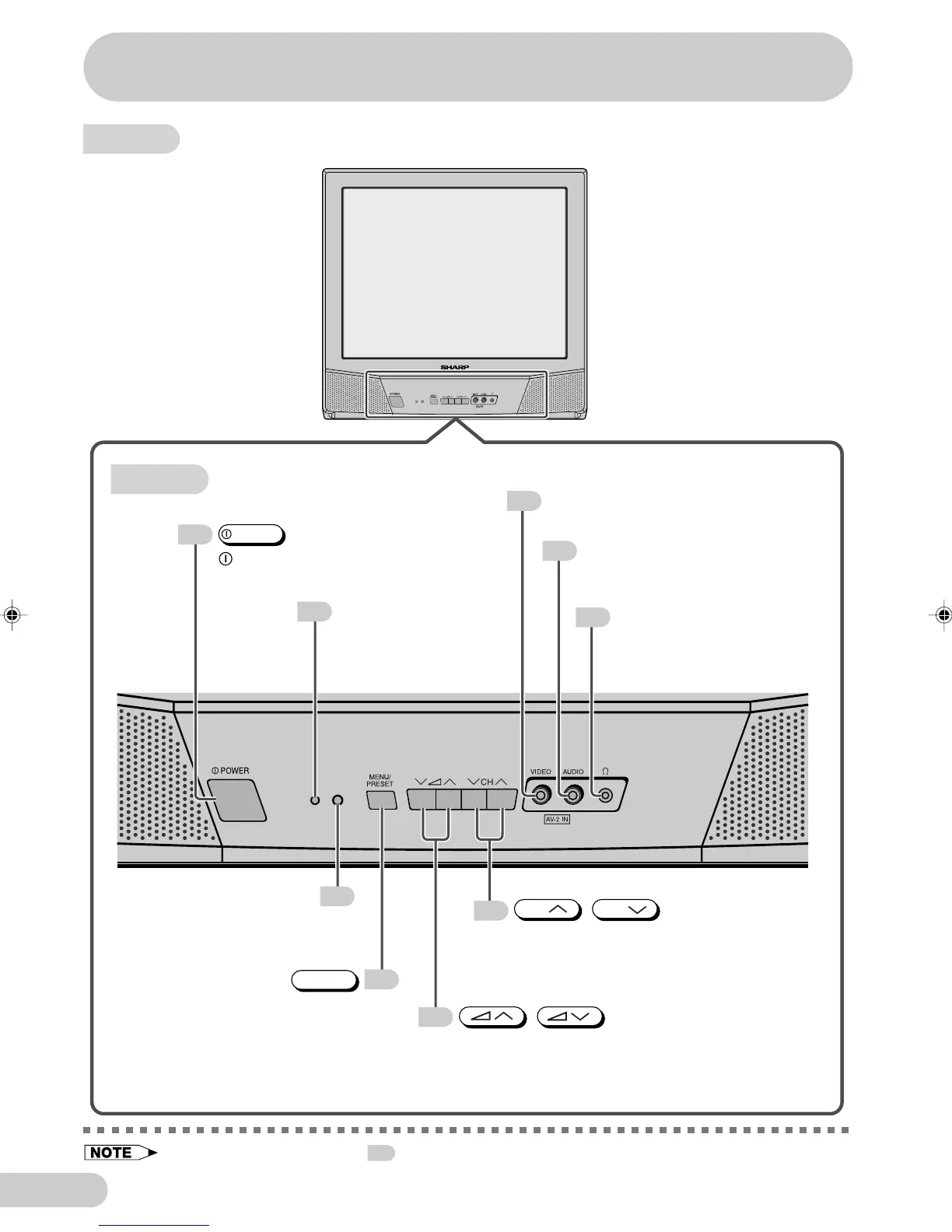

POWER
POWER switch
Turns on and off the main power.
Video input terminal (AV-2)
Connects to a camcorder, video game, etc.
23
Audio input terminal (AV-2)
Connects to a camcorder,
video game, etc.
23
Headphone jack
Use to listen to the audio with
headphone.
9
Infrared sensor window
Receives the infrared wave
from the remote control.
6
MENU/PRESET button
Tunes the channels.
Used for MENU setup.
12
MENU/PRESET
Volume up/down buttons
Adjusts the volume.
Makes adjustments in PRESET.
8
/
8
Channel up/down buttons
Selects the channels.
Tunes or sets the channels.
CH
CH
/
Power indicator
Power can be turned on by
the remote control when
the indicator is dimly.
8
8
TV set
• When using headphone, see
9
.
Part names
