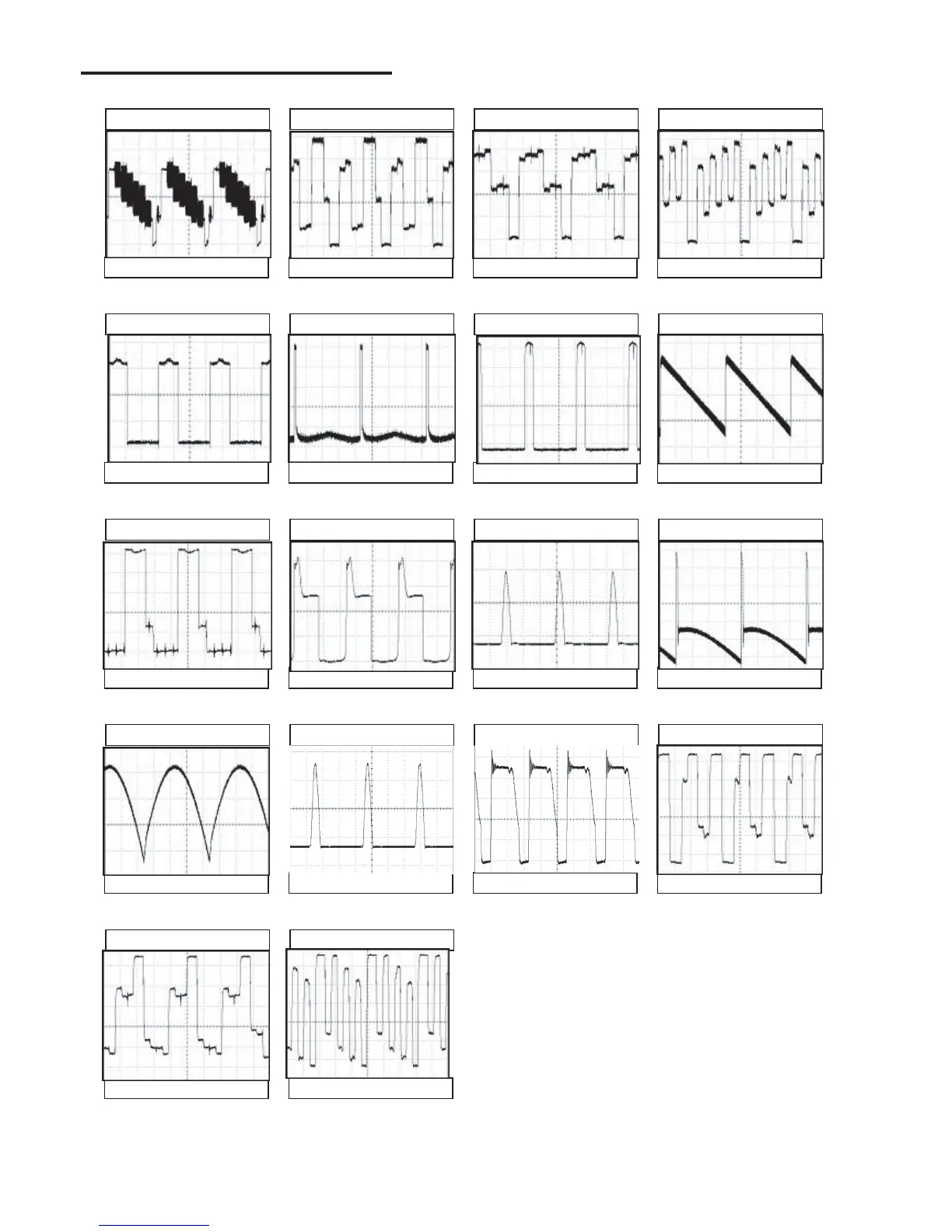

Sharp 21ES251E - TECHNICAL DIAGRAMS AND DATA; Waveform Examples

18
(1)1.78 Vp-p
Horiz. Rate
(2)4.80 Vp-p
Horiz. Rate
(3)3.84 Vp-p
Horiz. Rate
(4)4.76 Vp-p
Horiz. Rate
(5)3.16 Vp-p
Horiz. Rate
(6)4.66 Vp-p
(7)5.60 Vp-p
Horiz. Rate
(8)1.57 Vp-p
Vert. Rate
(9)2.60 Vp-p
Horiz. Rate
(10)20.80 Vp-p
Horiz. Rate
(11)1110 Vp-p
Horiz. Rate
(12)63.40 Vp-p
Vert. Rate
(13)7.52 Vp-p
Vert. Rate
(14)147.00 Vp-p
Horiz. Rate
(15)542.00 Vp-p
-
(16)118.00 Vp-p
Horiz. Rate
Vert. Rate
(18)118.80 Vp-p
Horiz. Rate
(17)96.4 Vp-p
Horiz. Rate
WAVE FORM
