Using the Video and Audio Input Terminals
VIDEO EQUIPMENT
L Connecting video equipment for playback of video material.
• When the television is connected to video equipment as shown below, the material being played
back on the video equipment can be seen on the television screen.

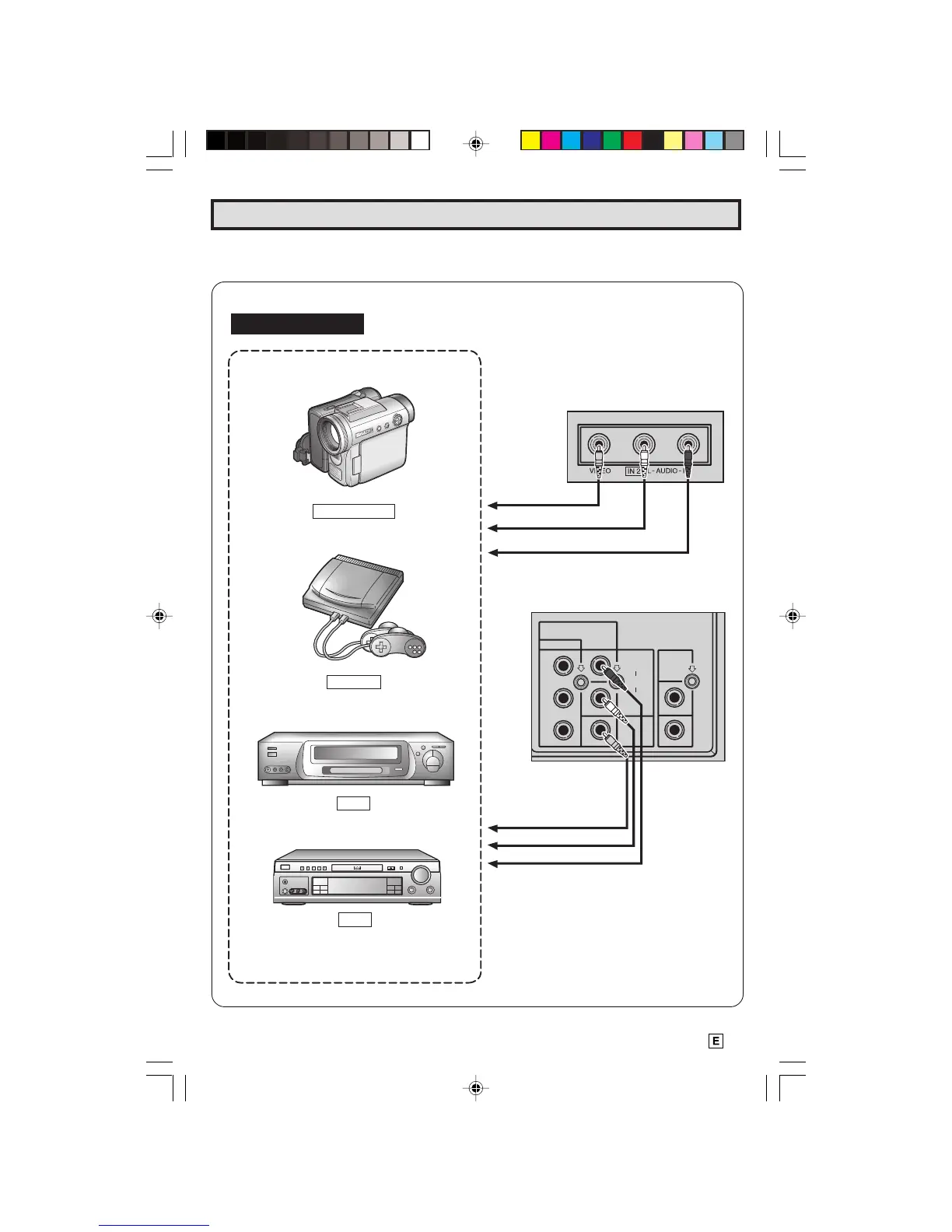

Connecting video device equipped with video output terminals.
CONNECTIONS
DVD
CAMCORDER
TV GAME
VCR
Yellow : To video input terminal
White : To audio input (L) terminal
Red : To audio input (R) terminal
P R
P B
Y
IN 1
LINE
OUT
R
L
AUDIO
VIDEO
R
L
COMPONENT
(Rear connection
terminals of TV)
To VIDEO OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
(Front connection
terminals of TV)
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
(Pull open for inside door)
To VIDEO OUTPUT
