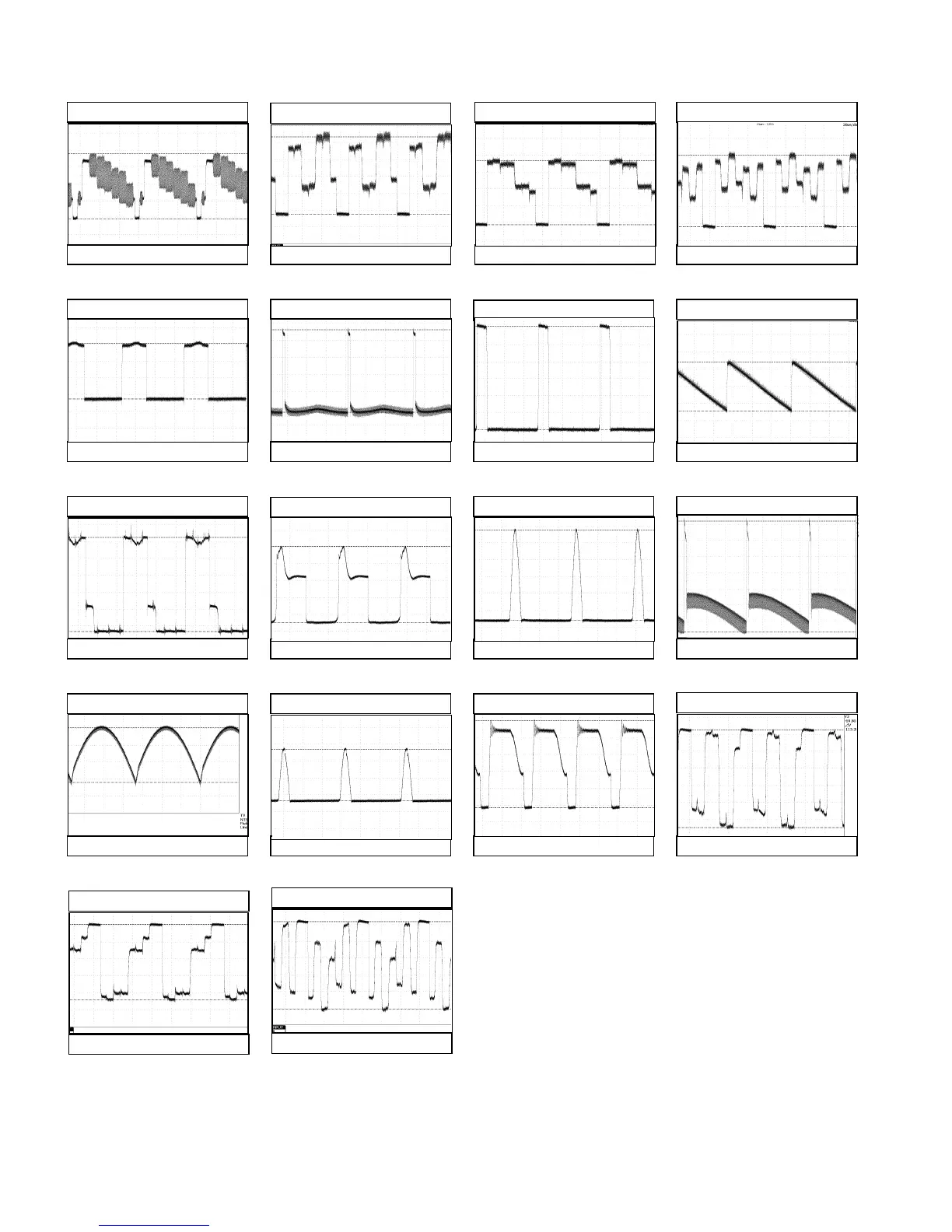

CHAPTER 6. WAVEFORMS
(1)1.94 Vp-p
Horiz. Rate
(2)4.60 Vp-p
Horiz. Rate
(3)3.79 Vp-p
Horiz. Rate
(4)4.20 Vp-p
Horiz. Rate
(5)3.30 Vp-p
Horiz. Rate
(6)4.88 Vp-p
(7)6.12 Vp-p
Horiz. Rate
(8)1.45 Vp-p
Vert. Rate
(9)2.79 Vp-p
Horiz. Rate
(10)22.65 Vp-p
Horiz. Rate
(11)1074 Vp-p
Horiz. Rate
(12)68.8 Vp-p
Vert. Rate
(13)6.48 Vp-p
Vert. Rate
(14)153.00 Vp-p
Horiz. Rate
(15)517.00 Vp-p
Horiz. Rate
(16)115.20 Vp-p
Horiz. Rate
Vert. Rate
(18) 104.80 Vp-p
Horiz. Rate
(17)88.8 Vp-p
Horiz. Rate
