Sharp 29A-SX1 - Replacement Parts List

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
71
29A-SX1
29A-SX5
29A-SX8
INTEGRATED CIRCUITS
IC300 VHiAN7396K/-1 R AN7396K BC
IC301 VHiNJM2168M-1 R NJM2168M AH
IC302 VHiBA7655AF-1 R BA7655AF AG
IC303 RH-iX3232CEZZ R IX3232CE AV
IC304 VHiNJM4560M-1 R NJM4560M AG
IC305 VHiBA7655AF-1 R BA7655AF AG
IC307 VHiTC4066BF1E R TC4066BF AF
IC400 VHiNJM2534M-1 R NJM2534M AF
IC401 VHiTA1218AN-1 R TA1218AN AX
IC402 VHiNJM2243M-1 R NJM2243M AF
IC600 VHiNJ78L09U-1 R NJM78L09UA AE
IC601 VHiNJ78L12U-1 R NJ78L12U AE
IC602 VHiM51497L/-1 R M51497L AL
IC800 VHiTA8772AN-1 R TA8772AN AV
IC801 RH-iX3323CEZZ R IX3323CE BB
IC802 VHiAN5385K/-1 R AN5385K AV
IC803 VHiNJM2284M-1 R NJM2284M AF
IC900 VHiTA1229N/-1 R TA1229N AX
IC1000 RH-iX3275CEN2 R IX3275CE AZ
IC1001 VHiM24C08B/-1 R M24C08B AM
IC1002 VHiPST994C/-1 R PST994C AD
IC1003 VHiM62334FP-1 R M62334FP AH
IC1300 VHiTDA7482/-1 R TDA7482, R-Out AR
IC1301 VHiTDA7482/-1 R TDA7482, L-Out AR
IC5400 VHiTC9090AN-1 R TC9090AN BC
TRANSISTORS
Q200 VS2SB709A//-1 R 2SB709A AA
Q201 VS2SD601A//-1 R 2SD601A AC
Q202 VS2SD601A//-1 R 2SD601A AC
Q203 VS2SB709A//-1 R 2SB709A AA
Q204 VS2SD601A//-1 R 2SD601A AC
Q205 VS2SD601A//-1 R 2SD601A AC
Q206 VS2SD601A//-1 R 2SD601A AC
Q302 VS2SD601A//-1 R 2SD601A AC
Q303 VS2SD601A//-1 R 2SD601A AC
Q304 VS2SD601A//-1 R 2SD601A AC
Q305 VS2SD601A//-1 R 2SD601A AC
Q306 VS2SD601A//-1 R 2SD601A AC
Q307 VS2SD601A//-1 R 2SD601A AC
Q308 VS2SD601A//-1 R 2SD601A AC
Q309 VS2SD601A//-1 R 2SD601A AC
Q310 VS2SD601A//-1 R 2SD601A AC
Q311 VS2SD601A//-1 R 2SD601A AC
Q400 VS2SD601A//-1 R 2SD601A AC

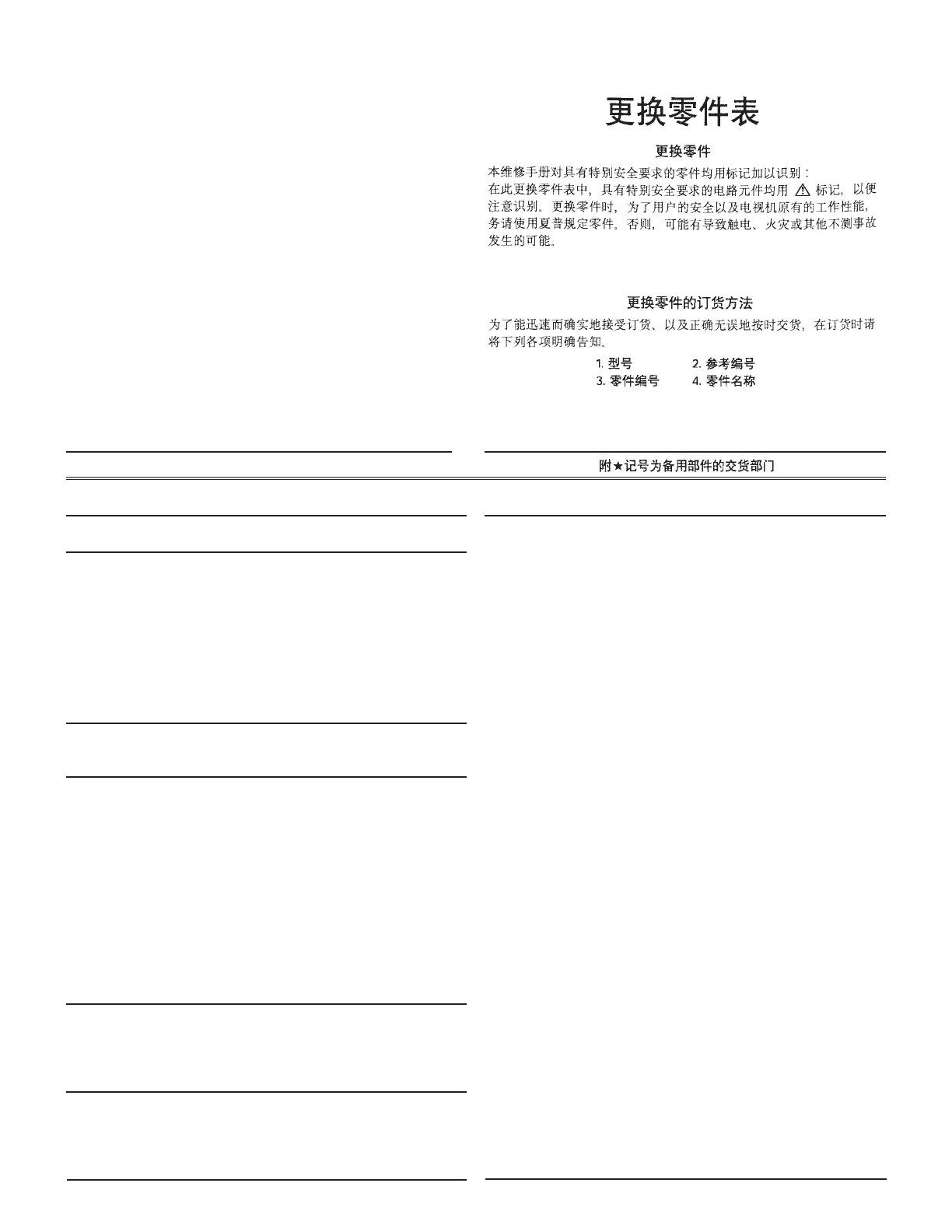

REPLACEMENT PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
are identified in this manual; electrical components having such
features are identified by "å" in the Replacement Parts Lists.
The use of a substitute replacement part which does not have the
same safety characteristics as the factory recommended replace-
ment parts shown in this service manual may create shock, fire or
other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
MARK ★ : SPARE PARTS-DELIVERY SECTION.
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PICTURE TUBE
å VB68KYN690X*S R Picture Tube CV
å RCiLG0051PEZZ R ADG Coil AV
å DY RCiLH0110PEN1 R Deflection Yoke BQ
LHLDW0003PEKZ R ADG Coil Holder, x 4 AB
LHLDW1075PEKZ R ADG Fix Holder AC
PMAGF3038CEZZ R Purity Magnat AL
PMAGG3002CEZZ R Magnet AC
PSPAG0003PEZZ R Wedge (Gum), x 3 AD
å QEARC2901PEZZ R Grounding Strap AK
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
PWB-A DUNTK9849FMV0 - Main Unit(29A-SX8B) —
PWB-A DUNTK9849WEV1 - Main Unit(29A-SX5C/5Z) —
PWB-A DUNTK9849FMV2 - Main Unit(29A-SX1F/1G) —
PWB-B DUNTK9847FMV0 - Power Unit(29A-SX8B) —
PWB-B DUNTK9847FMV1 - Power Unit(29A-SX5C) —
PWB-B DUNTK9847FMV2 - Power Unit(29A-SX1F/1G) —
PWB-B DUNTK9847FMV4 - Power Unit(29A-SX5Z) —
PWB-C DUNTK9848FMV0 - CRT Unit —
PWB-D DUNTK9668FMV4 - NICAM/IGR Unit —
(29A-SX8B)
PWB-D DUNTK9668FMV5 - NICAM/IGR Unit —
(29A-SX5C/5Z)
PWB-E DUNTK8558FMV8 - TEXT Unit(29A-SX5C/5Z) —
PWB-A DUNTK9849FMV0(29A-SX8B)
PWB-A DUNTK9849WEV1(29A-SX5C/5Z)
PWB-A DUNTK9849FMV2(29A-SX1F/1G)
MAIN UNIT
TUNER
NOTE: THE PARTS HERES SHOWN ARE SUPPLIED AS AN
ASSEMBLY NOT INDEPENDENTLY.
å TU200 VTUVTBT6ED265 R VHF Tuner BH
