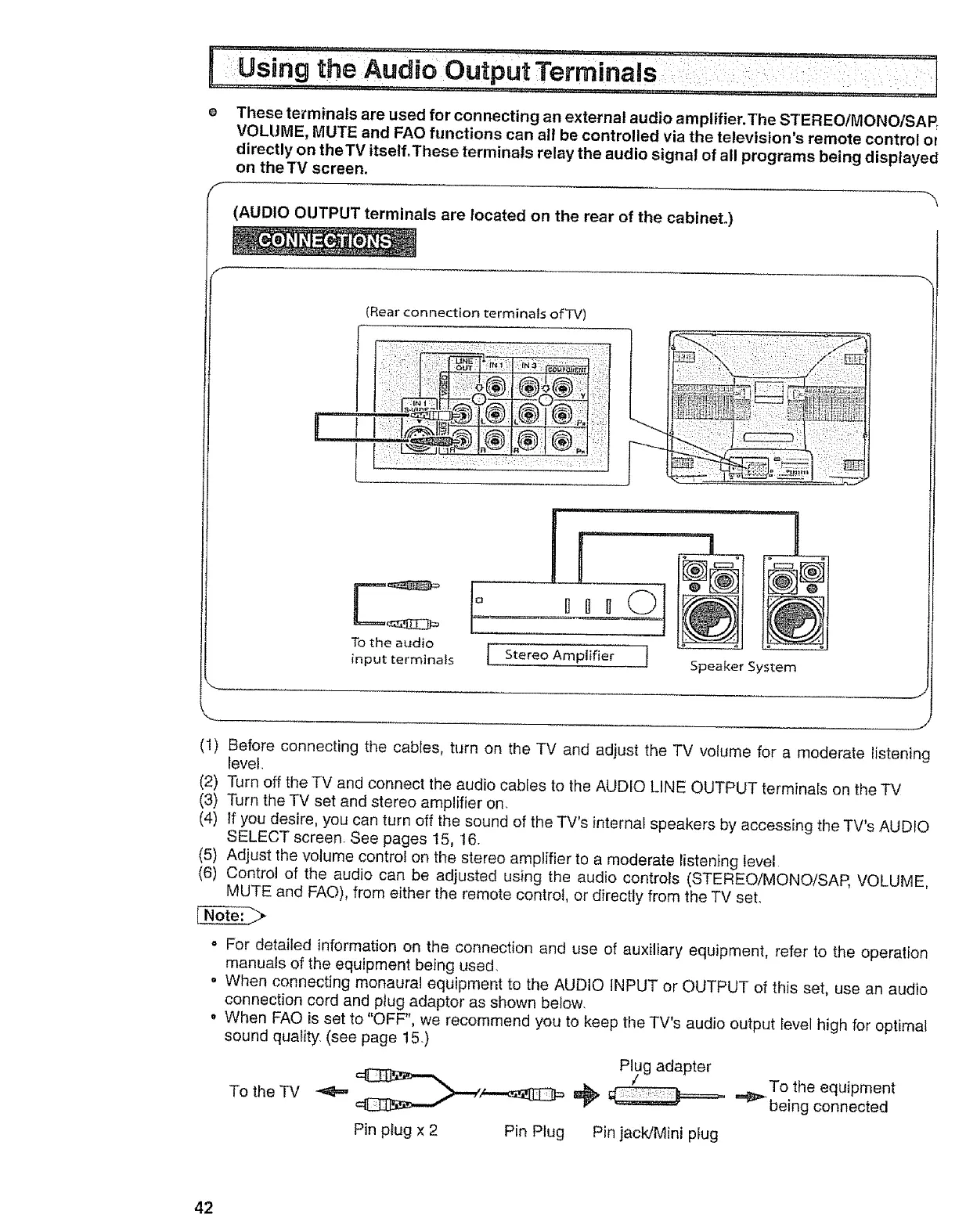

e These terminals are used for connecting an external audio amplifier.The STEREO/MONO/SAE
VOLUME, MUTE and FAO functions can all be controlled via the television's remote control or
directly on theTV itselfoThese terminals relay the audio signal of all programs being displayed
on theTV screen.
(AUDIO OUTPUT terminals are located on the rear of the cabinet.)
(Rear connection terminals of TV)
: :: : : := :
To the audio
input terminals
i i.i.Ull,U,,,, ui , __
I Stereo Amplifier .] Speaker System
(1) Before connecting the cables, turn on the TV and adjust the TV volume for a moderate listening
level.
(2) Turn off the TV and connect the audio cables to the AUDIO LINE OUTPUT terminals on the TV
(3) Turn the TV set and stereo amplifier on.
(4) if you desire, you can turn off the sound of the TV's internal speakers by accessing the TV's AUDIO
SELECT screen. See pages 15, 16.
(5) Adjust the volume control on the stereo amplifier to a moderate listening level
(6) Control of the audio can be adjusted using the audio controls (STEREO/MONO/SAP, VOLUME,
MUTE and FAO), from either the remote control, or directly from the TV seL
o For detailed information on the connection and use of auxiliary equipment, refer to the operation
manuals of the equipment being used
. When connecting monaural equipment to the AUDIO INPUT or OUTPUT of this set, use an audio
connection cord and plug adaptor as shown below.
, When FAO is set to "OFF", we recommend you to keep the TV's audio output level high for optimal
sound quality. (see page 15.)
Pl_g adapter
,=,,,_.To the equipment
To the TV _ _ being connected
Pin plug x 2
Pin Plug Pin jack/Mini plug
42
