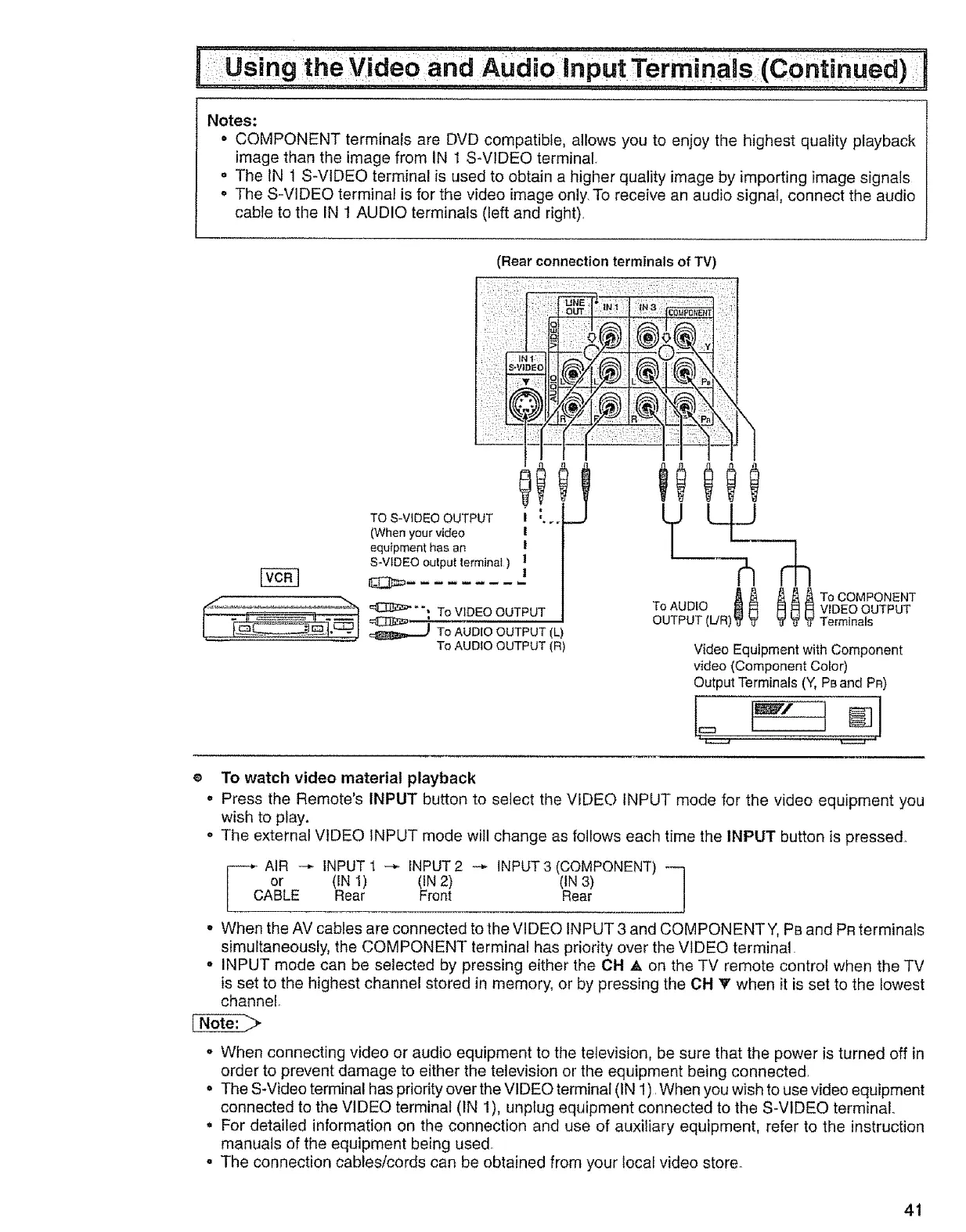

Notes:
• COMPONENT terminals are DVD compatible, allows you to enjoy the highest quality playback
image than the image from IN I S-VtDEO terminal.
- The IN 1 S-VIDEO terminal is used to obtain a higher quality image by importing image signals
o The S-VIDEO terminal is for the video image only.To receive an audio signal, connect the audio
cable to the IN 1 AUDIO terminals (left and right),
(Rear connectionterminals ofTV)
out ..........
43 :::::
"f:' .H -IJ t
TO S-VIDEO OUTPUT i ,..
(When your video I
equipment has an !
S-VIDEO output terminat )
"*, To VIDEO OUTPUT
_To AUDIO OUTPUT (L
To AUD!O OUTPUT (R
To AUDIO VIDEO OUTPUT
OUTPUT (L/R) _ Y_ Terminals
Video Equipmentwith Component
video(Component Color)
OutputTerminals(Y, PBand PR)
t
To watch video material playback
. Press the Remote's INPUT button to select the VIDEO INPUT mode for the video equipment you
wish to play.
° The external VIDEO INPUT mode wiil change as follows each time the INPUT button is pressed..
AIR --_ INPUT1(IN1) -_ fNPUT20N2) -'_ INPUT3 (COMPONENT)(IN3) --]
CABLE Rear Front Rear
• When the AV cables are connected to the VIDEO INPUT 3 and COMPONENT Y, PBand PR terminals
simultaneously, the COMPONENT terminal has priority over the VIDEO terminal
• INPUT mode can be selected by pressing either the CH _k on the TV remote control when the TV
is set to the highest channel stored in memory, or by pressing the CH _' when it is set to the Lowest
channel.
o When connecting video or audio equipment to the television, be sure that the power is turned off in
order to prevent damage to either the television or the equipment being connected,
o The S-Video terminal has priority over the VlDEO terminaI (IN 1) ,When you wish to use video equipment
connected to the VIDEO terminal (IN 1), unplug equipment connected to the S-VIDEO terminal
• For detailed information on the connection and use of auxiliary equipment, refer to the instruction
manuals of the equipment being used.
• The connection cables/cords can be obtained from your local video store
41
