Sharp 5P-27G User Manual

[12]
[13]
[14]
[15]
(16)
[17]
[18]
[20]
[21]

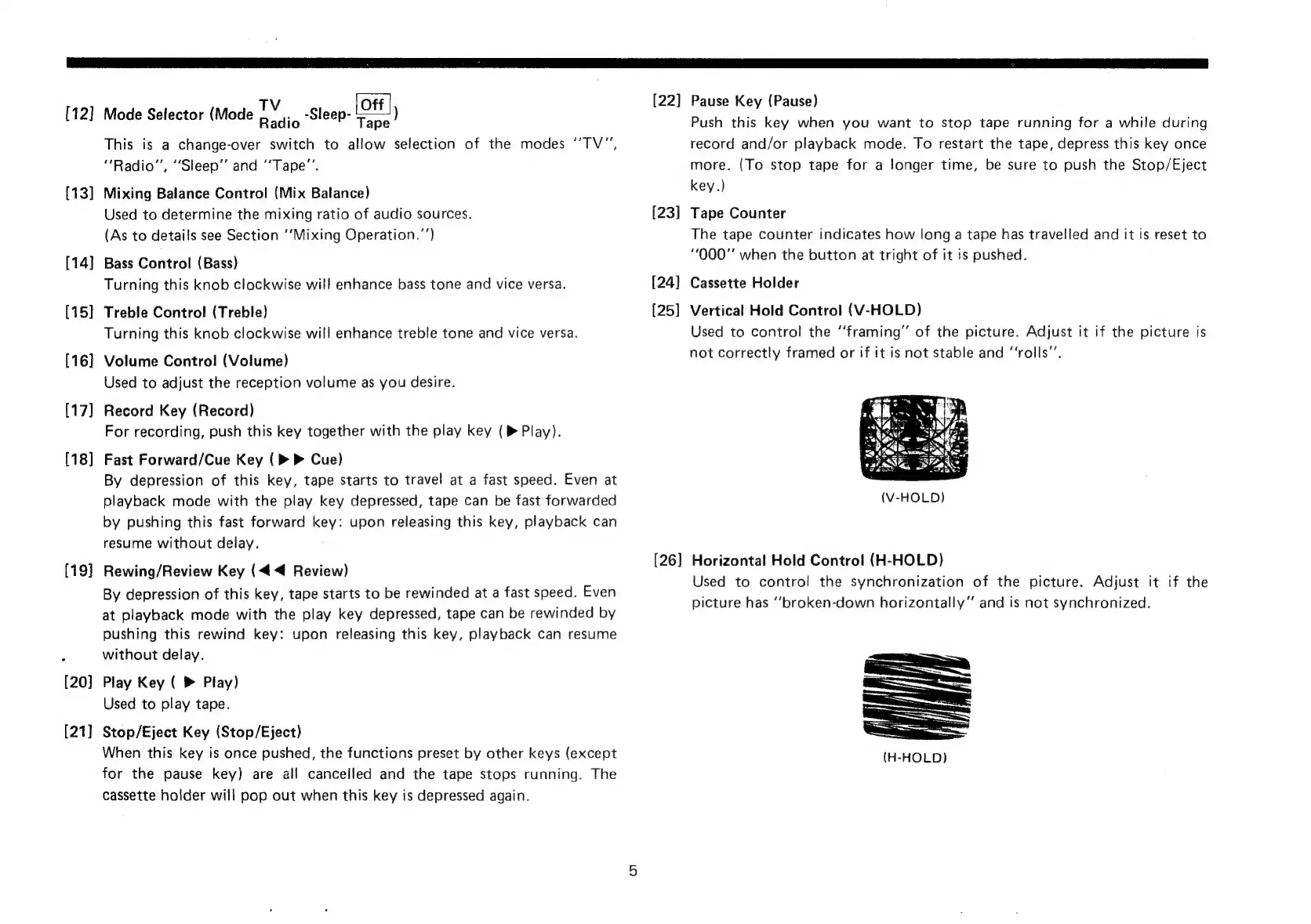

TV Off |
Mode Selector (Mode Radio -Sleep- Tape!
This is a change-over switch to allow selection of the modes “TV”,
“Radio”, “Sleep” and ‘’Tape’’.
Mixing Balance Control (Mix Balance)
Used to determine the mixing ratio of audio sources.
(As to details see Section ‘Mixing Operation.’’)
Bass Control (Bass)
Turning this knob clockwise will enhance bass tone and vice versa.
Treble Control! (Treble)
Turning this knob clockwise will enhance treble tone and vice versa.
Volume Control (Volume)
Used to adjust the reception volume as you desire.
Record Key (Record)
For recording, push this key together with the play key (> Play).
Fast Forward/Cue Key (> P Cue)
By depression of this key, tape starts to travel at a fast speed. Even at
playback mode with the play key depressed, tape can be fast forwarded
by pushing this fast forward key: upon releasing this key, playback can
resume without delay.
Rewing/Review Key (44 Review)
By depression of this key, tape starts to be rewinded at a fast speed. Even
at
playback
mode
with
the
play
key
depressed,
tape
can
be
rewinded
by
pushing this rewind key: upon releasing this key, playback can resume
without delay.
Play Key ( ® Play)
Used to play tape.
Stop/Eject Key (Stop/Eject)
When this key is once pushed, the functions preset by other keys (except
for the pause key) are all cancelled and the tape stops running. The
cassette holder will pop out when this key is depressed again.
Pause Key (Pause)
Push this key when you want to stop tape running for a while during
record and/or playback mode. To restart the tape, depress this key once
more. (To stop tape for a longer time, be sure to push the Stop/Eject
key.)
Tape Counter
The tape counter indicates how long a tape has travelled and it is reset to
“000” when the button at tright of it is pushed.
Cassette Holder
Vertical Hold Control (V-HOLD)
Used to control the “framing” of the picture. Adjust it if the picture is
not correctly framed or if it is not stable and ‘‘rolls’’.
(V-HOLD)
[26] Horizontal Hold Control (H-HOLD)
Used to control the synchronization of the picture. Adjust it if the
picture has “‘broken-down horizontally’ and is not synchronized.
(H-HOLD)
