40
70GS-64S
REF No. PARTS DESCRIPTION * SN CODE EX CODE
R 1704 VRS-TQ2BD564J RE OX 560KOHM 5% 1/8W SMD S AA AA
R 1705 VRS-TQ2BD564J RE OX 560KOHM 5% 1/8W SMD S AA AA
R 1706 VRS-TQ2BD564J RE OX 560KOHM 5% 1/8W SMD S AA AA
R 1707 VRS-TV1JD101J 2125 100 OHM 5% 1/10W SMD S AA AA
R 1708 VRS-TV1JD683J 2125 68KOHM 5% 1/10W SMD S AA AA
R 1709 VRD-RA2BE100J RES 10 OHM 5% 1/8W S AA AA
R 1710 VRN-VV3ABR47J MET FILM R .47 OHM 5% 1W S AA AA
R 1711 VRS-TV1JD103J 2125 10KOHM 5% 1/10W SMD S AA AA
R 1712 VRS-TV1JD622F 2125 6.2KOHM 1% 1/10W SMD S AA AA
R 1713 VRS-TQ2BD334F OX RE 330KOHM 1% 1/8W SMD S AA AA
R 1714 VRS-TQ2BD334F OX RE 330KOHM 1% 1/8W SMD S AA AA
R 1715 VRS-TQ2BD334F OX RE 330KOHM 1% 1/8W SMD S AA AA
DIODES
D 1701 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA
D 1702 RH-EX0558BMZZ ZENER DIODE TZMC18 TFK SMD S AA AA
D 1703 RH-DX0618BMZZ DIODE BYV28-600 VISHAY PREFOR 17.5MM S AA AE
MISCELLANEOUS PARTS
(PWA) QCNCM0672FCZZ CONN B2P3-VH JST S AA AB
FB 1701 RBLN-0080CEZZ BALUNE S AA AE
L 0006 QTIPM0017CEFM TIP S AA AA
MISCELLANEOUS PARTS
PMLT-1038BM00 SPACER 25X20X15 MM S AA AC
QCNW-2745BMZZ MAT WIRE OREGA 100463.20 S AA AH
QCNW-2746BMZZ FOCO WIRE OREGA 704030.54 S AA AC
QCNW-2747BMZZ G2 WIRE OREGA 578129.50 S AA AD
QCNW-2782BMZZ WIRE 3 WAYS (RGB) S AA AK
(FH) QCNW-2841BMZZ WIRE 4 WAYS FH DA100 4:3 S AA AG
(K) QCNW-2773BMZZ MANGUERA (K) S AA AH
(PW) QCNW-2868BMZZ POWER SUPPLIER WIRE PFC PWA S AB AF
FB 0001 RCORF0002BMZZ FERRITE CORE TFC-16816EX S AF AK
L 0006 QCNW-2861BMZZ WIRE WROUND DOUBLE AISOLATION S AA AD
QCNW-2661BMZZ CON W (4)WAYS S AA AH
PCAPH1500BMN1 SWITCH COVER S AA AB
RCORF2064XHZZ FERRIT TRA31 S AA AD
UBATU0247AJZZ BATTERY R6(X2) S AE AH
QACCZ2100BMSA AC CORD S AH AR
RRMCG1071BMSA R/C CA-10 HOSIDEN S AS AW
VSP1206PB617A SPAEAKER 7 OHM 12x6CM SEA TRADE ELECTRON S AE AN
OWNERS MANUALS
TINS-6974BMN1 OWNERS MANUAL 70GS64SDE S AB AG
TINS-6977BMN0 OWNERS MANUAL 70GS64SIT S AD AM

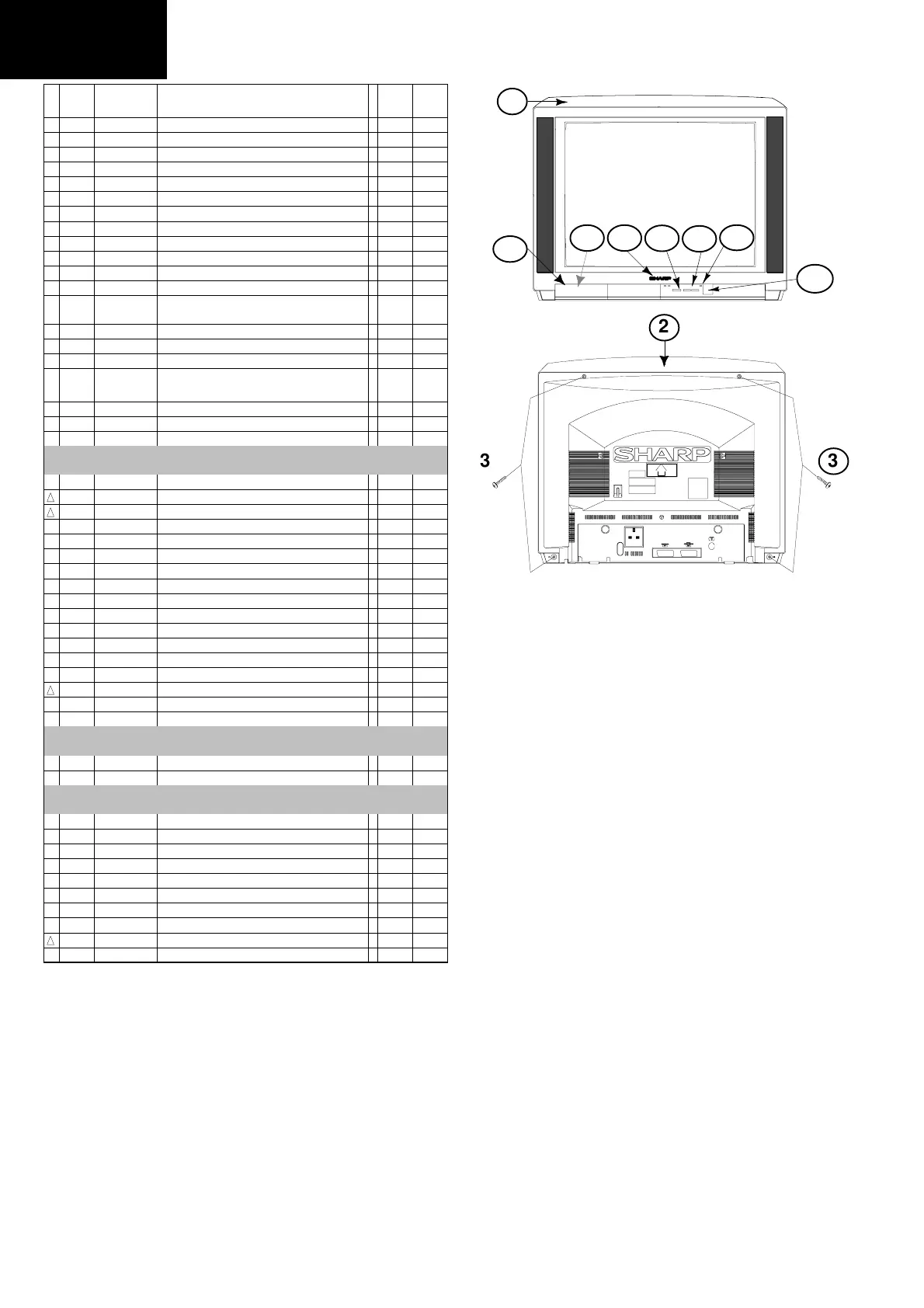

CABINET PARTS
1 CCABA1310BMV1 CABINET SET+ELEC ASS 70GS64S S -- --
1.1 GDORF1053BMSC DOOR S AA AD
1.2 PKAI-1083BM00 DOOR LATCH S AC AF
1.3 HBDGB3013MESB BADGE S AC AH
1.4 HDECQ0041BMSA LED DECORATION(70ES-03S) S AA AB
1.5 HDECQ0042BMSA R/C DECORATION(70ES-03S) S AA AC
1.6 JBTN-1053BMSC UP/DOWN BUTTON S AA AD
1.7 JBTN-1052BMSC POWER BUTTON S AA AD
2 GCABB1083BMKA CAB-B(70ES-04S) S AA BA
3 XTASB40P20000 REAR CABINET SCREWS S AA AA
1
1.3
1.7
1.5
1.1
1.2
1.6
1.4
2
3 3
