Sharp AE-X127E - Performance Curves

AH-X127E
AU-X127E
AY-X127E
AE-X127E
34

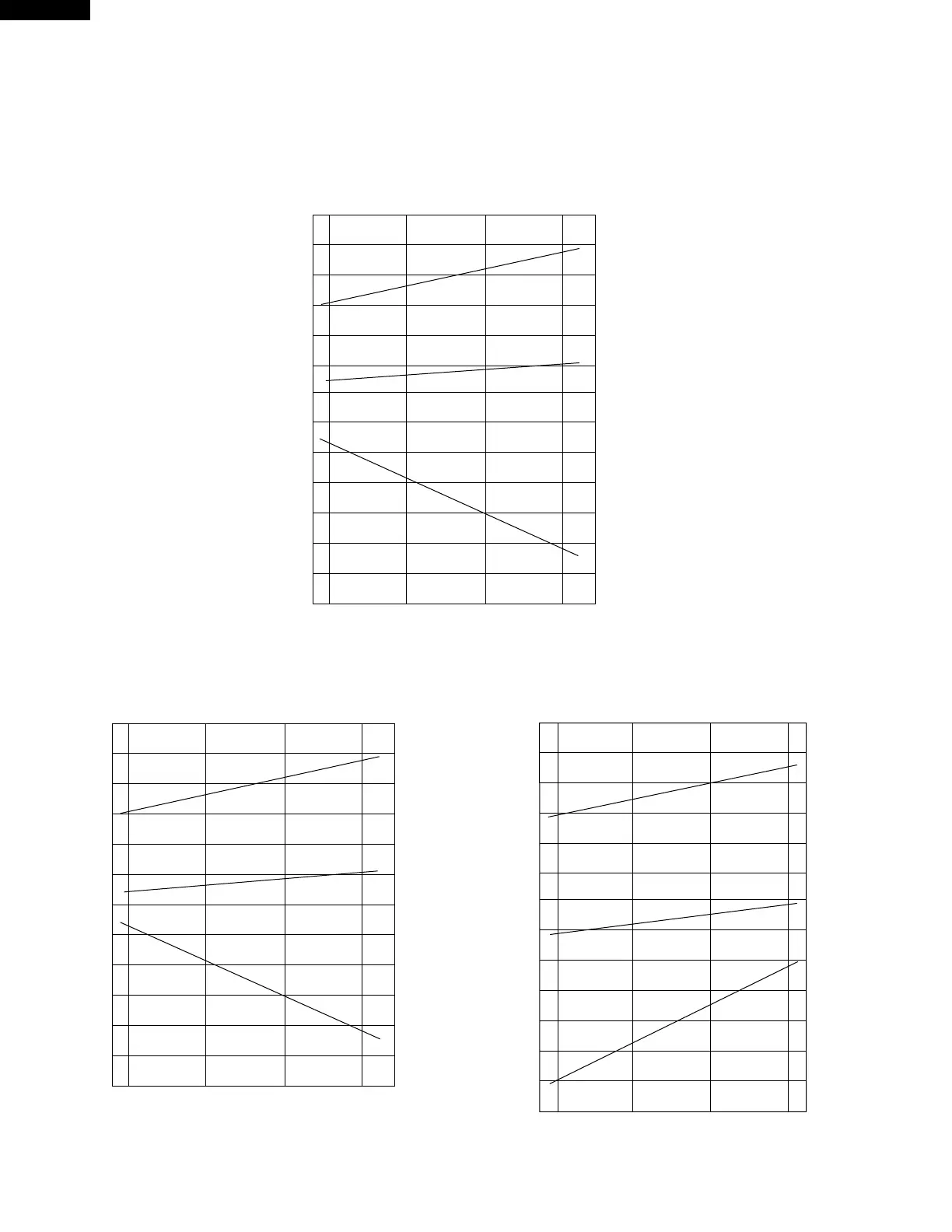

PERFORMANCE CURVES
25 30 35 40
3.1
3.3
3.5
3.7
3.9
10
12
14
1200
1400
1600
1800
Cooling capacity(kW)
Outside air temp.(˚C)
Input(W)
Outlet air temp.(˚C)
1) Indoor fan speed: Hi
2) Vertical adjustment louver "45˚", Horizontal adjustment louver "front" 
3) Indoor air temp. : Colling 27˚C
NOTE:
(Running frequency: 99HZ)
Figure P-1. At Cooling for AH-X127E
25 30 35 40
3.1
3.3
3.5
3.7
3.9
10
12
14
1200
1400
1600
1800
(Running frequency: 99Hz)
Cooling capacity(kW)
Outside air temp.(˚C)
Input(W)
Outlet air temp.(˚C)
-5 0 5 10
3.0
3.5
4.0
4.5
4.7
35
40
45
1200
1400
1600
1800
(Running frequency: 102Hz)
Heating capacity(kW)
Outside air temp.(˚C)
Input(W)
Outlet air temp.(˚C)
Figure P-3 At Heating for AY-X127EFigure P-2 At Cooling for AY-X127E
