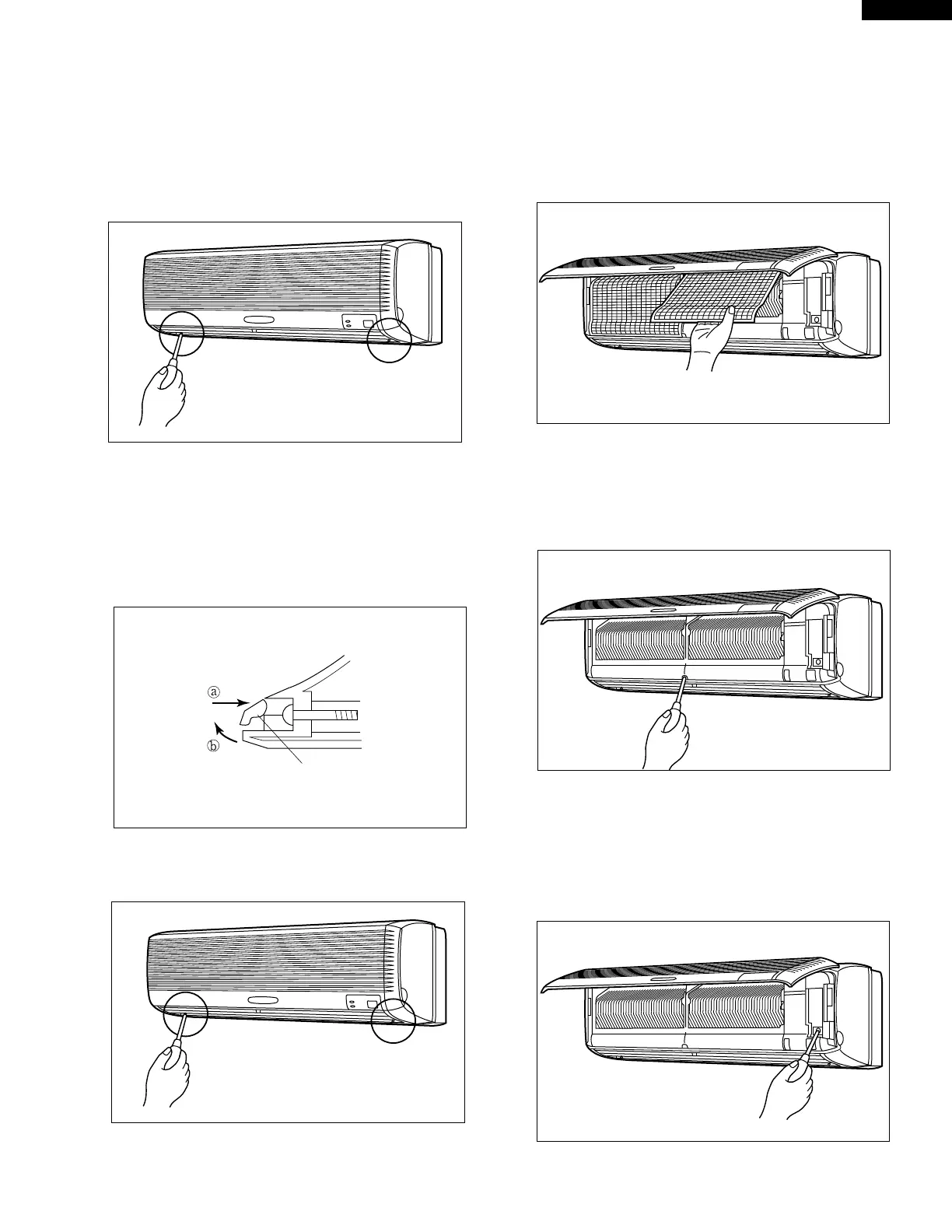

DISASSEMBLING PROCEDURE
FOR INDOOR UNIT MODEL AH-X127E AND AY-X127E
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
1. Using the narrow slotted screwdriver or similar, remove
the screw cover from the front panel.
3. Open the open panel, and remove the two air filters.
How to remove the screw cover
a. Press the top of the screw cover with the flat-tipped
screwdriver (or nail, etc).
b. Insert the flat-tipped screwdriver (or nail, etc) into the
lower clearance, and pull and lift it toward you for
removal.
2. Remove two screws from the front panel.
5. Remove the fastening screw which retains the cable,
and remove the cord.
Note: During reassembly, install the holder after
installing the front panel. This will make it easier
to assemble the front panel.
4. Remove one inner screw.
Note: During reassembly, don’t tighten the screw
strongly, or it will become idle.
To Next Page
