DISASSEMBLING PROCEDURE
FOR INDOOR UNIT [AY-XP08CE/AY-XP10CE/AY-XP13CE]
CAUTION : DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING

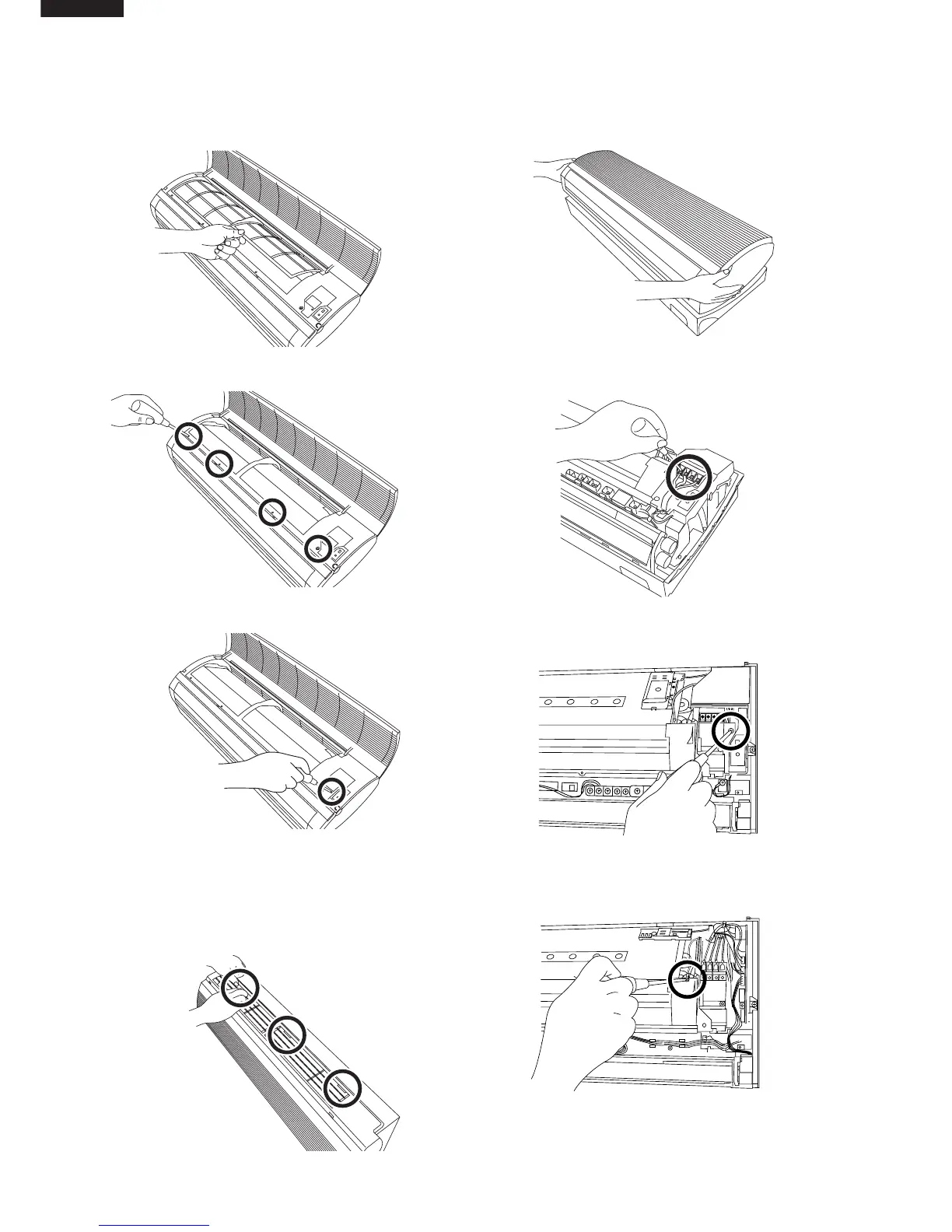

1. Open the opne panel, and remove 2 air filters.
2. Remove 4 screws fixing the front panel.
3. Remove the screw fixing the cord clamp.
Note :
During reassembly, install the holder after installing the
front panel. This will make it
easier to assemble the front panel.
4. Close the open panel. Pushing the nail of the front
panel.
5. Pull the front panel up.
6. Remove the unit-to-unit wiring from the terminal
board.
7. Remove a screw fixing the control box cover, and
remove it.
8. Remove 2 screws fixing the 2 ground wires and
terminal.
Note :
During reassembly, take care direction of the lead wires.
To Next Page
