AE-XM30GR
5 – 5

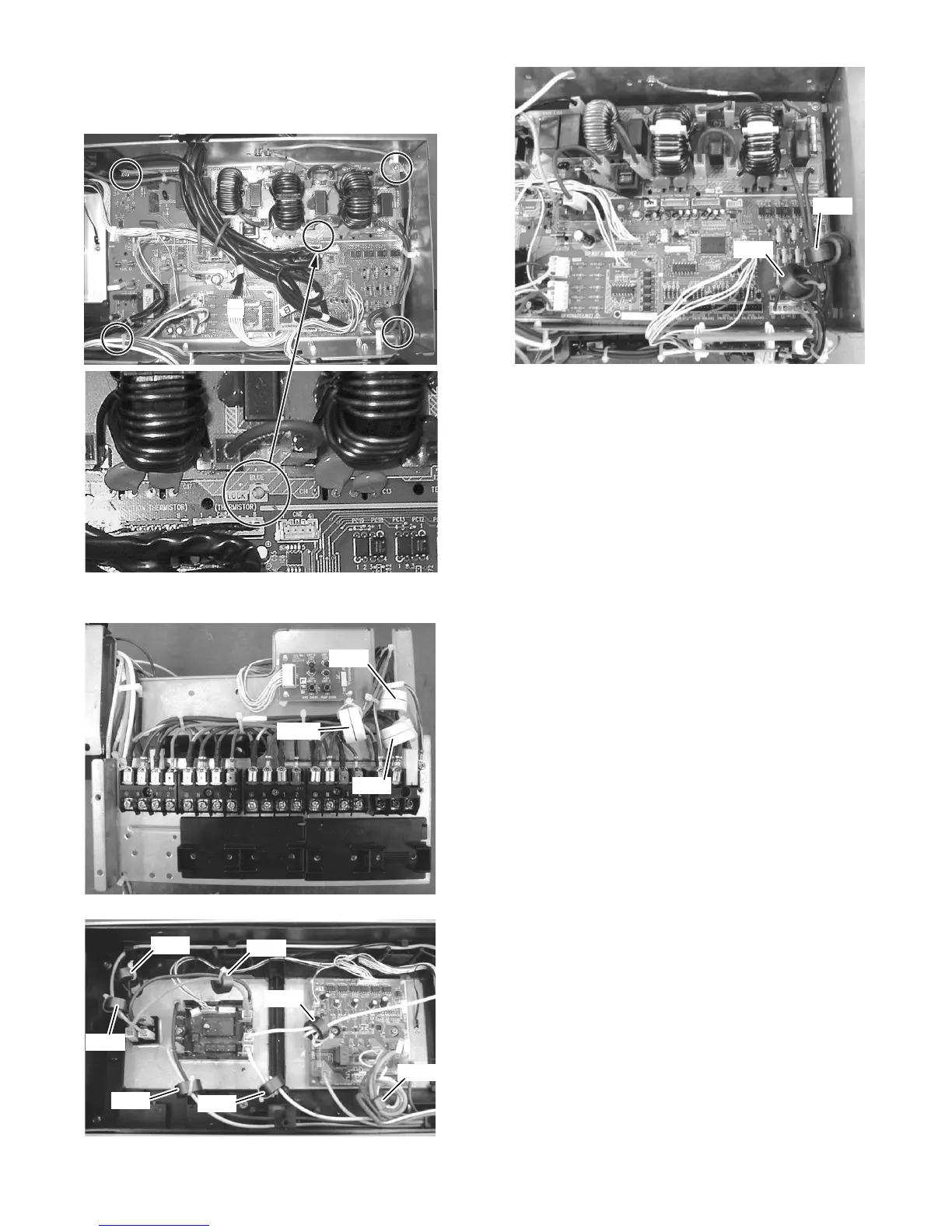

3. How to disassemble the control box assembly
1. Remove the 4 screws fixing the PWB.
2. Unlock the spacer's lock.
The position of setting Ferrite core (FC1 – FC12)
FC10
FC11
FC12
FC7
FC5
FC2
FC6
FC3
FC8
FC1
FC4
FC9
