4. Mounting position of thermistors and expansion valves

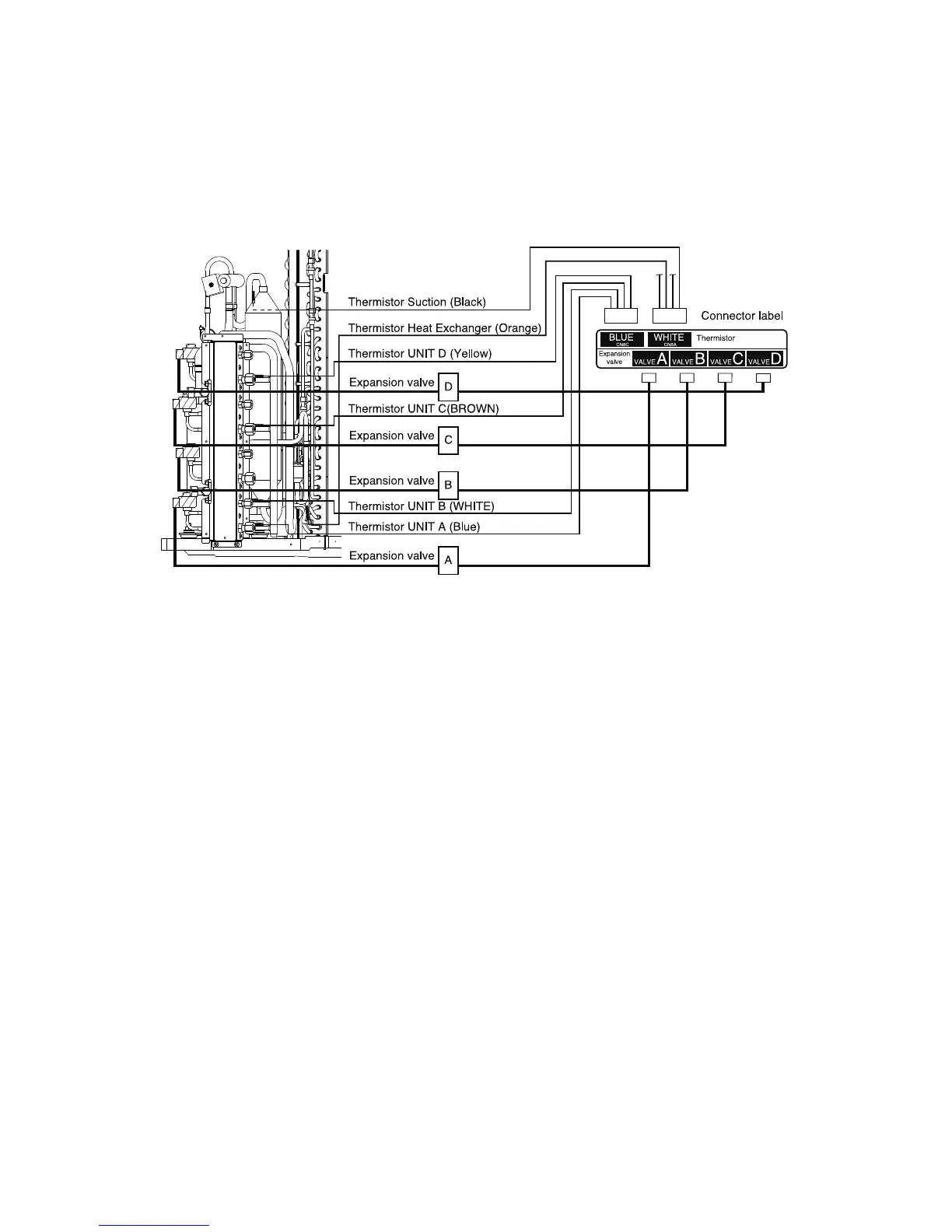

Mounting position of thermistors and expansion valves are shown below.
Thermistor
• Check the cord color of thermistor before mounting.
• Thermistor Suction, UNIT A, UNIT B, UNIT C and UNIT D are mounted on GAS side pipes.
• Thermistor Heat exchanger is mounted on LIQUID side pipe.
Expansion valve
• Check the labels before connecting to the Control Board Unit.
CAUTION: Mismounting and misconnecting will cause error or failure.
