6
AF-05CML
Closure assembly
(Left)
Jamb
(Left)
Indoor
side
Sill
1
/2 inches
(13mm)
Stool
Closure assembly
(Left)
Indoor
side
Top angle

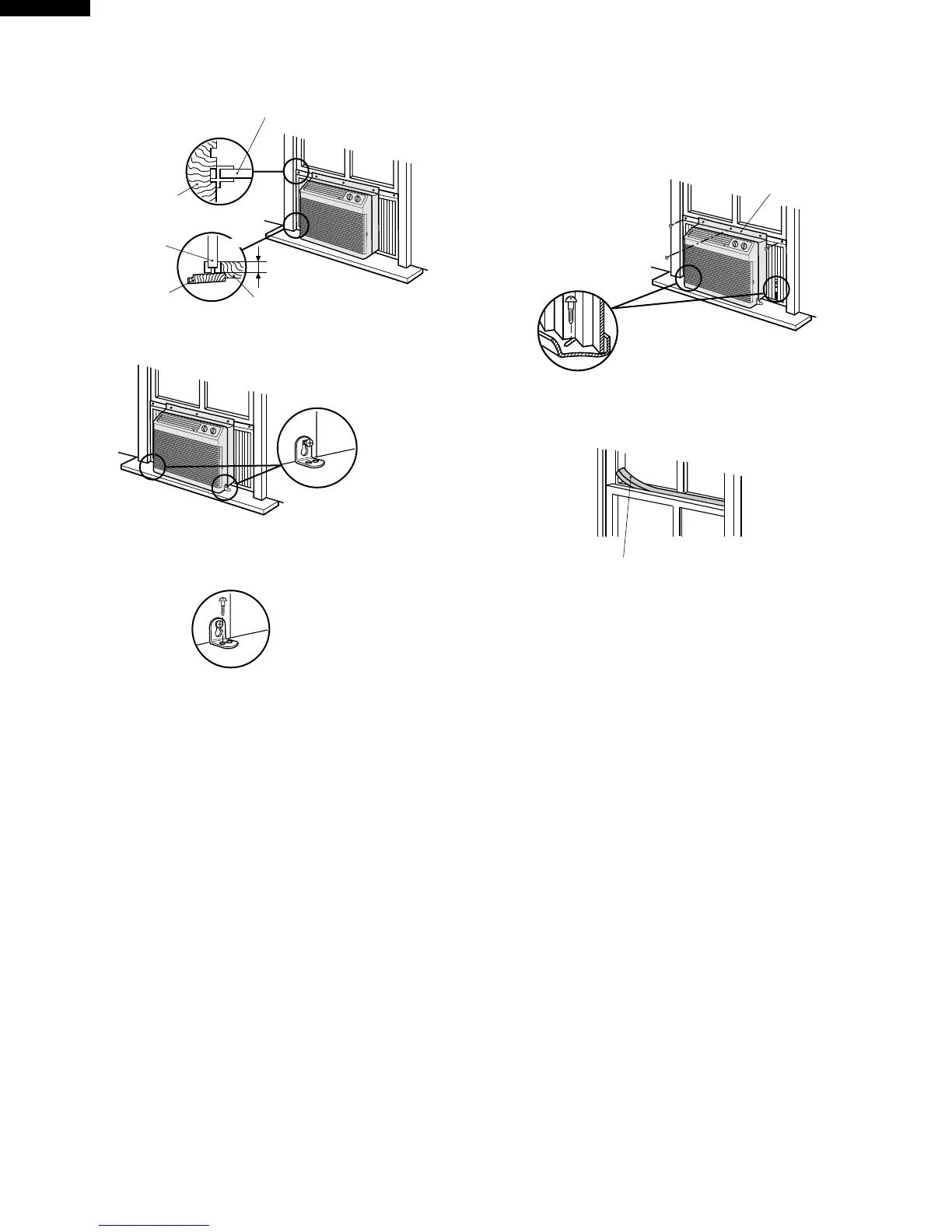

5. Insert the closure assemblieson both sides into the
rails of the jamb.
6. Loosen screws on both sides of the cabinet, then hang
the base pan angle on and secure the screws again.
7. Secure the base pan angle to the sill by using the hole
of the front side on the angle with one screw.
(L=1",25.4mm)
8. Secure the top angle of the unit and the top of the
closure assemblies to the sash with three of the
provided screws. (L=1",25.4mm)
And secure the bottom of the closure assemblies to
the sill with two of theprovided screws.
(L=1",25.4mm)
9. Cut the window sash foam seal to the proper length
and seal the opening between the top of the inside
window sash and the outside window sash.
To Next Page
