AF-05CML

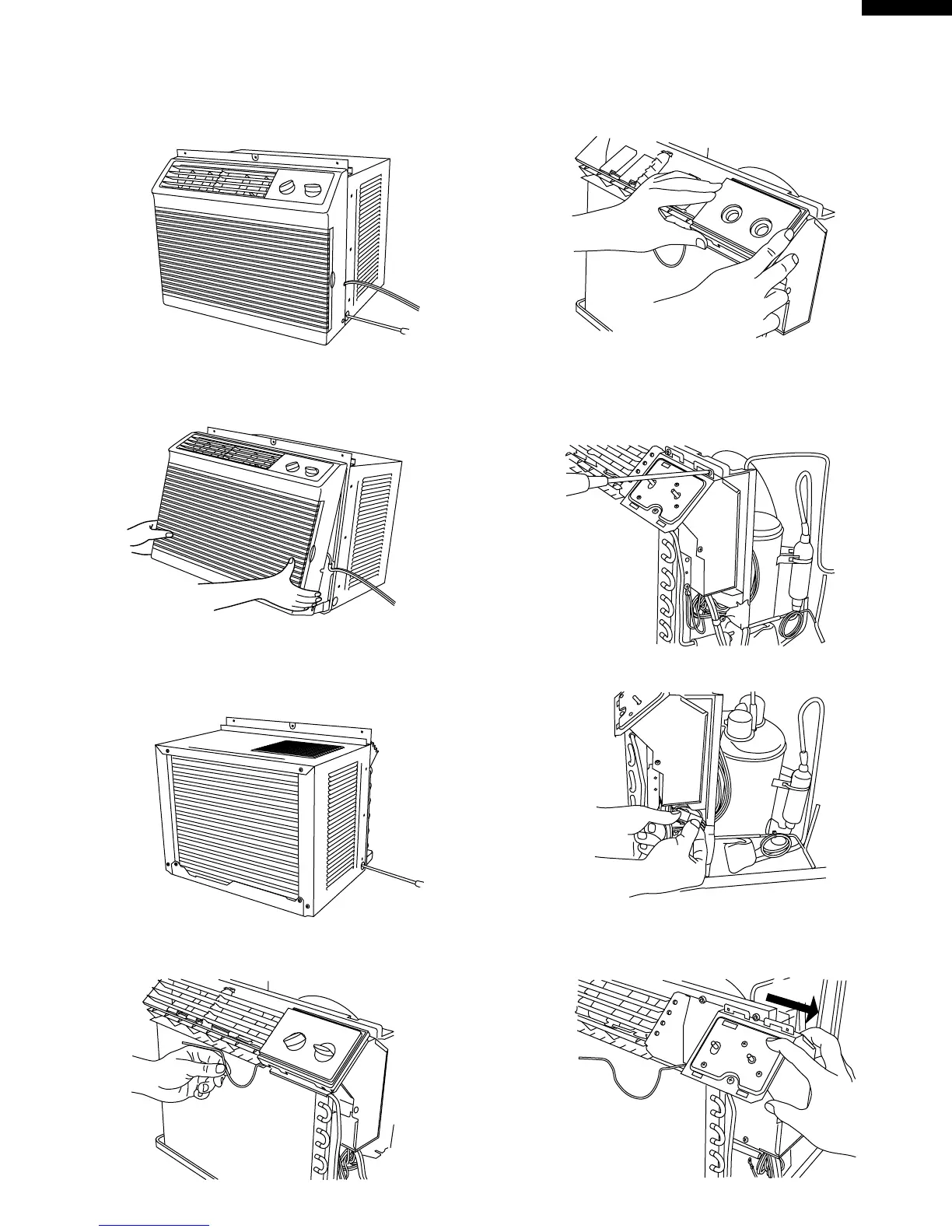

DISASSEMBLING PROCEDURE
1. Unscrew the 2 screws holding the front panel on each
side.
2. Remove the front panel by pulling the front panel at the
lower corner toward you about one inch.
Next lift up and pull it toward you.
3. Unscrew the 9 screws holding the cabinet.
2 screws are on each side.
4 screws are on back side.
3 screws are on top side.
4. Remove the thermostat.
5. Remove the control knob and control panel.
6. Unscrew the 5 screws.
3 screws are holding the control box at the top and right
side.
1 screw is holding the power supply cord.
1 screw each screw on the evaporator.
7. Take off the fan motor connector.
8. Cut the wire fixing band, slide the control box rightward
and remove.
SLIDE
